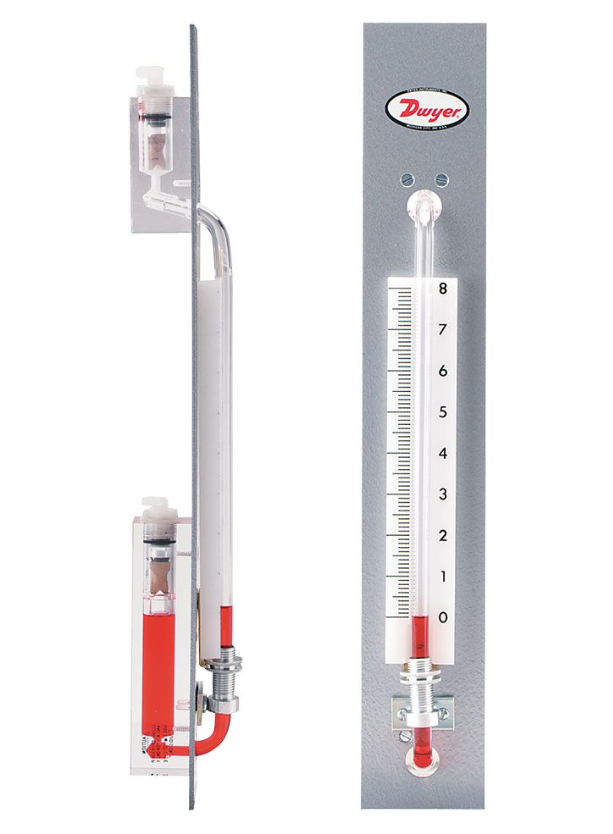

Dwyer 1235-12-W/M | Panel Mount Well-Type Manometer | 0-12" w.c., 14 oz Mercury
Reading 0-12 in w.c. on a single column, the Dwyer 1235-12-W/M is a panel mount Flex-Tube well-type manometer filled with water or mercury and needs 14 oz of mercury. The 1235-12-W/M gives direct readings of positive, negative or differential pressure.
- 1235-12-W/M range 0-12 in w.c.
- Indicating fluid for the 1235-12-W/M: water or mercury (14 oz mercury required)
- Pressure rating 100 psig (6.89 bar) for the 1235-12-W/M; avoid vacuum service past 5 in Hg (68 in w.c.)
- 1235-12-W/M safety traps keep fluid in under over-pressure
- 1235-12-W/M: clear shatter-proof tubing cemented to a machined acrylic well, without packing glands
- 1235-12-W/M scale zeroes with a quick, positive adjustment mechanism
- Specifications
- Features
- Downloads
| Part Number | 1235-12-W/M |
| Brand | Dwyer |
| Series | 1235 Flex-Tube |
| Type | Well-type, single column |
| Range | 0-12" w.c. |
| Weight | 1.00 lb |
| Fluid | Water/mercury |
| Pressure Rating | 100 psig (6.89 bar) |
| Mounting | Panel mount |
| Mercury Required | 14 oz |
- High-precision pressure gauge appropriate for use in labs or across the general industry.
- The highest criteria are met by the precision-built equipment.
- Without moving parts, there is no need for calibration or wear and tear.
- An over-pressure trap keeps fluids from escaping the gage, which keeps things from breaking down.
