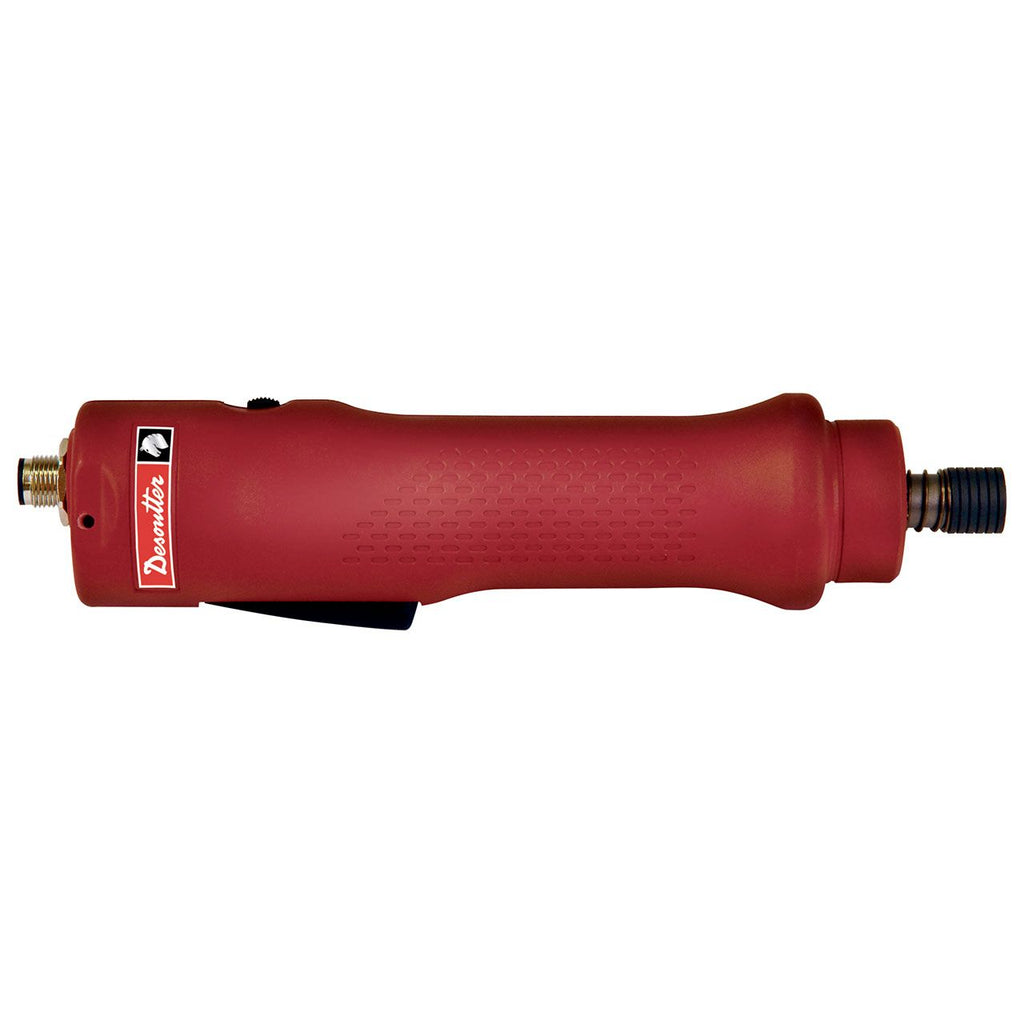

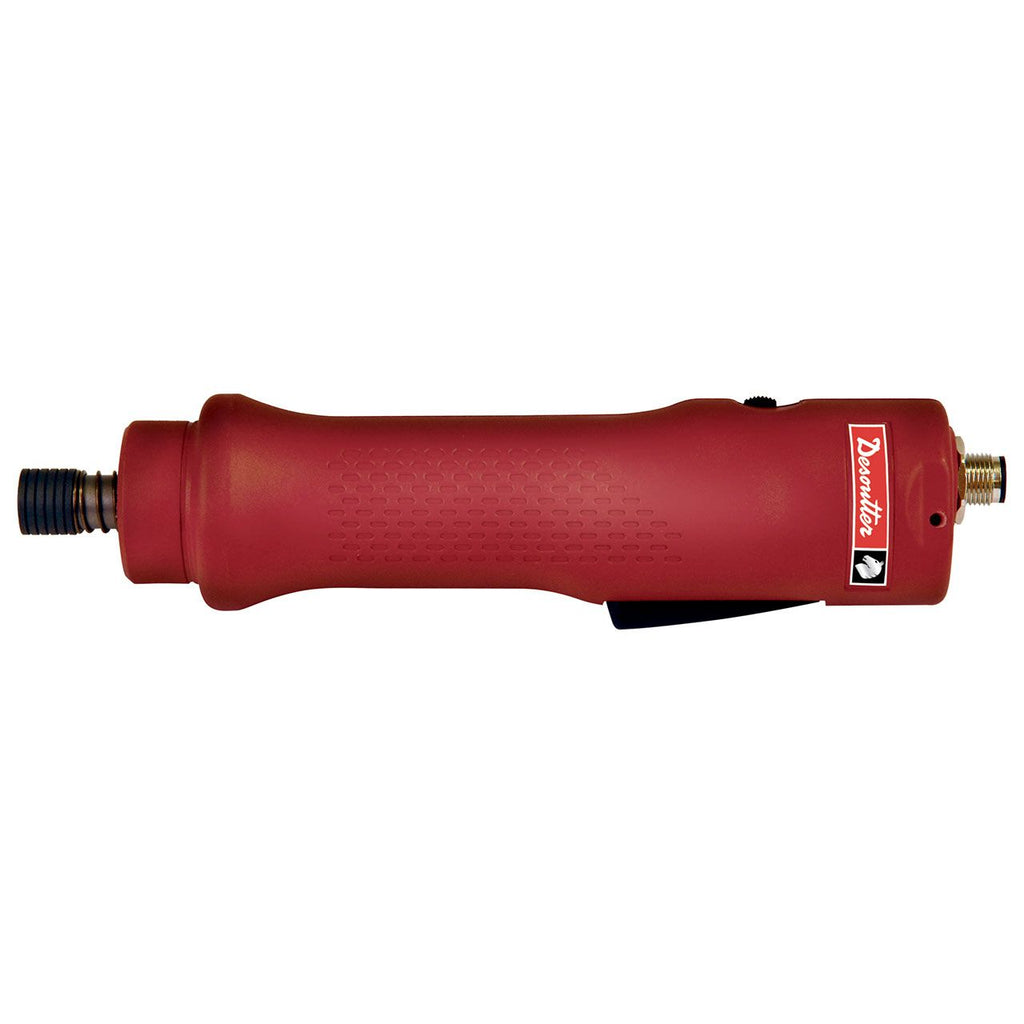

Desoutter SLC150-L320-C4Q | Low Voltage Current Control In-Line Screwdriver | 15 Nm, 320 rpm, 1/4 in Hex
Desoutter part 6151654670, the SLC150-L320-C4Q, covers up to 15 Nm and runs at 320 rpm free speed on a 1/4 in Hex output. Part of the SLC low voltage range, the SLC150-L320-C4Q is a multi-torque current control tool designed with operator comfort in mind. Weighing 0.5 kg, the SLC150-L320-C4Q is 201.8 mm long and uses lever start.
Key features
- The SLC150-L320-C4Q suits simple through to advanced applications
- Reversible operation on the SLC150-L320-C4Q 1/4 in Hex drive
- Sound power <70 dB(A) and vibration <2.5 m/s² on the SLC150-L320-C4Q
- Speed adjustment is possible on the SLC150-L320-C4Q
- Homogeneous fastening solution for assembly lines using the SLC150-L320-C4Q
- Specifications
- Downloads
| Part Number | 6151654670 |
| Model | SLC150-L320-C4Q |
| Brand | Desoutter |
| Tool type | Inline |
| Max torque in forward | 15 Nm (11.1 ft.lbf) |
| Free Speed | 320 rpm |
| Output drive type | Hex |
| Output drive size (in) | 1/4 |
| Torque Control System | Shut-off-current control |
| Starting system | Lever |
| Length (L) | 201.8 mm (7.94 in) |
| Weight | 0.5 kg (1.1 lb) |
| Reversible | Yes |
| Sound Power (dba) | <70 |
