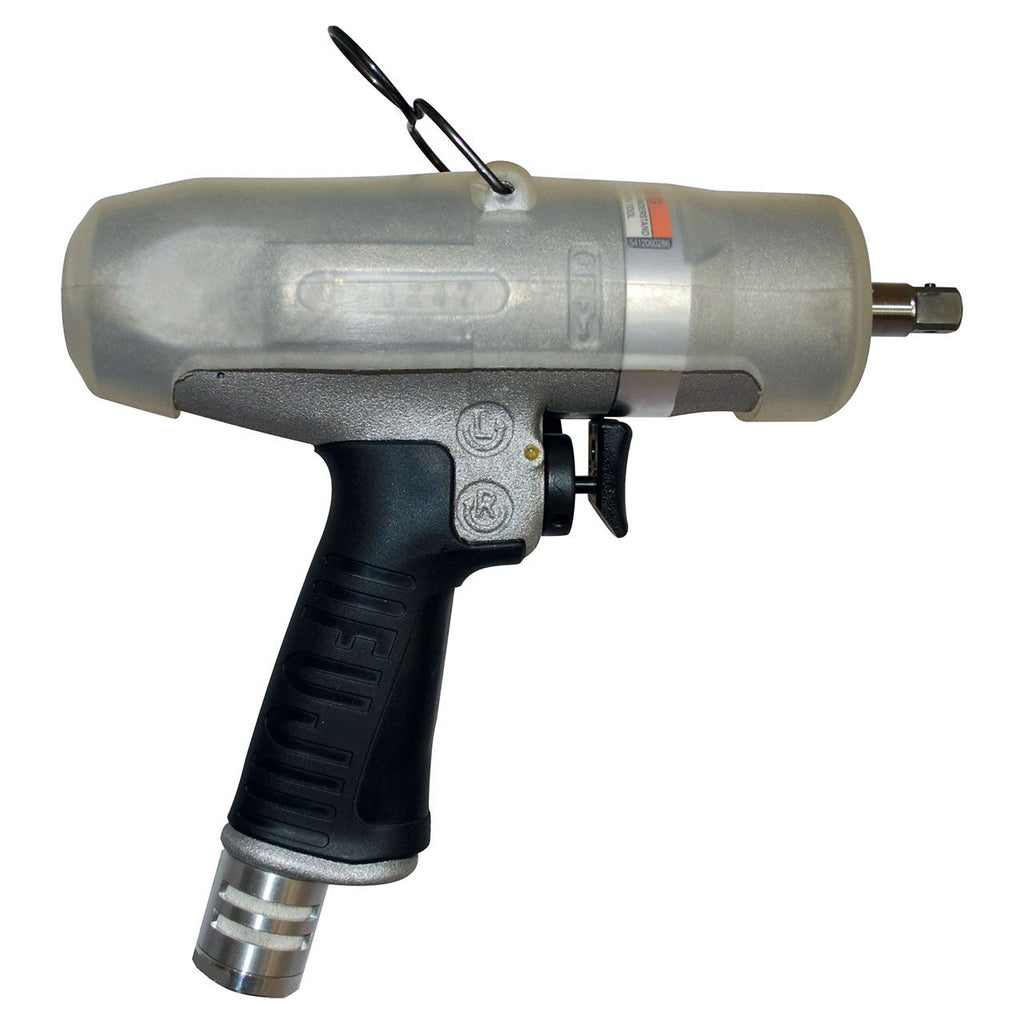

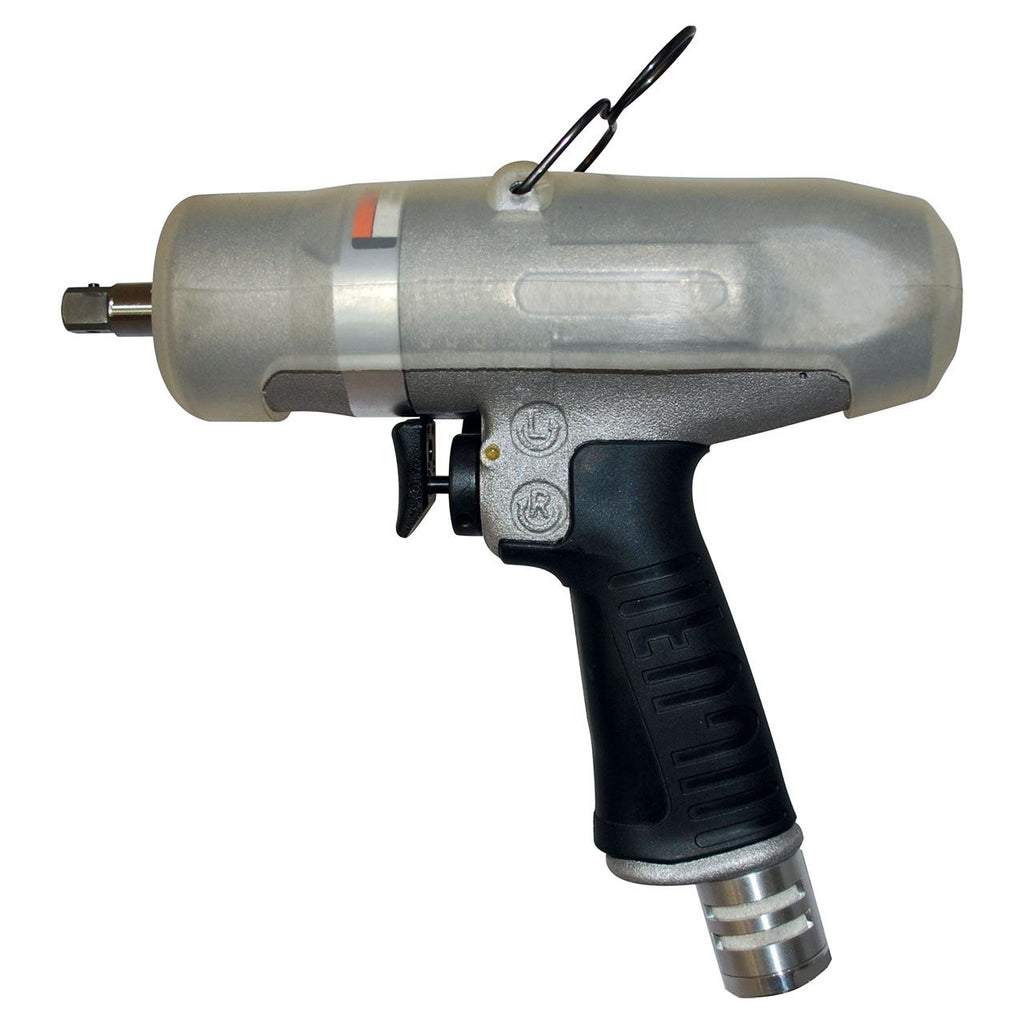

Desoutter PTF060-T6100-S10S 3/8 | Shut-off Pneumatic Pistol Pulse Tool | 30-60 Nm, 6100 rpm
Offering a torque range of 30 to 60 Nm and a free speed of 6100 rpm, the Desoutter PTF060-T6100-S10S 3/8 (part no. 6151720880) is a shut-off pneumatic pistol pulse tool. Desoutter catalogues the PTF060-T6100-S10S 3/8 in its PTF - Pulse Tool range within Pneumatic Tightening Tools (Pulse Tools). In size, the PTF060-T6100-S10S 3/8 is 189.5 mm (7.46 in) long and stands 169 mm (6.65 in) high.
Key features
- PTF060-T6100-S10S 3/8: trigger-started pistol design
- Torque control by shut-off pneumatic valve (PTF060-T6100-S10S 3/8)
- Reversible operation on the PTF060-T6100-S10S 3/8
- Air supply for the PTF060-T6100-S10S 3/8: uses 10 l/s (21 cfm) of air under load
- Specifications
- Downloads
| Part Number | 6151720880 |
| Model | PTF060-T6100-S10S 3/8 |
| Brand | Desoutter |
| Tool type | Pistol |
| Min torque in forward | 30 Nm (22.1 ft.lbf) |
| Max torque in forward | 60 Nm (44.3 ft.lbf) |
| Free Speed | 6100 rpm |
| Torque Control System | Shut-off-pneumatic valve |
| Reversible | Yes |
| Starting system | Trigger |
| Air consumption at load | 10 l/s (21 cfm) |
| Length (L) | 189.5 mm (7.46 in) |
| Height (H) | 169 mm (6.65 in) |
| Energy type | Pneumatic |
