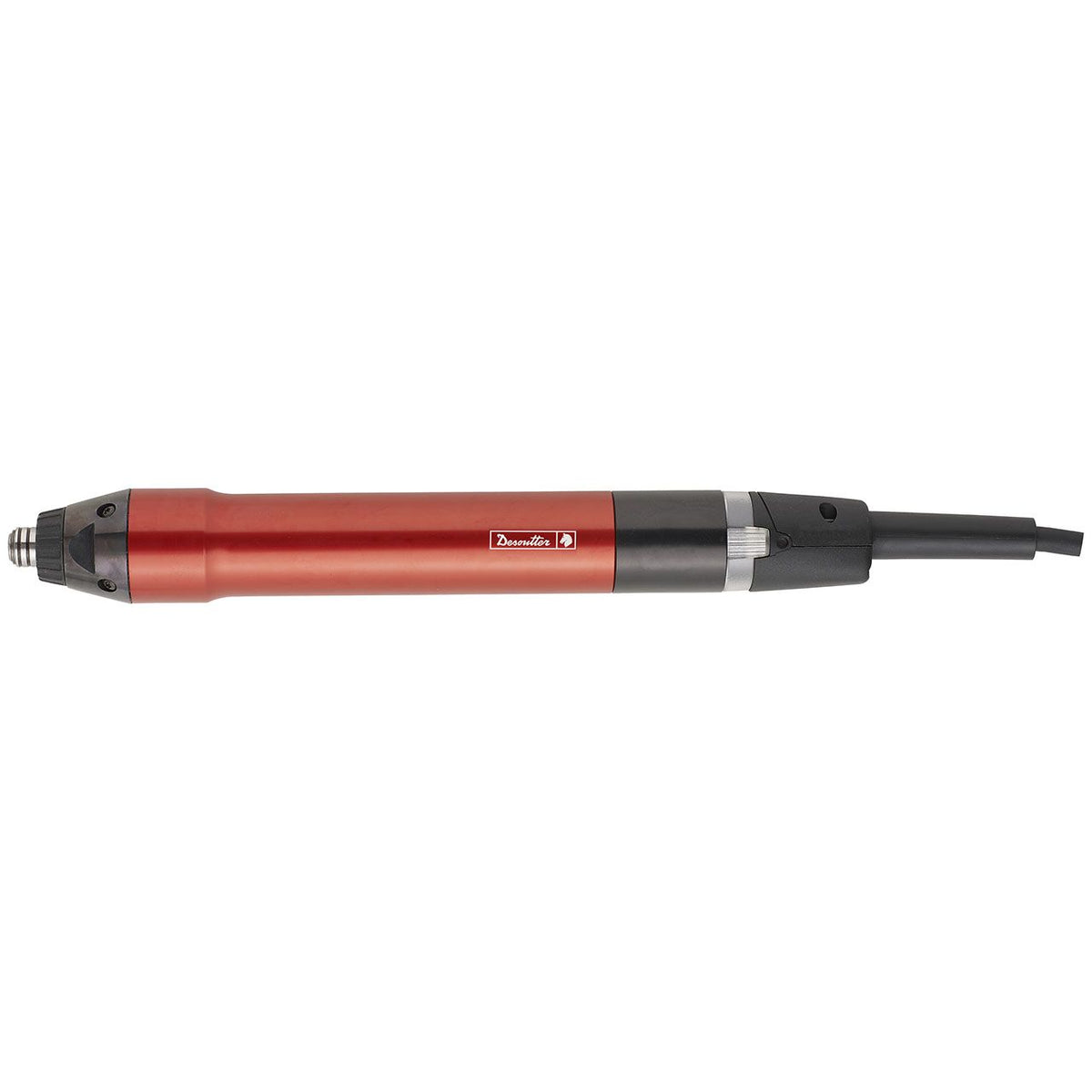

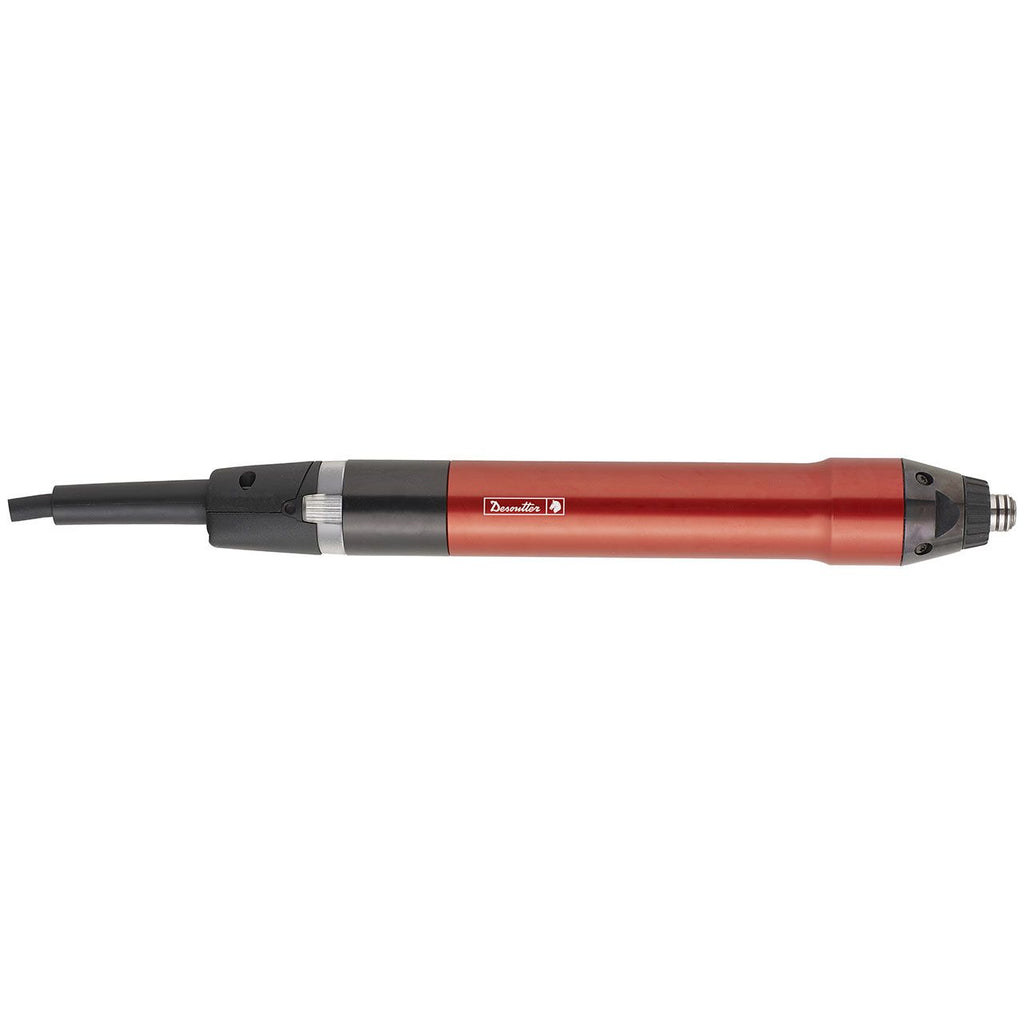

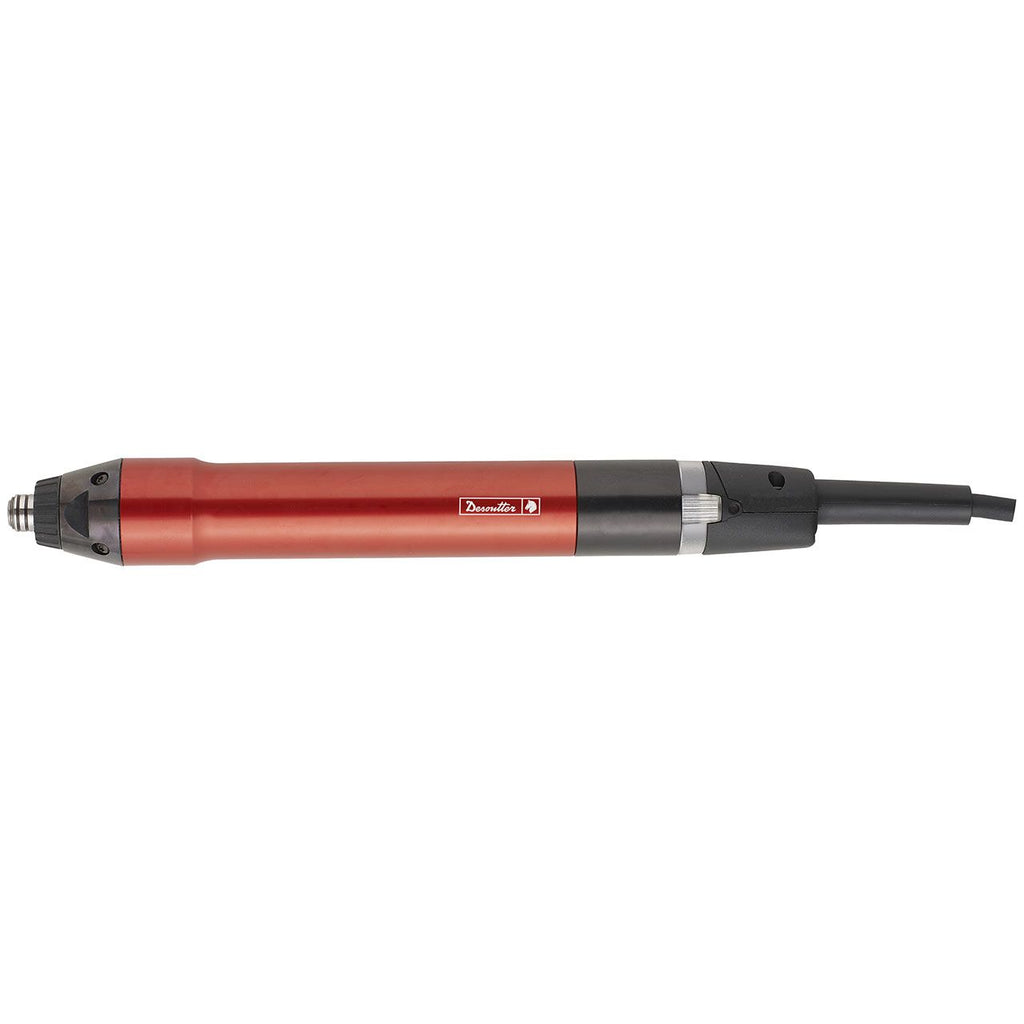

Desoutter ERSF6 | Transducerized Fixtured Electric Screwdriver | 6 Nm, 1720 rpm, 1/4 in Hex
Desoutter part 6151656950, the ERSF6, covers up to 6 Nm and runs at 1720 rpm free speed on a 1/4 in Hex output. Within the ERS range, the ERSF6 offers transducer-based tightening backed by an angle sensor and brushless motor. This ERSF6 reference has no on-tool start device, measures 299 mm and weighs 0.7 kg.
Key features
- Torque and angle control on the ERSF6 supports consistent tightening quality
- Reversible operation on the ERSF6 1/4 in Hex drive
- Sound power of <70 dB(A) on the ERSF6
- Four coloured LEDs give the operator direct feedback from the ERSF6
- Extensive communication options support automation with the ERSF6
- Built-in transducer and software give the ERSF6 multiple tightening possibilities
- Specifications
- Downloads
| Part Number | 6151656950 |
| Model | ERSF6 |
| Brand | Desoutter |
| Tool type | Inline |
| Max torque in forward | 6 Nm (4.4 ft.lbf) |
| Free Speed | 1720 rpm |
| Output drive type | Hex |
| Output drive size (in) | 1/4 |
| Torque Control System | Shut-off-transducer |
| Starting system | None |

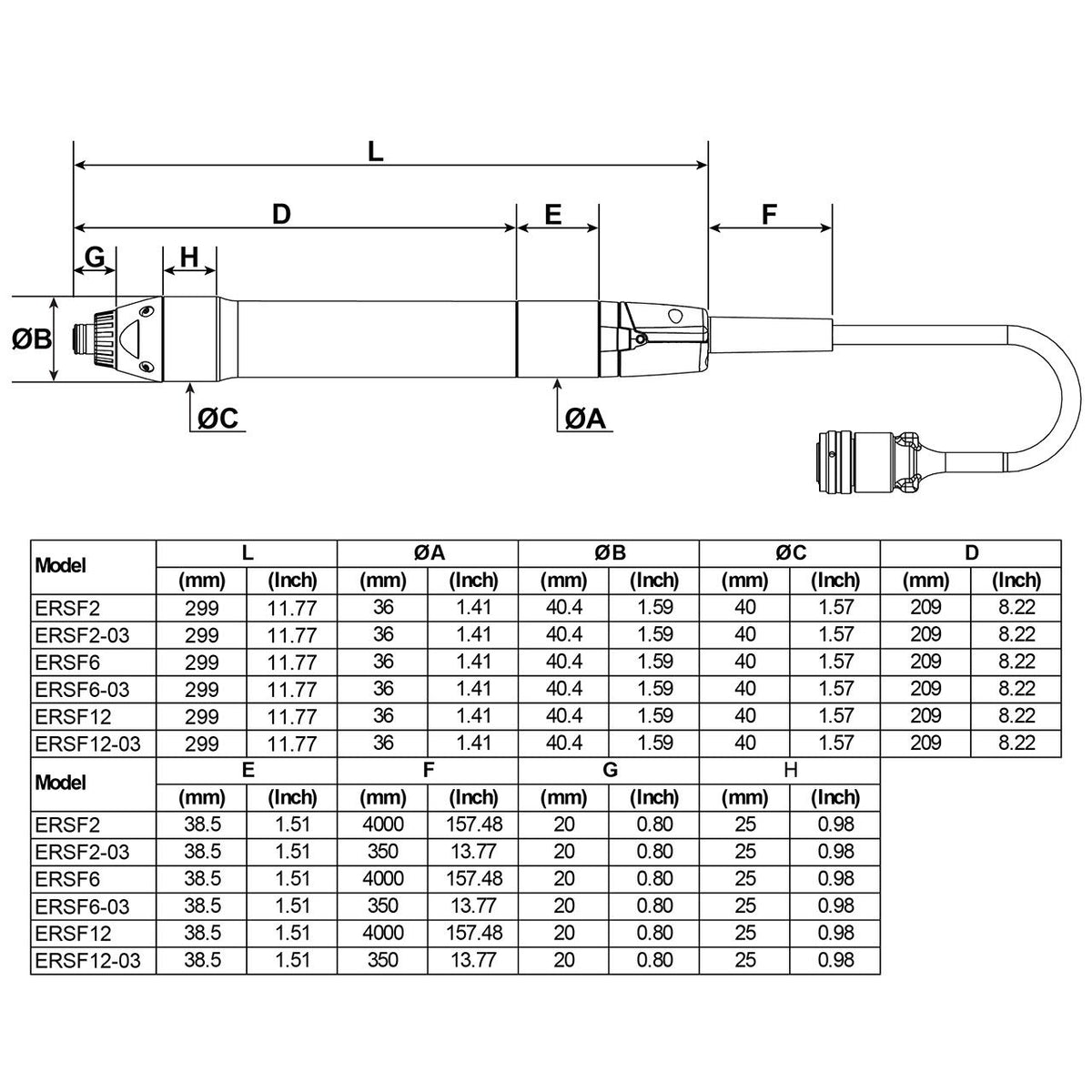

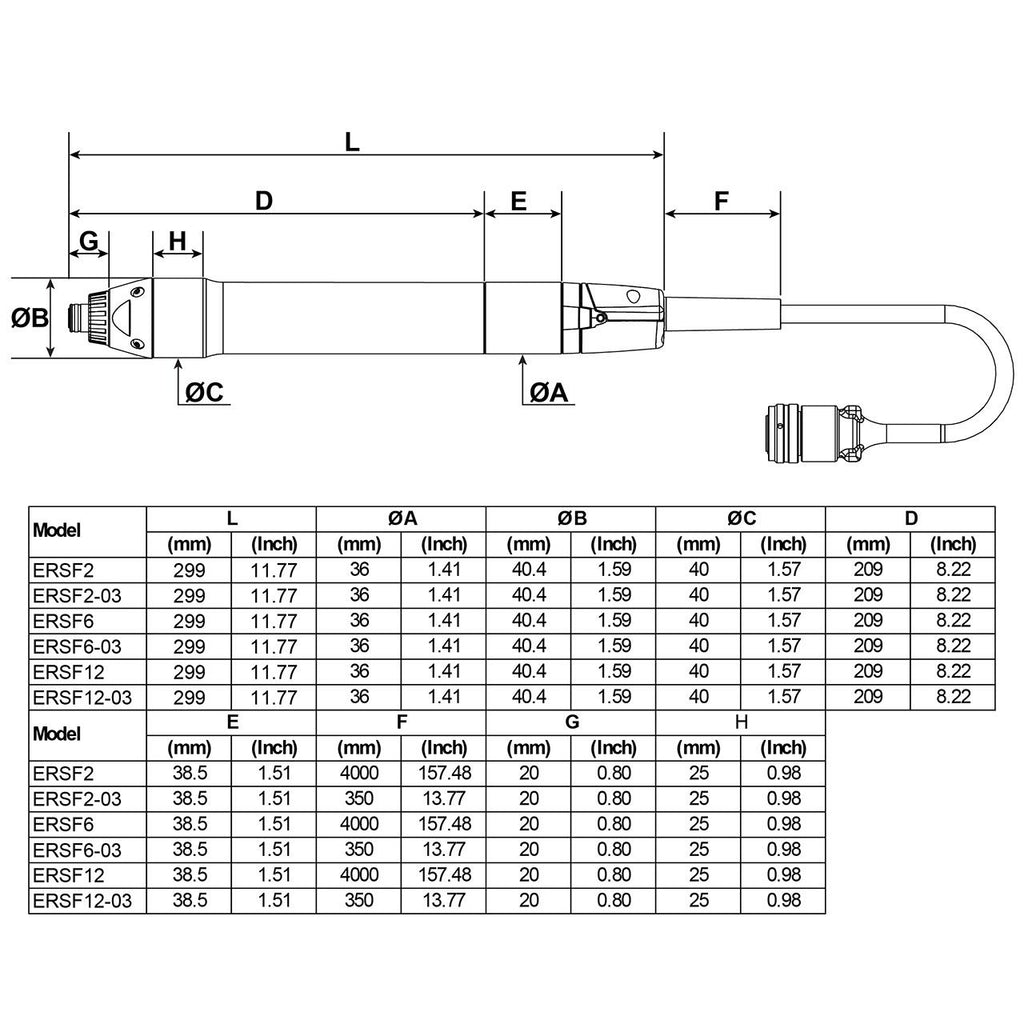

| Length (L) | 299 mm (11.77 in) |
| Weight | 0.7 kg (1.54 lb) |
| Reversible | Yes |
| Sound Power (dba) | <70 |
