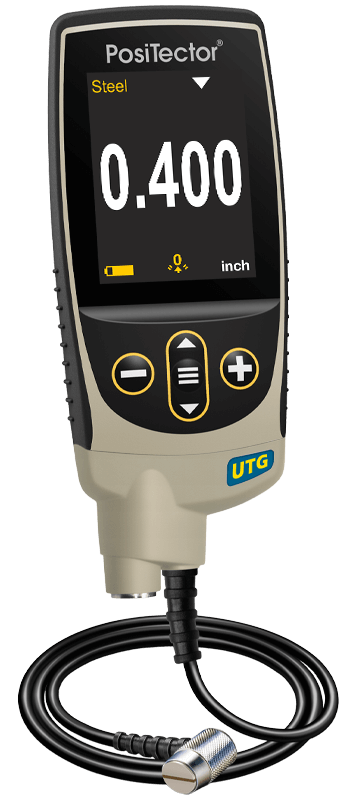

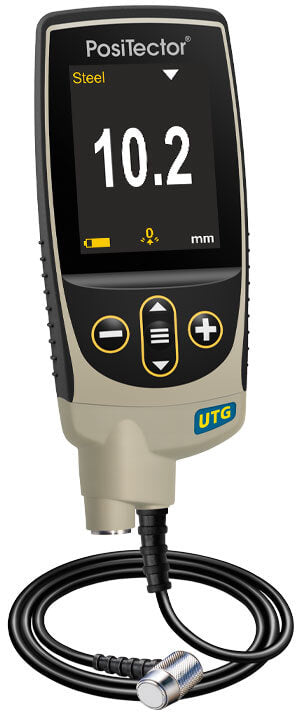

DeFelsko UTGM3 | PosiTector UTG M Ultrasonic Thickness Gauge, Advanced
Part Number : UTGM3
The DeFelsko UTGM3 is the PosiTector UTG M ultrasonic wall thickness gauge on the Advanced gage body, using a 5 MHz contact transducer (wear-resistant alumina probe tip). It is aimed at measuring metal thickness through paint without removing the coating, letting inspectors measure wall thickness from one side of a part or structure. The Advanced body adds A-Scan and B-Scan displays.
Key features
- Probe type: 5 MHz contact
- Thru-paint capability: Yes
- Single Echo Range: 2.50 – 125.00 mm (0.100 – 5.000 in)
- Multiple Echo Range: 2.50 – 60.00 mm (0.100 – 2.500 in)
- Accuracy ±0.03 mm (±0.001 in)
- Pre-programmed sound velocities for common materials; Min Scan mode records min/max thickness
- Advanced gage body stores 250,000 readings in up to 1,000 batches and adds WiFi and Bluetooth
For pricing, please contact our experts.
