DeFelsko UTGCX1 | PosiTector UTG CX Ultrasonic Thickness Gauge, Standard | Xtreme Braided Cable, up to 125 mm
Part Number : UTGCX1

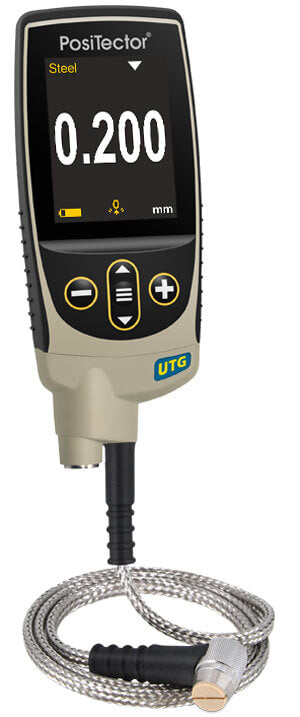

The DeFelsko UTGCX1 is the PosiTector UTG CX ultrasonic wall thickness gauge on the Standard gage body, using a 5 MHz dual element transducer (braided stainless steel cable with heavy-duty strain reliefs). It is aimed at corrosion work in demanding environments, letting inspectors measure wall thickness from one side of a part or structure.
Key features
- Probe type: 5 MHz dual element
- Thru-paint capability: No
- Measuring Range: 2.00 – 125.00 mm (0.080 – 5.000 in)
- Accuracy ±0.03 mm (±0.001 in)
- Pre-programmed sound velocities for common materials; Min Scan mode records min/max thickness
- Standard gage body stores 1,000 readings per probe
For pricing, please contact our experts.
