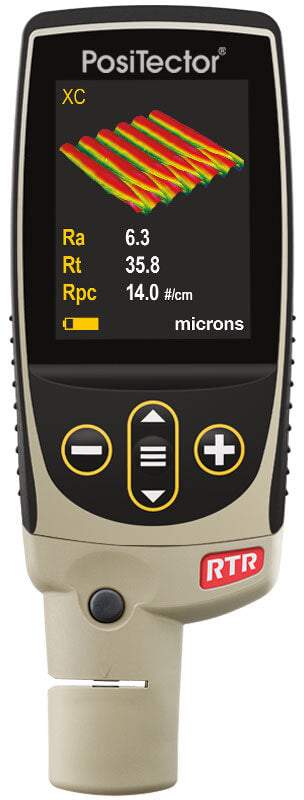

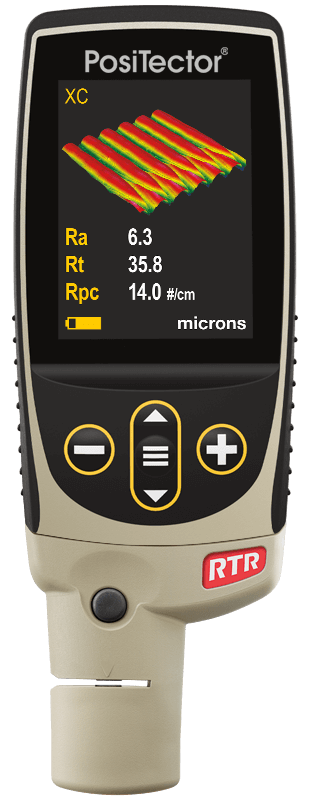

DeFelsko RTR3D3 | PosiTector RTR 3D Replica Tape Reader, Advanced | 2D/3D Profile Parameters
Part Number : RTR3D3
The DeFelsko RTR3D3 pairs the PosiTector RTR 3D replica tape reader with the Advanced gage body. Insert a burnished Testex Press-O-Film replica and it reports peak height (H) together with 2D and 3D parameters within seconds, for field or laboratory checks on flat, curved or irregular surfaces. The Advanced body can also download .SDF surface data files and 2D/3D thumbnail images.
Key features
- 2D parameters: Ra, Rq, Rz, Rp, Rv, Rt, Rpc
- 3D parameters: H, Sa, Sq, Sz, Sp, Sv, Spd
- Range: H 20 to 115 µm, Rt 10 to 115 µm; accuracy (H) ±5 µm
- Short and long cutoff filters and discard lengths can be applied
- Conforms to ASME B46, ASTM D4417, ISO 8503-5 and SSPC-PA 17
- Advanced gage body stores 250,000 readings in up to 1,000 batches and adds WiFi and Bluetooth
For pricing, please contact our experts.
