DeFelsko PRBSPGOS | PosiTector SPG OS Surface Profile Probe Only | Convex Surfaces, 0 – 500 µm
Part Number : PRBSPGOS

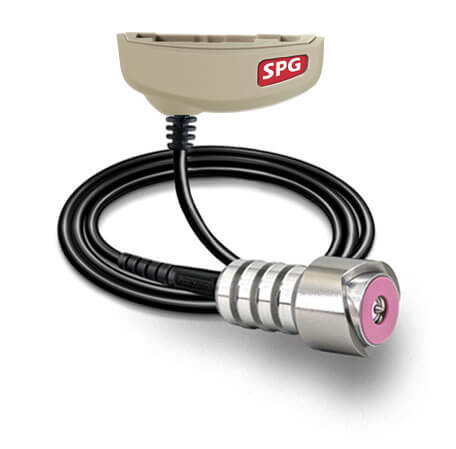

The DeFelsko PRBSPGOS is the PosiTector SPG OS cabled digital depth micrometer probe, sold without a gage body. It records peak-to-valley surface profile height on blasted steel, flat or convex, with a measuring range of 0 – 500 µm (0 – 20 mils), and is suited to pipes, tanks and other convex surfaces with an OD above 3 mm, helped by the integral V-groove. It needs a PosiTector Standard or Advanced gage body to operate.
Key features
- Measuring range 0 – 500 µm (0 – 20 mils)
- Accuracy ±(5 µm + 5%)
- Tungsten carbide tip: 60°, 50 µm radius
- Over 50 readings per minute with built-in temperature compensation
- 30° tips available for AS 3894.5-C
- Optional Large V-groove Adaptor for pipes and tanks 30 – 46 cm OD
- Sold as a probe only: requires a PosiTector Standard or Advanced gage body (not included)
For pricing, please contact our experts.
