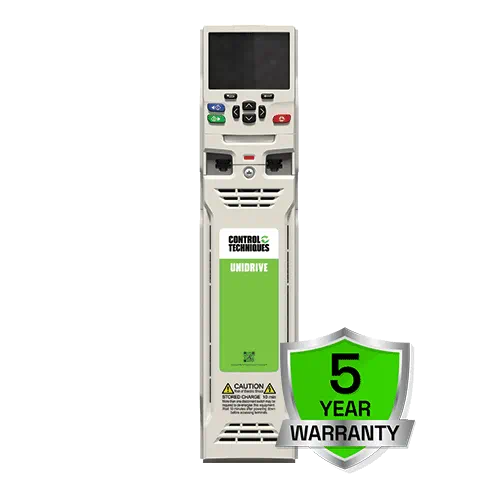

Control Techniques Unidrive M700 | M701-03400062A10100AB100 | High Performance AC/Servo Drives
The Control Techniques 03400062A10100AB100 is a high-performance Unidrive M700/M701 AC and servo drive designed to provide torque, speed and position control from a single hardware platform. It supports servo, hybrid permanent-magnet, linear and AC induction motors, making it suitable for machine builders and industrial automation applications requiring flexible motor control.
Genuine Control Techniques stock · Free Saudi Arabia shipping
Part Number: 03400062A10100AB100
Request a quote in under a minute — call +966 569 289 544.
Product Overview
The Control Techniques 03400062A10100AB100 belongs to the Unidrive M700/M701 high-performance drive platform, developed for demanding industrial motion and machine-control applications.
The drive provides torque, speed and position control from a common hardware platform. This allows machine builders and system integrators to use the same drive family across applications involving different motor technologies, including high-performance servo motors, hybrid permanent-magnet motors, dynamic linear motors and conventional AC induction motors.
The Unidrive M700/M701 platform is designed around high control bandwidth and control stability, making it suitable for applications where responsive motor control and accurate machine operation are important.
The drive can be installed at altitudes from 0 to 3000 m (9,900 ft). Standard operation is possible up to 1000 m without altitude derating, while installations between 1000 m and 3000 m require a 1% derating per 100 m.
For environmental conditions, the drive supports up to 95% maximum non-condensing humidity at 40 °C (104 °F). Standard storage temperature is -40 °C to 55 °C (-40 °F to 131 °F), with short-term storage possible up to 70 °C (158 °F).
The exact electrical rating, I/O configuration and variant details should be confirmed from the complete part number and manufacturer documentation before specifying the drive for a particular motor or machine.
Need the 03400062A10100AB100 for your application? Contact General Tech Services LLC at +966 569 289 544.
Key Benefits
- High-performance Unidrive M700/M701 AC and servo drive platform
- Supports torque, speed and position control
- Compatible with servo, hybrid permanent-magnet, linear and AC induction motors
- High control bandwidth for demanding motion and machine applications
- Enables machine builders to standardise across different motor technologies
- Suitable for industrial automation and high-performance motor-control applications
- Supports installation at altitudes up to 3000 m with applicable derating
- Genuine Control Techniques product with free Saudi Arabia shipping
Who This Product Is Best For
The Control Techniques 03400062A10100AB100 is suitable for:
- Machine builders standardising drive hardware across different motor types
- OEMs requiring torque, speed and position control
- System integrators working on demanding industrial motion applications
- Automation engineers requiring a high-performance AC/servo drive platform
- Industrial applications using servo, permanent-magnet, linear or induction motors
How to Specify & Commission It
- Confirm that the 03400062A10100AB100 nameplate rating matches the motor's voltage, current and power requirements.
- Check the complete part number and manufacturer documentation to confirm the required drive configuration and I/O.
- Mount the drive in a suitably ventilated panel or enclosure according to the manufacturer's installation requirements.
- Connect the supply, motor and control/communication terminals as specified.
- Configure and commission the drive for the selected motor and application, then verify protection and operating settings before handing over the system.
Frequently Asked Questions
What control modes does the 03400062A10100AB100 support?
The drive supports torque control, speed control and position control applications from the same hardware platform.
What motor types can the Unidrive M700/M701 drive control?
The platform supports high-performance servo motors, hybrid permanent-magnet motors, linear motors and AC induction motors.
What is the Unidrive M700/M701 platform?
It is a high-performance Control Techniques drive platform designed to provide flexible motor control across servo, permanent-magnet, linear and induction motor applications.
What is the difference between M700 and M701?
M700 and M701 share the high-performance Unidrive M platform. The exact drive variant and available I/O or communication features should be confirmed using the complete part number and manufacturer documentation.
At what altitude can this drive be installed?
The drive can be installed from 0 to 3000 m (9,900 ft). No altitude derating is required up to 1000 m; between 1000 m and 3000 m, the specified derating is 1% per 100 m.
What humidity conditions are specified?
The specified maximum humidity is 95% non-condensing at 40 °C (104 °F).
What are the storage temperature limits?
Standard storage is specified from -40 °C to 55 °C (-40 °F to 131 °F), with short-term storage possible up to 70 °C (158 °F).
Is genuine documentation available for this part number?
Yes. General Tech Services LLC can provide manufacturer documentation for the 03400062A10100AB100 on request, along with commissioning support.
Request a Quote Today
For pricing, availability or technical assistance with the Control Techniques 03400062A10100AB100 Unidrive M700/M701 drive, contact General Tech Services LLC.
