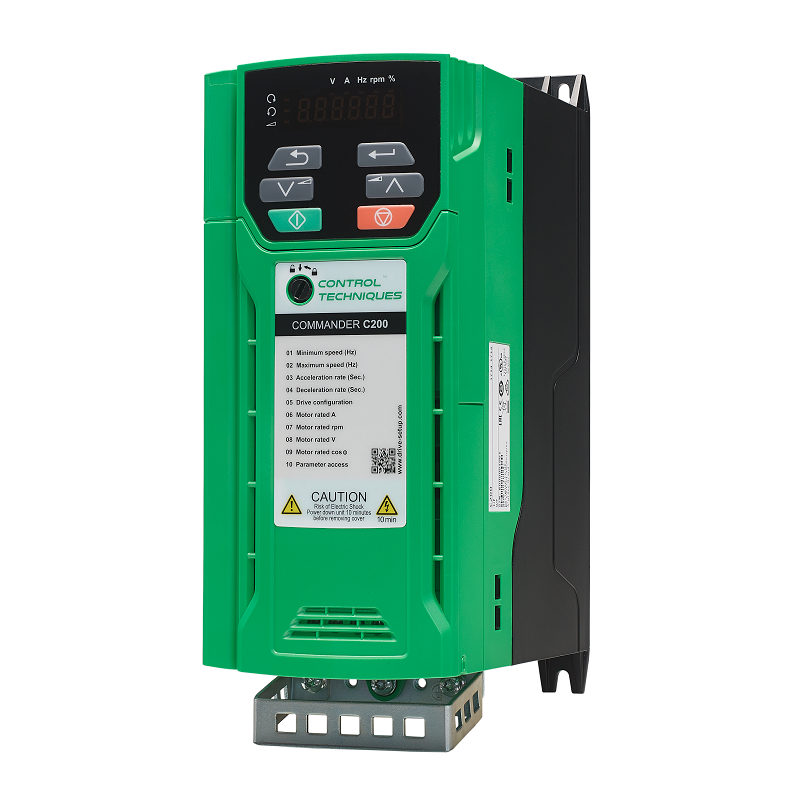

Control Techniques C200-02200056A | 1.1kW, Single/Three Phase, 200/240V AC, | Commander C | Variable Speed Drive
The Control Techniques C200-02200056A Commander C200 variable speed drive provides 1.1 kW motor shaft power with a 5.6A maximum continuous current and accepts single- or three-phase 200-240 VAC input. It combines a compact IP21 housing with integrated safety, braking and process-control functions for flexible AC motor control. Genuine Control Techniques stock at General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping. Request a quote in under a minute - call +966 569 289 544.
Part No. C200-02200056A | 1.1 kW
Product Overview
The Control Techniques Commander C series builds on a motor-control platform introduced in 1983, when Control Techniques launched its first commercial vector drive. The C200-02200056A continues this product family with a 1.1 kW rating, 5.6A continuous current, and flexible 1/3-phase 200-240 VAC input in a compact IP21 housing.
The drive combines several control functions in one unit, including dual Safe Torque Off (STO), an integrated brake transistor, closed-loop PID control, and an onboard PLC for basic sequencing. This allows the drive to support motor control, process regulation, safety and simple logic functions without requiring additional panel hardware for these functions.
Need a different rating? The C200-02200042A (0.75 kW) and C200-02200033A (0.55 kW) cover smaller motor applications within the same C200 family.
Key Benefits
- 1.1 kW motor shaft power for compatible AC motor applications
- 5.6A maximum continuous current
- Single- or three-phase 200-240 VAC input for flexible installation
- Four-parameter commissioning for fast and straightforward startup
- Dual Safe Torque Off (STO) integrated for safety applications
- Onboard PLC for basic sequencing and control
- PID control for process-control applications
- Integrated brake transistor for controlled deceleration
- Compact IP21 enclosure shared across the C200 power range
- 0.5-590 Hz output frequency range
- Genuine Control Techniques stock with free Saudi Arabia shipping
Who This Product Is Best For
- Light-duty pumps, fans and material-handling applications around 1.1 kW
- Panel builders standardising on a compact drive housing across different motor ratings
- Retrofits replacing older drives where a compact 200-240 VAC solution is required
- Applications requiring single- or three-phase input flexibility
- Systems benefiting from integrated STO, PID control, braking and basic PLC functionality
How to Specify & Commission It
- Confirm that the C200-02200056A rating of 1.1 kW, 200-240 VAC, 1/3 phase and 5.6A matches the motor and available supply.
- Mount the drive in a suitably ventilated enclosure according to the Control Techniques installation guide.
- Connect the supply, motor and required control terminals, then power up and configure the four core startup parameters.
- Commission the drive with the connected motor and application, then verify STO, protection and operating settings before handover.
Frequently Asked Questions
How quickly can the C200-02200056A be commissioned?
The Commander C design uses a simple startup approach requiring just four parameters to get the drive started.
What is the maximum continuous current rating?
The C200-02200056A has a 5.6A maximum continuous current rating and is rated for 1.1 kW motor shaft power.
Does the C200-02200056A include safety functions?
Yes. The supplied information specifies dual Safe Torque Off (STO), along with an integrated brake transistor and PID control.
Is this drive suitable for single-phase supply?
Yes. The C200-02200056A accepts single- or three-phase 200-240 VAC input, providing flexibility for installations where three-phase power may not be available.
What is the output frequency range?
The specified output frequency range is 0.5-590 Hz.
Should I choose the C200-02200056A or a smaller C200 rating?
Match the drive's current and power rating to your motor nameplate first. For smaller motors, the C200-02200042A (0.75 kW) or C200-02200033A (0.55 kW) may be applicable. Contact our team to confirm the appropriate rating for your application.
Is genuine documentation available for C200-02200056A?
Yes. General Tech Services LLC can provide the manufacturer datasheet on request and assist with product selection and commissioning requirements.
