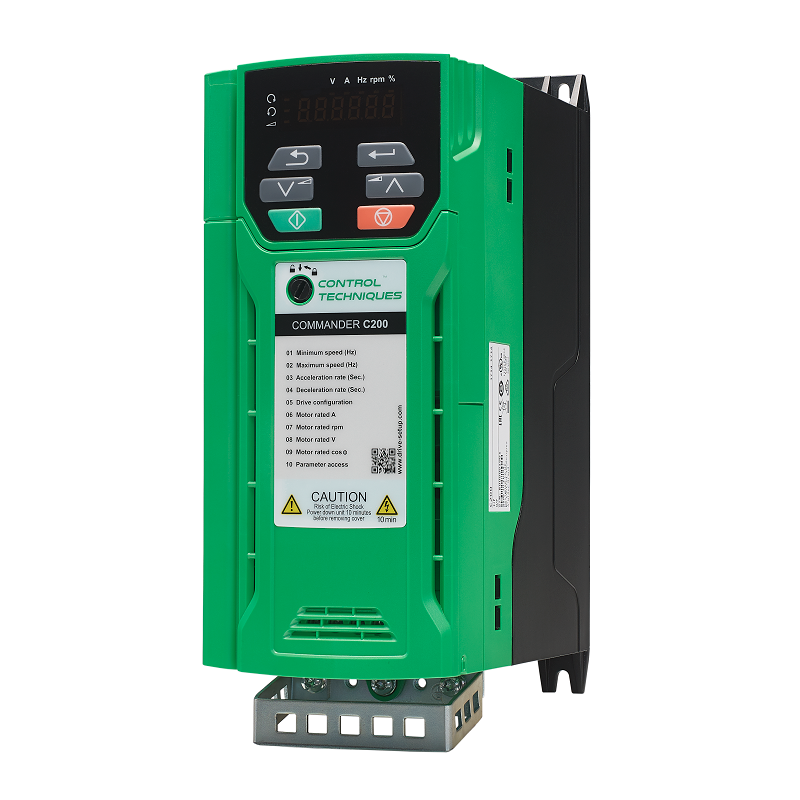

Control Techniques C200-01200042A | 0.75kW, Single Phase, 200/240V AC, | Commander C | Variable Speed Drive
The Control Techniques C200-01200042A Commander C200 is a compact variable speed drive rated for 0.75 kW / 1 hp motor shaft power, with 4.2 A maximum continuous current and single-phase 200–240 V AC input. Designed for straightforward AC motor control, the Commander C200 combines simple commissioning with features for demanding industrial applications.
Genuine Control Techniques stock · Free Saudi Arabia shipping
Part Number: C200-01200042A
Request a quote in under a minute — call +966 569 289 544.
Product Overview
The Control Techniques C200-01200042A belongs to the Commander C200 series of compact AC motor speed controllers. The Commander range builds on Control Techniques' long-standing motor-control platform, with the current Commander C series designed to provide a simple and compact solution for a wide range of industrial automation applications.
This model is rated for 0.75 kW / 1 hp motor shaft power and accepts a single-phase 200–240 V AC supply. Its maximum continuous current is 4.2 A, making it suitable for compatible motor applications within these ratings.
The C200 provides an output frequency range of 0.5–590 Hz, giving users adjustable motor-speed control across a broad frequency range when the motor and application are suitably rated. The drive operates with a 50/60 Hz input frequency.
Commissioning is designed around a simple startup process, with four parameters required to get the drive running according to the supplied product information. This can help simplify initial setup for facilities, OEMs, and panel builders.
For applications requiring higher starting or overload capability, the C200 offers up to 180% overload capacity for high-torque applications. The platform also supports an onboard PLC and plug-in options for applications requiring additional control functionality.
The C200-01200042A uses an IP21 enclosure and has compact dimensions of approximately 137 × 75 × 130 mm. Its listed weight is approximately 1.65 kg (3.64 lb).
For a different power rating within the same single-phase family, the C200-01200033A is an alternative model. Always compare the drive rating with the motor nameplate and application requirements before selecting a model.
Key Benefits
- 0.75 kW / 1 hp motor shaft power rating
- 4.2 A maximum continuous current
- Single-phase 200–240 V AC input
- 0.5–590 Hz output frequency range
- Simple commissioning using four parameters
- Up to 180% overload capacity for high-torque applications
- Compact IP21 housing
- Onboard PLC and plug-in options for advanced control
- Suitable for OEM and general industrial motor-control applications
- Genuine Control Techniques product
- Free Saudi Arabia shipping on genuine stock
Who This Product Is Best For
The C200-01200042A is suited to OEMs, facilities, panel builders, and industrial users looking for a compact single-phase AC drive for compatible motors.
It is particularly applicable where straightforward commissioning, compact installation, and additional overload capability are required. The onboard PLC and plug-in options can also support applications requiring more advanced control functionality.
How to Specify & Commission It
- Confirm that the C200-01200042A nameplate rating matches the motor's voltage, current, and power requirements.
- Mount the drive in a suitably ventilated panel or enclosure according to the manufacturer's installation requirements.
- Connect the compatible supply, motor, and control terminals.
- Configure the drive using the required parameters and available commissioning tools.
- Commission the drive against the motor and process requirements and verify the relevant protection settings before handover.
Frequently Asked Questions
What is the Control Techniques C200-01200042A?
It is a Commander C200 variable speed drive rated for 0.75 kW / 1 hp, with single-phase 200–240 V AC input and a maximum continuous current of 4.2 A.
What supply does the C200-01200042A use?
The drive uses a single-phase 200–240 V AC input supply with a 50/60 Hz input frequency.
What is the output frequency range?
The supplied specifications list an output frequency range of 0.5–590 Hz.
How quickly can the Commander C200 be commissioned?
The supplied product information states that four parameters can be set to get the drive started, simplifying initial commissioning.
What overload capacity does the C200 offer?
The C200 offers up to 180% overload capacity for high-torque or heavy-starting applications, subject to the applicable operating conditions.
Does the C200-01200042A have Safe Torque Off?
The supplied information specifies dual Safe Torque Off (STO) on C300 variants within the Commander C series. This should not be interpreted as a specification for the C200-01200042A itself.
What size motor is the C200-01200042A designed for?
It is rated for 0.75 kW / 1 hp motor shaft power on a compatible 200–240 V AC single-phase input application.
What is the enclosure rating?
The C200-01200042A is listed with an IP21 enclosure.
What are the dimensions and weight?
The listed dimensions are approximately 137 × 75 × 130 mm, with a stated weight of approximately 1.65 kg.
Should I choose the C200-01200042A or C200-01200033A?
Compare the power, current, voltage, and other relevant ratings of each model with your motor's nameplate and application requirements. Contact General Tech Services LLC to confirm the appropriate model.
Is genuine documentation available for this part number?
Yes. Contact General Tech Services LLC to confirm the available manufacturer datasheet and commissioning documentation for the C200-01200042A.
Request a Quote Today
For pricing, availability, documentation, or technical assistance for the Control Techniques C200-01200042A Commander C200, contact General Tech Services LLC.
