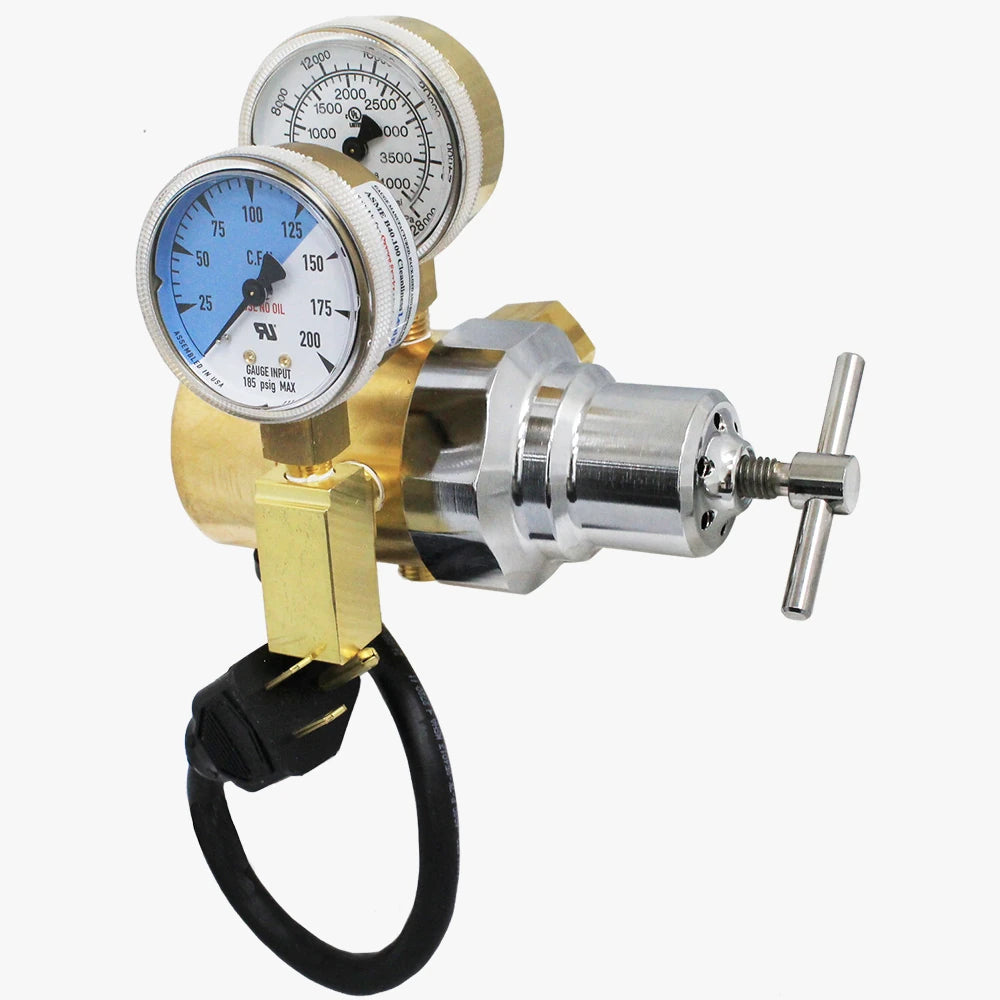

CONCOA 8068020-01-1 | 8000 Series Heated Cylinder Regulator | Inert Gas, CGA 580, 125 PSIG Delivery
Part Number : 8068020-01-1
CONCOA 8068020-01-1 is the inert gas (argon, nitrogen, helium) model in the 8000 Series Heated Cylinder Regulator range, with a CGA 580 inlet rated to 3000 PSIG (210 BAR) and a 5/8 in - 18 (B) RH Int outlet. It delivers up to 125 PSIG (9 BAR). The seat is PTFE. It carries 0-200 PSIG/0-14,000 kPa and 0-4000 PSIG/0-28,000 kPa gauges on this 220V unit. Heating in the 8068020-01-1 stops freeze-ups when drawing condensable gases such as carbon dioxide or nitrous oxide.
Key features
- 2 in chloroprene diaphragm with integral self-seating relief valve and Cv of 0.15
- Brass barstock body; 2 in (50 mm) stainless steel pressure gauges
- Chrome-plated, die-cast zinc bonnet, plus 35-micron sintered bronze filter
For pricing, please contact our experts.
