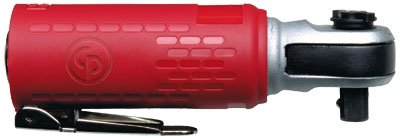

Chicago Pneumatic CP9427 | Pneumatic Ratchet Wrench | 3/8 in drive, 7-35 Nm
Covering 7-35 Nm (5-27 ft.lbs) through its 3/8 in square drive, the Chicago Pneumatic CP9427 air ratchet wrench runs at 270 rpm free speed and offers a maximum torque of 35 Nm. A quick socket release helps operator productivity, and the body is compact and lightweight.
- Runs at 270 rpm free speed
- Length 128 mm (5.1 in)
- Air inlet thread 1/4 in with 10 mm minimum hose size; consumes 5.6 l/s (12 cfm) in use
- Rated sound pressure of 82 dB(A) and vibration of 5 m/s²
- Ordering reference 6151919427
- Specifications
- Features
| Part Number | CP9427 |
| Brand | Chicago Pneumatic |
| Free Speed | 270 rpm |
| Length | 128 mm (5.1 in) |
| Air Inlet Thread | 1/4 in |
| Working Torque Range | 7-35 Nm (5-27 ft.lbs) |
| Air Consumption (Actual) | 5.6 l/s (12 cfm) |
| Vibration | 5 m/s² |
| Min. Hose Size | 10 mm (3/8 in) |
| Drive | 3/8 in |
| Max Torque | 35 Nm (27 ft.lbs) |
| Sound Pressure Level | 82 dB(A) |
| Air Consumption (Average) | 1.4 l/s (3 cfm) |
| Manufacturer Product Number | 6151919427 |
- 1/4" Mini ratchet
- Quick socket release button
- High power: 27 ft.lbs (35 Nm)
- One of the smallest ratchets only 5.1" (130mm) long
