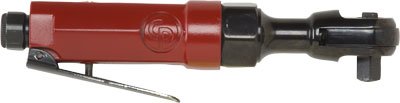

Chicago Pneumatic CP824T | Pneumatic Ratchet Wrench | 3/8 in drive, 5-17 Nm
Chicago Pneumatic built the CP824T as a 3/8 in square drive air ratchet wrench for 5-17 Nm (4-12.5 ft.lbs), running at 220 rpm free speed. With its square drive in 3/8 in, this lightweight ratchet gives extra reach for under-dashboard jobs, small engine repair and small fasteners.
- Free speed 220 rpm, net weight 0.51 kg (1.13 lb)
- Overall length: 197 mm (7.75 in)
- 1/4 in air inlet, minimum hose 10 mm, actual air use 7 l/s (15 cfm)
- Sound pressure 91 dB(A), vibration 4.1 m/s²
- Manufacturer product number T025391
- Specifications
- Features
| Part Number | CP824T |
| Brand | Chicago Pneumatic |
| Free Speed | 220 rpm |
| Length | 197 mm (7.75 in) |
| Air Inlet Thread | 1/4 in |
| Working Torque Range | 5-17 Nm (4-12.5 ft.lbs) |
| Net Weight | 0.51 kg (1.13 lb) |
| Air Consumption (Actual) | 7 l/s (15 cfm) |
| Vibration | 4.1 m/s² |
| Min. Hose Size | 10 mm (3/8 in) |
| Drive | 3/8 in |
| Max Torque | 17 Nm (12.5 ft.lbs) |
| Sound Pressure Level | 91 dB(A) |
| Air Consumption (Average) | 1.8 l/s (3.75 cfm) |
- 3/8" ratchet
- Easy speed control
- Extended length
