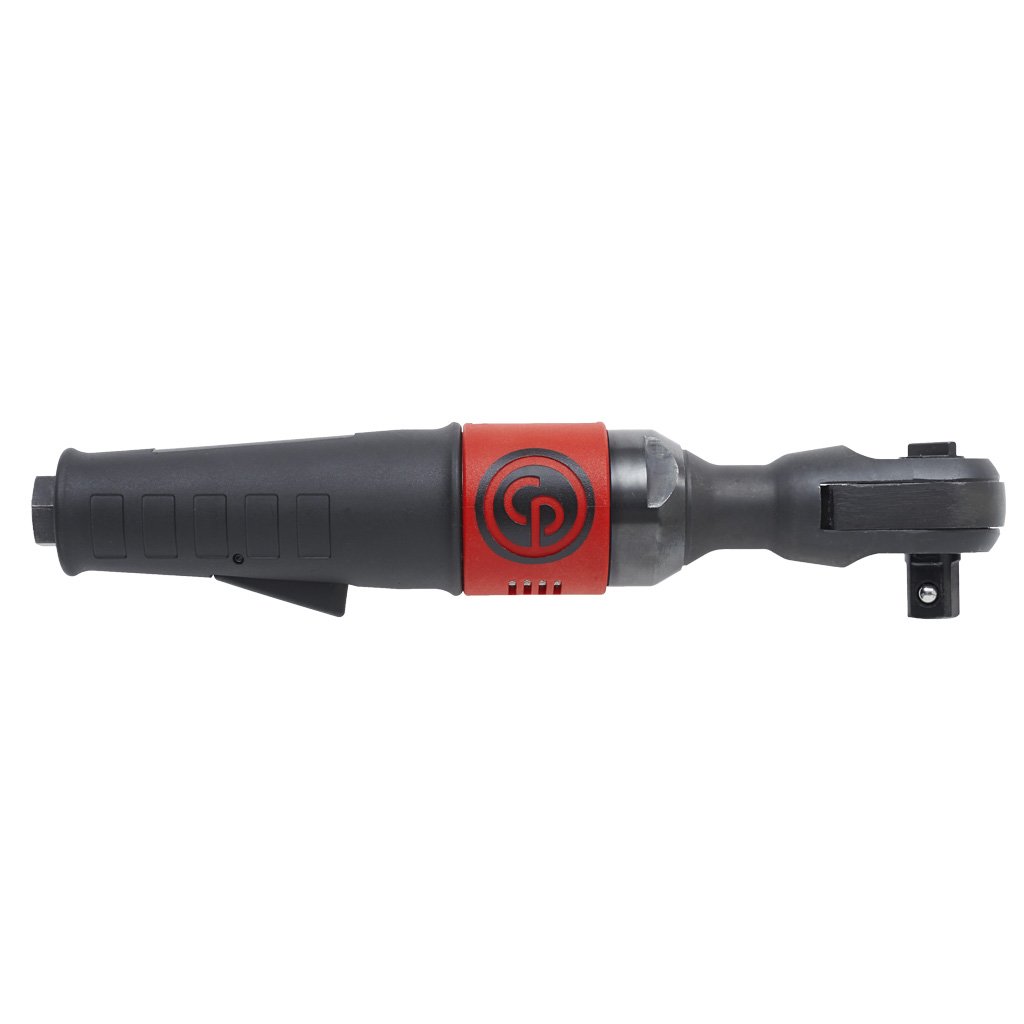

Chicago Pneumatic CP7829H | Air Ratchet Wrench | 1/2" Drive, 15–74 Nm
With a 1/2" square drive and 15–74 Nm (10–55 ft.lbs) of working torque, the Chicago Pneumatic CP7829H is an air ratchet wrench. This 1/2" ratchet offers fast rundown in a compact, lightweight body.
- Fast rundown of fasteners
- Compact, lightweight and versatile
- Durable tool
- Maximum torque of 95 Nm (70 ft.lbs); 225 rpm free speed
- Net weight 1.24 kg (2.73 lb), length 272 mm (10.7 in)
- Air inlet 1/4", 10 mm (3/8 in) minimum hose; actual air use 5.2 l/s (10.95 cfm)
- Specifications
- Features
| Part Number | CP7829H |
| Brand | Chicago Pneumatic |
| Free Speed | 225 rpm |
| Length | 272 mm (10.7 in) |
| Air Inlet Thread | 1/4" |
| Working Torque Range | 15–74 Nm (10–55 ft.lbs) |
| Net Weight | 1.24 kg (2.73 lb) |
| Air Consumption (Actual) | 5.2 l/s (10.95 cfm) |
| Sound Pressure | 85 dB(A) |
| Vibration | 8.6 m/s² |
| Square Drive | 1/2" |
| Min. Hose Size | 10 mm (3/8 in) |
| Product Number | 8941078294 |
| Max Torque | 95 Nm (70 ft.lbs) |
- 70 ft.lbs. / 95 Nm
- 225 RPM
- Advanced motor, full caged gear, and head design
- Only 10.7in / 272mm long
- Better access to restricted areas
- 2.7 lbs. / 1.2 kg
- Adjustable side exhaust avoids blowing dirt and dust
- Ergonomic composite grip insulates operator’s hand from cold
- Designed for a variety of applications from heavy ones such as transmission, suspension, work till light ones engine repair, dashboard work and general maintenance
- Made in Japan
- Technical description click to collapse contents
