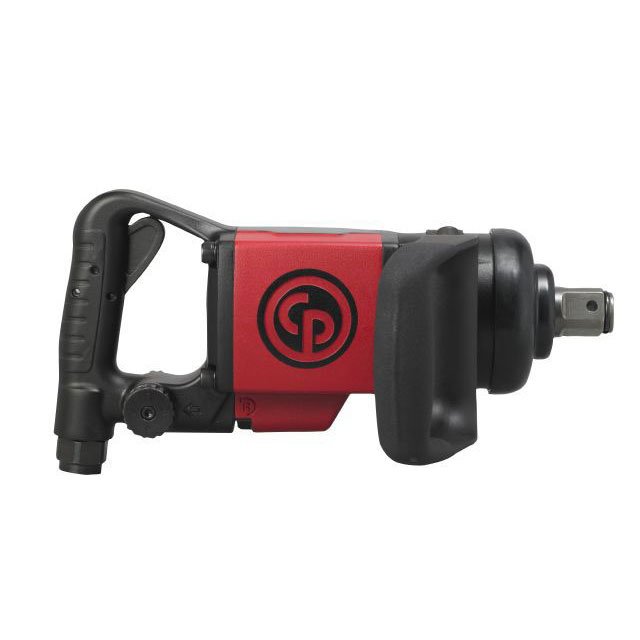

Chicago Pneumatic CP7780 | Impact Wrench | 1" Drive, 350–1650 Nm
Rated for 350–1650 Nm (260–1220 ft.lbs), the CP7780 is a 1" impact wrench from Chicago Pneumatic. It is a lightweight tool for general maintenance applications.
- Ergonomic, intuitive handling
- High power-to-weight ratio
- Maximum reverse torque: 2100 Nm (1550 ft.lbs)
- Net weight 6.8 kg (15 lb), length 335 mm (13.2 in)
- 1/2" air inlet with minimum hose 13 mm (1/2 in); actual air consumption 23.4 l/s (49.8 cfm)
- Sound pressure 94 dB(A), vibration 15.5 m/s²
- Specifications
- Features
| Part Number | CP7780 |
| Brand | Chicago Pneumatic |
| Maximum Torque (Reverse) | 2100 Nm (1550 ft.lbs) |
| Length | 335 mm (13.2 in) |
| Air Inlet Thread | 1/2" |
| Working Torque Range | 350–1650 Nm (260–1220 ft.lbs) |
| Net Weight | 6.8 kg (15 lb) |
| Air Consumption (Actual) | 23.4 l/s (49.8 cfm) |
| Sound Pressure | 94 dB(A) |
| Vibration | 15.5 m/s² |
| Square Drive | 1" |
| Min. Hose Size | 13 mm (1/2 in) |
| Product Number | 8941077800 |
- 1" D-Handle impact wrench with Dual retainer (Hole + Ring)
- Only 15 lbs (6,8kg) for one the best lightweight tool
- Integrated protective cover on the clutch housing
- Twin hammer mechanism in oil bath for durability
- Double stage trigger and dedicated lever for forward & reverse
- ergonomic side handle with soft touch grip
- 4-position power setting for both directions and on both sides of the tool
