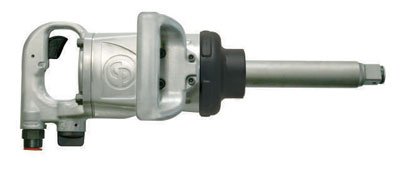

Chicago Pneumatic CP7778-6 | Impact Wrench | 1" Drive, 400–1800 Nm
Chicago Pneumatic's CP7778-6 impact wrench has a 1" square drive and works across 400–1800 Nm (300–1330 ft.lbs). This -6 version suits tyre work, general repair and maintenance.
- Efficient, economical motor
- Maximum reverse torque: 2200 Nm (1620 ft.lbs)
- Net weight 11.5 kg (25.4 lb)
- Air inlet 1/2", 13 mm (1/2 in) minimum hose; actual air use 16.5 l/s (35 cfm)
- Sound pressure 106 dB(A), vibration 10.1 m/s²
- Manufacturer product number 8941077786
- Specifications
- Features
| Part Number | CP7778-6 |
| Brand | Chicago Pneumatic |
| Maximum Torque (Reverse) | 2200 Nm (1620 ft.lbs) |
| Air Inlet Thread | 1/2" |
| Working Torque Range | 400–1800 Nm (300–1330 ft.lbs) |
| Net Weight | 11.5 kg (25.4 lb) |
| Air Consumption (Actual) | 16.5 l/s (35 cfm) |
| Sound Pressure | 106 dB(A) |
| Vibration | 10.1 m/s² |
| Square Drive | 1" |
| Min. Hose Size | 13 mm (1/2 in) |
| Product Number | 8941077786 |
- 1" heavy-duty impact wrench
- Rocking dog clutch
- High efficiency 6-vane motor
- 3 power settings with directional control
- Angled down exhaust
- Plus 6" extended anvil
