Chicago Pneumatic CP7731C 3/8 Impact Wrenches 83-392NM

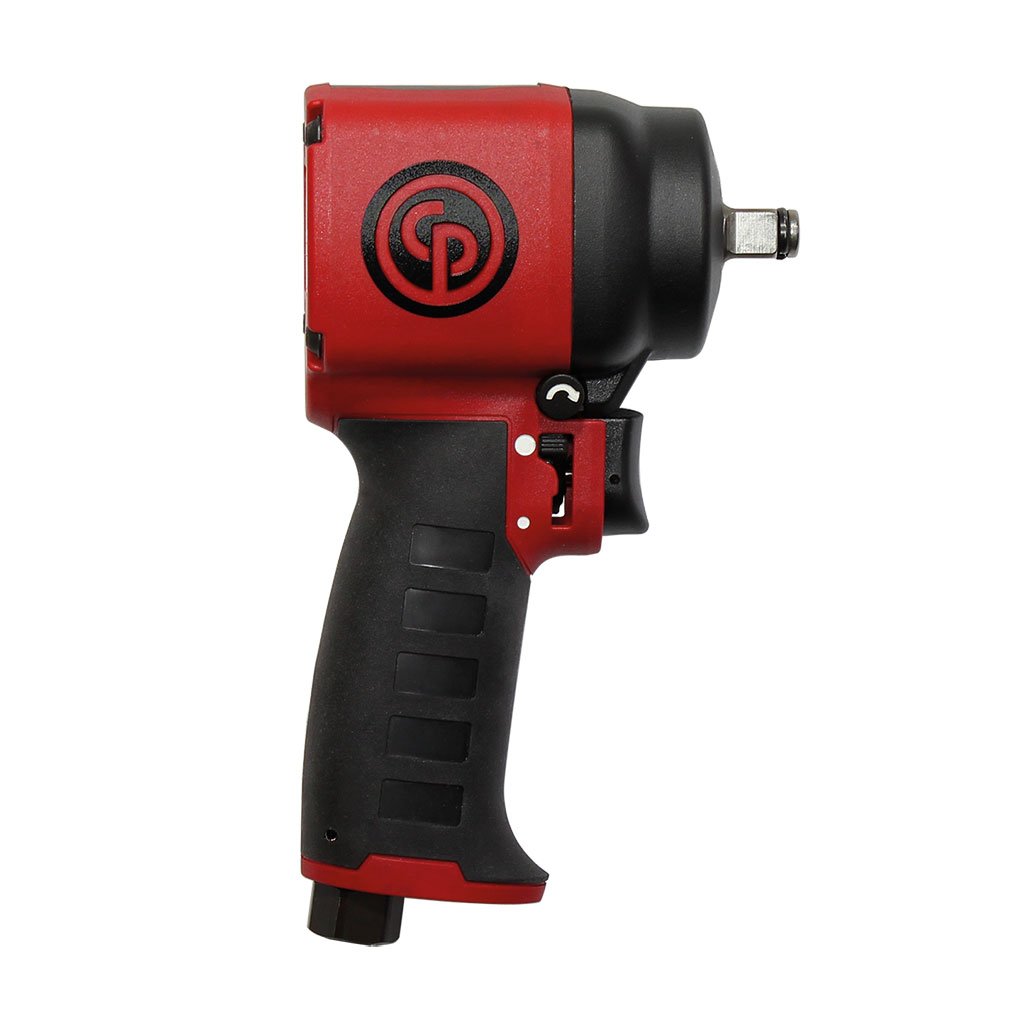

Name: Chicago Pneumatic CP7731C 3/8 Impact Wrenches 83-392NM
Brand: ChicagoPneumatic
SKU: CP7731C
Price: 1320.00 SAR
Availability: OutOfStock

Part Number : CP7731C

Ultra Compact & Powerful. Best power to weight ratio: 346 ft-lbs / 470 Nm. Ultra compact. Easy to use. Durable.Range: 83 - 392 Nm 61 - 289 ft.lbs

Availability: Sold out

Specifications
Features

Actual air consumption	Metric: 7.9 l/s Imperial: 17 cfm
Average air consumption	Metric: 2 l/s Imperial: 4.3 cfm
Brand	Chicago Pneumatic
Free Speed	9000 rpm
Maximum Torque (reverse)	Metric: 469 Nm Imperial: 470 ft.lbs
Min. Hose Size	Metric: 10 mm Imperial: 3/8"
Model Number	CP7731C
Net weight	Metric: 1 kg Imperial: 1.0 lb
Power/weight ratio	Metric: 469 Nm/kg Imperial: 346 ft.lb/lb
Product Number	8941077311
Range Imperial	61 - 289 ft.lbs
Range Metric	83 - 392 Nm
Sound Power	107 db(A)
Sound pressure	96 db(A)
Square Drive	3/8"
Vibration uncertainty (K)	1.38 m/s2
Vibration	10.33 m/s2

2.1 lbs. – 1.0 Kg
346 ft.lbs - 470 Nm of maximum torque in reverse
4 1/4 in – 107 mm length
Jumbo hammer mechanism
Steel motor
Aluminum clutch housing
Composite housing with curved handle with Thermo-Plastic Rubber injected
S2S: 1 hand Forward – Reverse operation
New power setting system: 1 hand-operation behind the trigger
2 positions in reverse: max and lower torque
2 positions in forward: max and low torque
Socket retainer ring
Full teasing trigger
