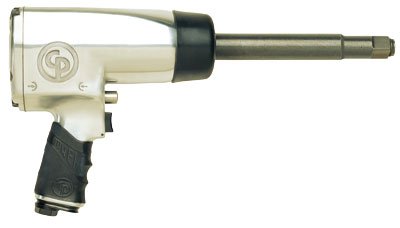

Chicago Pneumatic CP772H-6 3/4 Impact Wrenches 203-949NM
Part Number : CP772H-6
The unmatched Reference in 3/4 impact with 6 extension. General Maintenance. Smooth operation thanks to the DYNA-PACT clutch. Comfortable use thanks to low noise and vibration levels. Good durability.Range: 203 - 949 Nm 150 - 700 ft.lbs
Ask an Expert
- Specifications
- Features
Actual air consumption | Metric: 11.3 l/s Imperial: 24 cfm |
Air inlet thread size | 3/8" |
Average air consumption | Metric: 2.8 l/s Imperial: 6 cfm |
Brand | Chicago Pneumatic |
Free Speed | 4200 rpm |
Length | 3/4" |
Maximum Torque (reverse) | Metric: 1356 Nm Imperial: 1000 ft.lbs |
Min. Hose Size | Metric: 13 mm IMperial: 1/2" |
Model Number | CP772H-6 |
Net weight | Metric: 5.3 kg Imperial: 11.6 lb |
Power/weight ratio | Metric: 255.8 Nm/kg Imperial: 86.2 ft.lb/lb |
Product Number | T024757 |
Range Imperial | 150 - 700 ft.lbs |
Range Metric | 203 - 949 Nm |
Sound Power | 107 db(A) |
Sound pressure | 96 db(A) |
Square Drive | 3/4" |
Vibration uncertainty (K) | 2 m/s2 |
Vibration | 5.8 m/s2 |
- 3/4" impact wrench for vehicle service
- Plus 6" extended anvil
- Pin clutch oil bath
- One-handed push button forward/reverse with 4 positive power settings
- Full power in reverse
- New comfortable contoured handle grip
- 360° air inlet swivel
