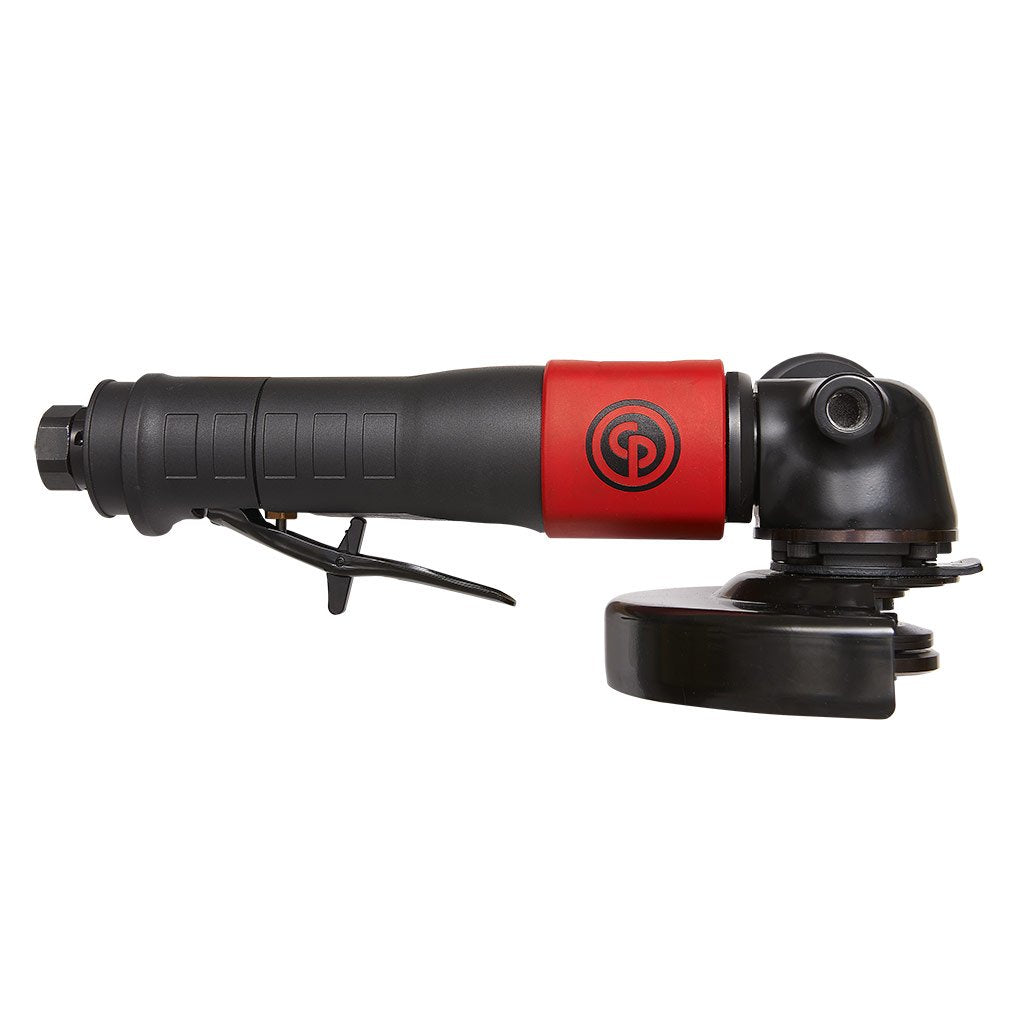

Chicago Pneumatic CP7550-A | Pneumatic Angle Grinder | 125 mm (5 in) wheel, 840 W
Chicago Pneumatic rates the CP7550-A air angle grinder at 840 W (1.1 hp) for 125 mm (5 in) wheels, with a free speed of 12,000 rpm. This version is built for efficient, durable grinding and comes with a 1,000-hour service interval.
- Spindle thread: M14
- Weighs 1.6 kg (3.5 lb) at 270 mm (10.6 in) long
- Air inlet thread 1/4 in with 10 mm minimum hose size; free speed air consumption 9.3 l/s (20 cfm)
- Actual air use of 18.9 l/s (40 cfm)
- Rated sound pressure of 85 dB(A) and vibration of 7 m/s²
- Ordering reference 8941075503
- Specifications
- Features
| Part Number | CP7550-A |
| Brand | Chicago Pneumatic |
| Wheel size | 125 mm (5 in) |
| Power | 840 W (1.1 hp) |
| Free speed | 12,000 rpm |
| Spindle thread | M14 |
| Net weight | 1.6 kg (3.5 lb) |
| Length | 270 mm (10.6 in) |
| Air inlet thread | 1/4 in |
| Min. hose size | 10 mm (3/8 in) |
| Air consumption (free speed) | 9.3 l/s (20 cfm) |
| Air consumption (actual) | 18.9 l/s (40 cfm) |
| Sound pressure level | 85 dB(A) |
| Vibration | 7 m/s² |
- M14 spindle thread
- High quality bevel gears & Governed motor
- Robust steel keyless adjustable wheel rotative guard
- 360° swivel air inlet
- 1.1HP - 840 W
- 1000 hour service interval
- Rear exhaust (exhaust hose included)
- Streamline CP Safety Lever
- Streamline composite handle for either right or left handed operation
- Composite grip insulates operator’s hand from cold
- Designed for a variety of applications such as sanding with flap discs, grinding and cutting
