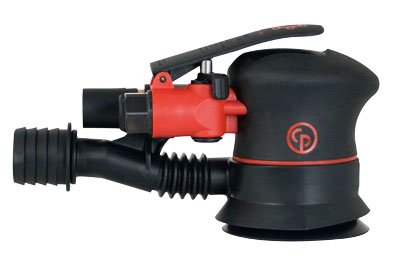

Chicago Pneumatic CP7255CVE-3 | Orbital Sander | 75 mm Pad, 5 mm Orbit
A 75 mm (3 in) pad, a 5 mm (3/16 in) orbit, a free speed of 12,000 rpm and a 210 W (0.3 hp) motor are the headline figures for the Chicago Pneumatic CP7255CVE-3 orbital sander. The CP7255CVE-3 uses a 5 mm orbit for surface preparation spanning body filler to paint primer, in vertical or horizontal positions.
- Palm-shaped body designed for comfortable handling; sound power 87 dB(A)
- Low vibration level: 4.4 m/s² declared; height over spindle 100 mm (3.9 in)
- Air supply: 1/4 in inlet, 10 mm (3/8 in) hose minimum, 3.9 l/s (233.5 l/min, 8.3 cfm) consumption
- 0.66 kg (1.45 lb) net weight, 180 x 80 x 100 mm overall
- Specifications
- Features
| Part Number | CP7255CVE-3 |
| Brand | Chicago Pneumatic |
| Free Speed | 12,000 rpm |
| Air Inlet Thread | 1/4 in |
| Sound Pressure | 76 dB(A) |
| Orbit Diameter | 5 mm (3/16 in) |
| Minimum Hose Size | 10 mm (3/8 in) |
| Pad Diameter | 75 mm (3 in) |
| Power | 210 W (0.3 hp) |
| Net Weight | 0.66 kg (1.45 lb) |
| Air Consumption (Average) | 3.9 l/s (233.5 l/min, 8.3 cfm) |
| Air Consumption (Actual) | 7.8 l/s (467 l/min, 16.5 cfm) |
| Vibration | 4.4 m/s² |
| Dimensions | 180 x 80 x 100 mm (7.09×3.15×3.94 in) |
- 3" (75 mm) random orbital palm sander
- 3/16" (5 mm) orbit
- Powerful 0.3 hp (210 W) motor
- Soft grip, tear drop design for perfect control
- Low noise level
- Shut-off and speed control switch
- Central Vacuum (CV) model in Hook & Loop Pad
