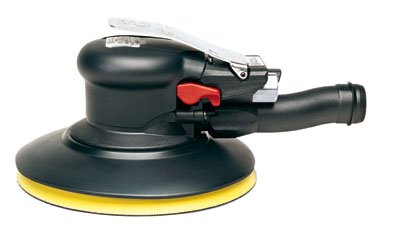

Chicago Pneumatic CP7220SVE | Orbital Sander | 150 mm Pad, 2.5 mm Orbit, Self Vacuum
A 150 mm (6 in) pad, a 2.5 mm (3/32 in) orbit, a free speed of 12,000 rpm and a 210 W (0.3 hp) motor are the headline figures for the Chicago Pneumatic CP7220SVE orbital sander. The CP7220SVE is an industrial orbital sander intended for a wide range of sanding work.
- Low noise: 76 dB(A) sound pressure level
- Durable thanks to a simple, robust design
- Hook and loop (H&L) pad with 6 holes; self vacuum dust extraction
- Free speed 12,000 rpm; power output 210 W (0.3 hp)
- Air consumption 3.8 l/s (226.8 l/min, 8 cfm); 1/4 in inlet, minimum hose 10 mm (3/8 in)
- Weighs 0.77 kg (1.7 lb)
- Specifications
- Features
| Part Number | CP7220SVE |
| Brand | Chicago Pneumatic |
| Free Speed | 12,000 rpm |
| Air Inlet Thread | 1/4 in |
| Sound Pressure | 76 dB(A) |
| Orbit Diameter | 2.5 mm (3/32 in) |
| Minimum Hose Size | 10 mm (3/8 in) |
| Pad Diameter | 150 mm (6 in) |
| Pad Type | Hook and loop (H&L) |
| Power | 210 W (0.3 hp) |
| Net Weight | 0.77 kg (1.7 lb) |
| Air Consumption (Average) | 3.8 l/s (226.8 l/min, 8 cfm) |
| Air Consumption (Actual) | 7.8 l/s (470 l/min, 16.6 cfm) |
| Dust Extraction | Self vacuum |
- Central-vacuum model available in PSA and Hook & Loop pads
- 0.3 hp (210 W) orbital sander
- True oil-free operation to keep contaminants away from your sanding process
- Self-vacuum (Venturi) model available in PSA and Hook & Loop pads
- Used for final sanding, finishing and prepolishing processes
