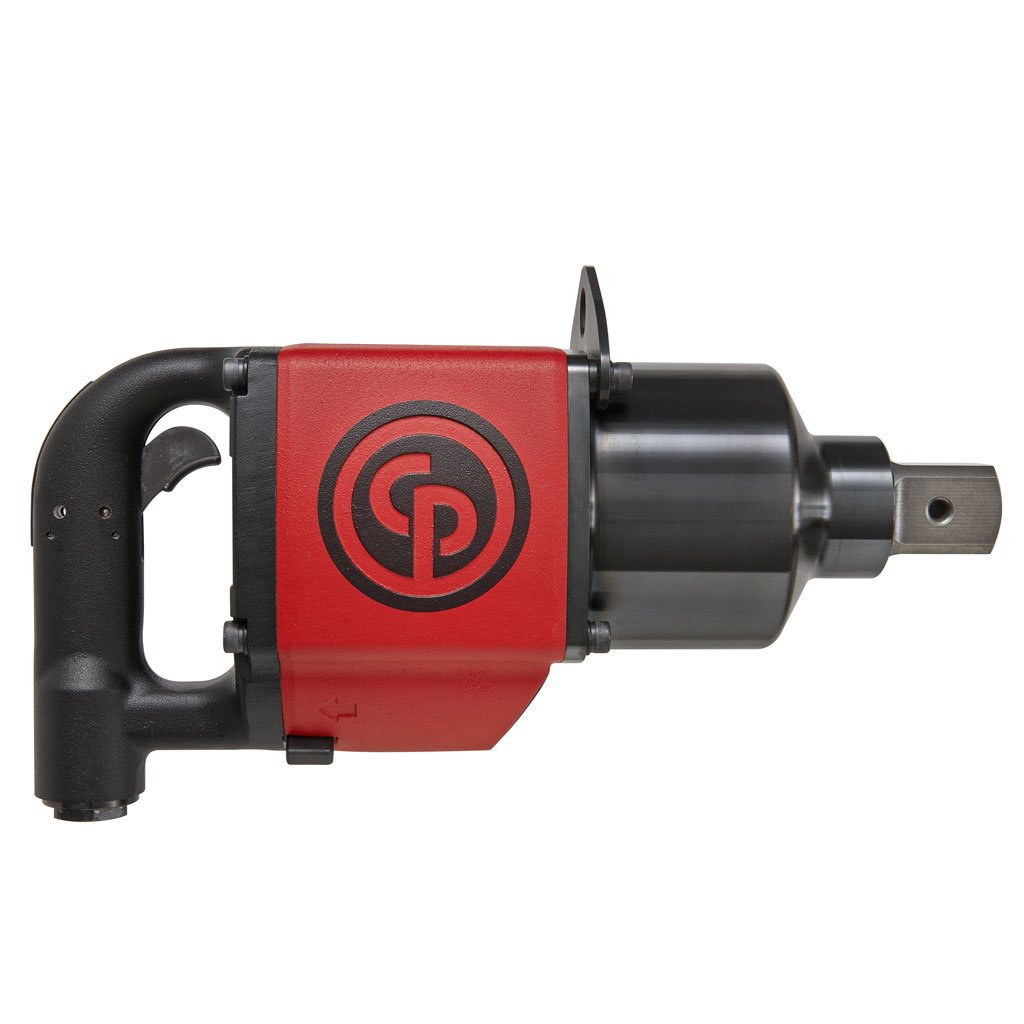

Chicago Pneumatic CP6135-D80 | Heavy-Duty Impact Wrench | 1-1/2" Drive, 1000–5500 Nm
Rated for 1000–5500 Nm (740–4055 ft.lbs), the CP6135-D80 is a 1-1/2" heavy-duty impact wrench from Chicago Pneumatic. It delivers very high torque from a compact, light body for super-industrial applications.
- Power-to-weight ratio of 500 Nm/kg
- Teasing trigger for smooth operation
- Premium build for demanding applications
- Maximum reverse torque: 8000 Nm (5900 ft.lbs); free speed 2800 rpm
- Net weight 16 kg (35.3 lb), length 408 mm (16 in); listed bolt size M48 (1-7/8 in)
- 1/2" air inlet with minimum hose 19 mm (5/8 in); actual air consumption 40 l/s (84.5 cfm)
- Specifications
- Features
| Part Number | CP6135-D80 |
| Brand | Chicago Pneumatic |
| Free Speed | 2800 rpm |
| Maximum Torque (Reverse) | 8000 Nm (5900 ft.lbs) |
| Length | 408 mm (16 in) |
| Air Inlet Thread | 1/2" |
| Working Torque Range | 1000–5500 Nm (740–4055 ft.lbs) |
| Net Weight | 16 kg (35.3 lb) |
| Air Consumption (Actual) | 40 l/s (84.5 cfm) |
| Sound Pressure | 98 dB(A) |
| Square Drive | 1-1/2" |
| Min. Hose Size | 19 mm (5/8 in) |
| Product Number | 6151590380 |
| Bolt Size | M48 (1-7/8 in) |
- Durable Pinless Rocking Dog clutch
- Robust aluminum body & Steel clutch housing
- Reversible and teasing steel trigger
