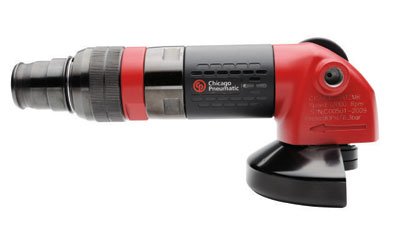

Chicago Pneumatic CP3450-12ACR4 | Pneumatic Angle Grinder | 100 mm (4 in) wheel, 810 W
Chicago Pneumatic rates the CP3450-12ACR4 air angle grinder at 810 W (1.1 hp) for 100 mm (4 in) wheels, with a free speed of 12,000 rpm. For industrial angle grinding, it offers a light body and maintenance intervals of up to 1,000 hours.
- Weighs 1.46 kg (3.21 lb) at 230.5 mm (9.22 in) long
- Air inlet thread 3/8 in with 10 mm minimum hose size; free speed air consumption 20.2 l/s (42.82 cfm)
- Actual air use of 17 l/s (36.04 cfm)
- Rated sound pressure of 93.9 dB(A) and vibration of 8.12 m/s²
- Ordering reference 6151604020
- Specifications
- Features
| Part Number | CP3450-12ACR4 |
| Brand | Chicago Pneumatic |
| Wheel size | 100 mm (4 in) |
| Power | 810 W (1.1 hp) |
| Free speed | 12,000 rpm |
| Net weight | 1.46 kg (3.21 lb) |
| Length | 230.5 mm (9.22 in) |
| Air inlet thread | 3/8 in |
| Min. hose size | 10 mm (3/8 in) |
| Air consumption (free speed) | 20.2 l/s (42.82 cfm) |
| Air consumption (actual) | 17 l/s (36.04 cfm) |
| Sound pressure level | 93.9 dB(A) |
| Vibration | 8.12 m/s² |
| Manufacturer product number | 6151604020 |
- IConstant lubrication bevel gear design
- Low profile angle head design
- Insulating composite cover
- 4" (100 mm) wheel capacity
- 1.1 hp (810 W) high torque motor
- 12,000 rpm free speed
- 3/8" spindle
- Rear exhaust
- Optional low vibration side handle
- Rotary valve ONLY for specific markets - NOT in accordance with ANSI and ISO requirement
