Brannan 10/670/0 | Gay-Lussac Alcoholmeter | 0 to 100 % vol, 250 mm

Name: Brannan 10/670/0 | Gay-Lussac Alcoholmeter | 0 to 100 % vol, 250 mm
Brand: Brannan
SKU: 10/670/0
Availability: OutOfStock

Part Number : 10/670/0

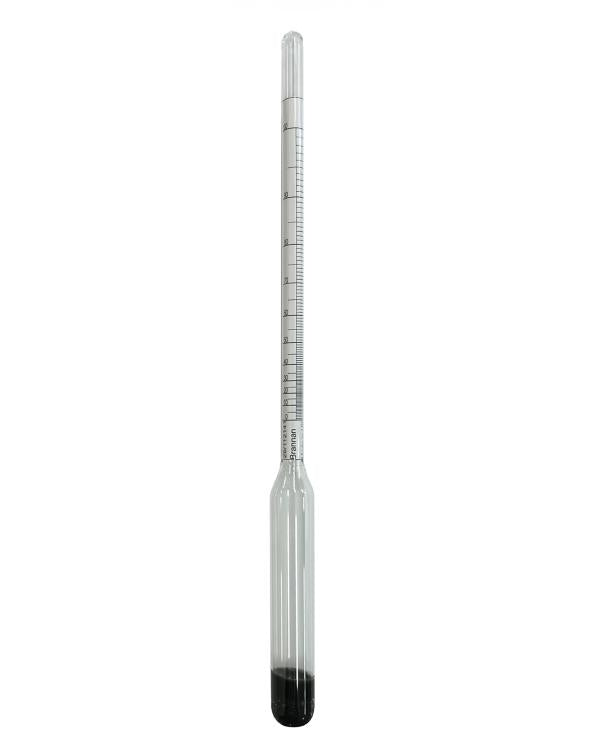

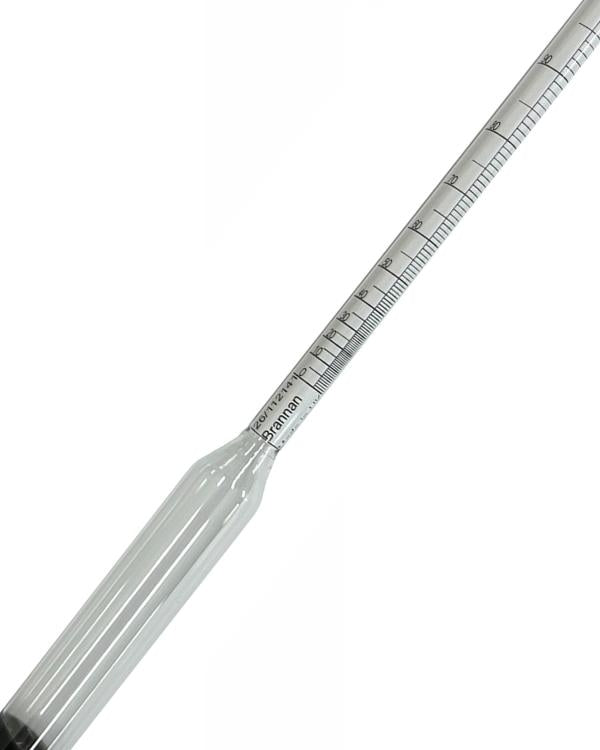

The Brannan 10/670/0 is a 250 mm glass alcoholmeter graduated on the Gay-Lussac scale from 0 to 100 % alcohol by volume in 1.0 divisions. Adjusted at 15 °C (60 °F), it is intended for distilling processes where strength is read directly as percentage volume. It is made in the UK and supplied in a protective, resealable plastic tube.

Key features

Gay-Lussac scale, 0 to 100 % vol
1.0 % divisions
Adjusted at 15 °C (60 °F)
250 mm soda glass body, 16 mm bulb
Manufactured in the UK

Brannan can supply it with a UKAS calibration certificate or a certificate traceable to a recognised national standard.

Availability: in stock

Specifications
Downloads

Part Number	10/670/0
Brand	Brannan
Scale	Gay-Lussac (% alcohol by volume)
Range	0 to 100 % vol
Divisions	1.0 %
Adjusted At	15 °C (60 °F)
Length	250 mm
Bulb Diameter	16 mm
Material	Soda glass, steel shot ballast, synthetic wax resin
Weight	29 g (incl. tube and instructions)
Packaging	Resealable plastic tube
Origin	Made in UK
