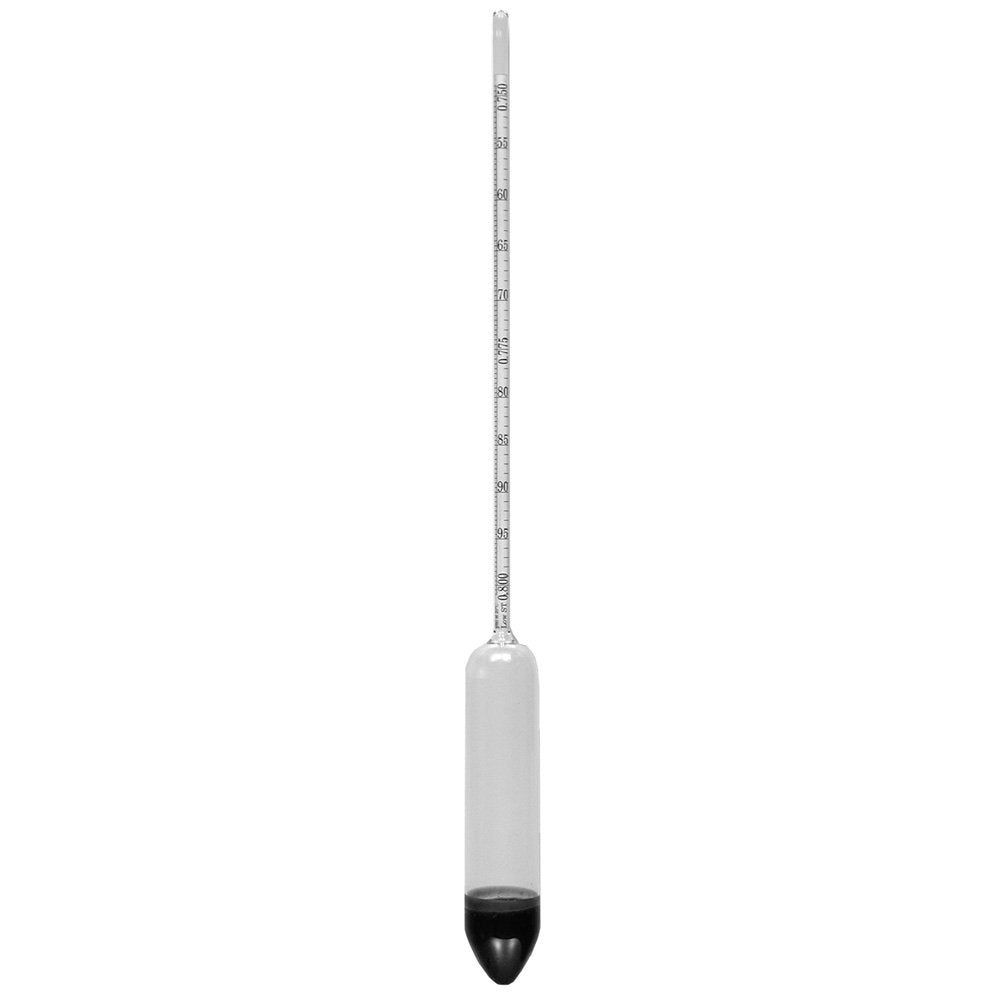

Brannan 10/344/0 | BS 718 M50 Density Hydrometer | 1.30 to 1.35 g/ml, 270 mm
Covering 1.30 to 1.35 g/ml, part number 10/344/0 is the M50 density hydrometer made by Brannan to BS 718:1991. Measuring 270 mm overall, the 10/344/0 is graduated every 0.001 g/ml and is adjusted at 20 °C for readings on liquids denser than water. Brannan makes the 10/344/0 in the UK and ships it in a protective, resealable plastic tube.
Key features
- M50 scale range 1.30 to 1.35 g/ml
- 0.001 g/ml graduations across 1.30–1.35 g/ml, accuracy 0.001 g/ml
- Overall length 270 mm on the 10/344/0
- Medium surface tension rating (10/344/0, 1.30–1.35 g/ml)
- UKAS or traceable calibration certificate available for 10/344/0
Calibration documents available for part 10/344/0 from Brannan: UKAS certificate, certificate traceable to a recognised national standard, or Statement of Conformity.
- Specifications
- Features
- Downloads
| Part Number | 10/344/0 |
| Brand | Brannan |
| Standard | BS 718:1991, M50 series |
| Range | 1.30 to 1.35 g/ml |
| Range Span | 0.050 g/ml |
| Divisions | 0.001 g/ml |
| Accuracy | 0.001 g/ml |
| Overall Length | 270 mm |
| Bulb Diameter | 20 to 24 mm |
| Approx. Weight | 42 g (incl. 14 g plastic tube) |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Adjusted At | 20 °C |
| Surface Tension | Medium |
| Country of Manufacture | UK |
- Generally speaking, BS 718: 1991 is in line with ISO 387 and ISO 649. It was calculated using the recognized grams per milliliter (g/mL) units.
- Suitable for a wide range of specific gravity
- Both low and medium surface tension options are available.
- includes a plastic tube for protection.
- 270 mm in length
