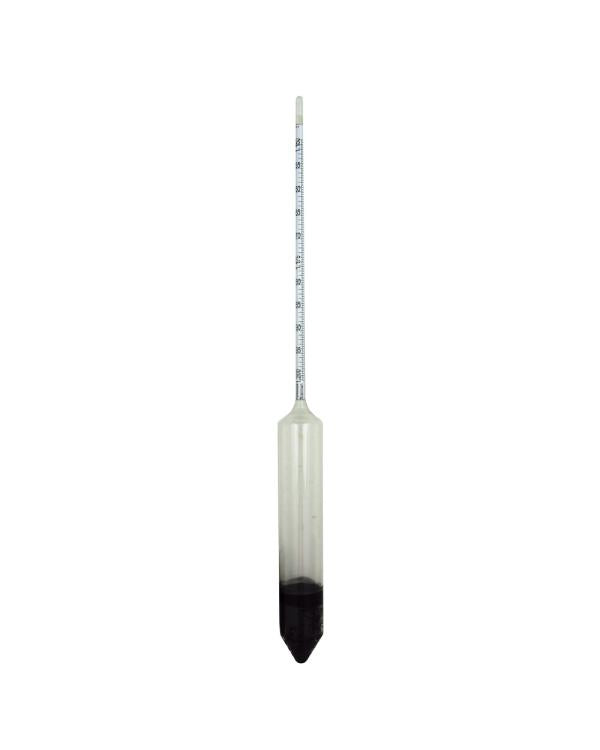

Brannan 09/118/0 | ASTM E 100 Hydrometer, Medium Surface Tension | 118H, 1.350 to 1.400 °SG
Brannan 09/118/0 is ASTM E 100 hydrometer 118H, covering 1.350 to 1.400 °SG in 0.0005 °SG divisions. It belongs to the ASTM 111H to 120H set intended for heavier liquids of medium surface tension; ASTM E 100 describes hydrometers using the API scale and others in degrees specific gravity.
Key features
- Adjusted at 60 °F
- 330 mm overall length, 26 mm bulb diameter
- Soda glass with steel shot ballast in synthetic wax resin
- Supplied in a protective, resealable plastic tube
- Made in UK
Brannan can supply this hydrometer with either a UKAS or a traceable calibration certificate.
- Specifications
- Downloads
| Part Number | 09/118/0 |
| Brand | Brannan |
| ASTM number | 118H |
| Range | 1.350 to 1.400 °SG |
| Division | 0.0005 |
| Standard | ASTM E 100 |
| Adjusted at | 60 °F |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Overall length | 330 mm |
| Bulb diameter | 26 mm |
| Approx weight | 139 g (incl. 45 g protective tube) |
| Origin | Made in UK |
