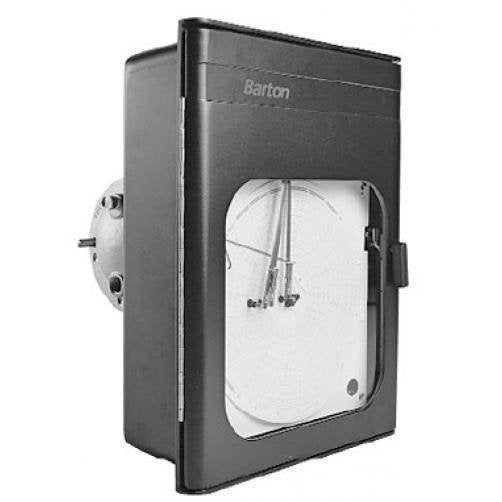

Barton Single Pen Temperature Recorder, Model 242E, Temperature Range: 0-100 DEG C, Battery Driven Chart Drive: 11 Selectable Speeds
Part No. 242E/0-100C/Battery
Genuine Barton 242E/0-100C/Battery barton 242e temperature recorder, in stock at General Tech Services LLC, UAE. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
The Barton Model 242E is a 12-inch (300mm) chart temperature and pressure recorder offered in one- to four-pen configurations, built for continuous, unattended logging of process pressure or temperature in the field. Perfected construction techniques ensure linearity, low hysteresis and a long service life, backed by a die-cast aluminum case with stainless steel linkage that stands up to industrial and outdoor environments. A disposable felt-tip inking system keeps maintenance simple, and the standard 2-inch pipe mount lets it install directly onto existing process piping.
Ready to order the 242E/0-100C/Battery? Speak to our team. Call +971 6 5436933
Key Benefits
-
Same proven 242E construction, configured for continuous temperature logging
-
Die-cast aluminum case with stainless steel linkage for industrial and outdoor duty
-
Standard 12 inch (300mm) circular charts for easy, low-cost record replacement
-
Disposable felt-tip inking system keeps maintenance simple
-
Battery-driven or mechanical chart drive options to match your logging interval
Who This Product Is Best For
-
Process sites logging temperature continuously without power or data infrastructure
-
Facilities standardising on Barton chart recorders across pressure and temperature points
-
Remote or unmanned sites needing a battery-driven, multi-speed chart record
How to Specify & Commission It
-
Confirm the recorder's range and chart-drive type match your process and required logging interval.
-
Mount the unit on its 2 inch pipe connection at the measurement point.
-
Load a chart of the correct range and fit a fresh felt-tip pen for each pen position.
-
Set the chart drive (wind the mechanical clock or fit a fresh battery) and confirm the pen traces cleanly before leaving it logging.
Frequently Asked Questions
What temperature range does this Barton 242E cover?
This unit is rated for a temperature range of 0-100 Deg C, with a battery driven chart drive: 11 selectable speeds.
How many pens does the 242E have?
This is a single-pen configuration; the 242E platform is also offered in two-, three- and four-pen versions for recording multiple parameters on one chart.
What size chart does it use?
A standard 12 inch (300mm) nominal diameter circular chart.
How is the recorder mounted?
On a standard 2 inch pipe mount, so it installs directly onto existing process piping.
Mechanical or battery chart drive - which should I choose?
Mechanical drives (2hr/8hr or 24hr/7day) wind up and need no power source; battery driven units with 11 selectable speeds give more flexibility over the logging interval but need a working battery. Pick based on your site's logging cycle and power access.
Should I choose the 242E/0-100C/Battery or the 242E/0-100C/Mechanical-247?
Compare the headline specifications above against your process requirements. The 242E/0-100C/Mechanical-247 differs in chart-drive configuration from the 242E/0-100C/Battery; contact our team and we'll confirm the exact match for your application.
