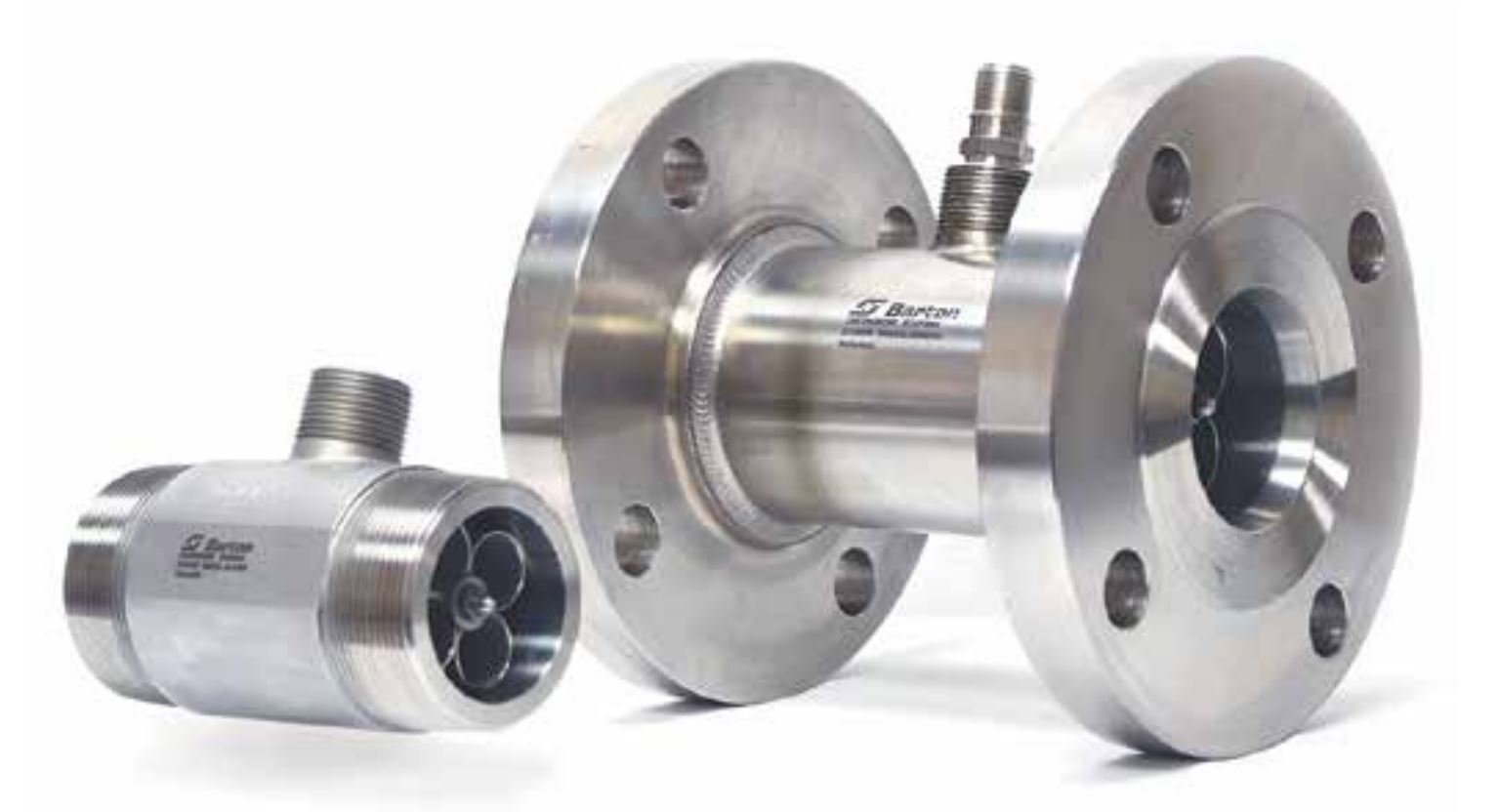

Barton 7146 RF meter, meter Size :1-1/2 inch,End Connection Size :1 inch,Flow Rate :13-130 US GPM

Genuine Barton instruments from General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping available.

Part No. 7146

Product Overview

The Barton 7146 is a Cameron BARTON Series 7000 liquid turbine flow meter for hydrocarbon measurement. This 1-1/2-inch meter covers a flow range of 13–130 US GPM, providing approximately a 10:1 flow range.

Liquid passes through a diffuser onto a multi-blade turbine rotor. Rotor speed is proportional to the liquid flow rate, while a pickup senses each blade tip and produces a sine-wave signal proportional to flow. The signal can be used with compatible digital readouts, totalizers, preamplifiers and flow computers.

The Barton 7146 has a listed 1-inch end connection size. Its symmetrical, bidirectional design supports reverse-flow applications without reducing the stated accuracy or capacity.

Rated linearity is ±0.25% of reading over the stated flow range, with ±0.15% over limited ranges. Repeatability is ±0.02% of reading. The listed application is hydrocarbon measurement, with typical uses including crude and refined product lines, loading and transfer skids, chemical injection and allocation metering.

Before ordering, confirm the required normal and maximum flow rates, meter and line size, connection requirements, fluid, pressure rating and compatible electronics. The Series 7000 range includes flanged and threaded connection configurations, so the required connection should be confirmed for the specific installation.

General Tech Services supplies genuine Barton instruments to industrial customers across Saudi Arabia from its Dammam office. Provide the part number, quantity and delivery city to confirm availability, compatibility and pricing.

Key Benefits

• Measures 13–130 US GPM in a 1-1/2-inch meter
• ±0.25% of reading linearity over the stated flow range
• ±0.15% linearity over limited ranges
• ±0.02% repeatability
• Bidirectional design supports reverse-flow applications
• Sine-wave pickup output for compatible digital readouts, totalizers and flow computers
• Cameron BARTON Series 7000 liquid turbine meter design
• Suitable for hydrocarbon measurement applications
• Free Saudi Arabia shipping available

Who This Product Is Best For

• Oil and gas metering and allocation teams
• Terminal, loading and transfer operations
• Process and instrumentation engineers
• Maintenance teams replacing a like-for-like Barton meter
• Industrial customers requiring a 1-1/2-inch liquid turbine meter
• Saudi Arabia buyers sourcing genuine Barton instrumentation

How to Install & Use It

1. Confirm that the required normal and maximum flow rates are within the 13–130 US GPM range.
2. Verify the meter size, line size, fluid characteristics, pressure requirements and connection arrangement before installation.
3. Install the meter with the recommended straight pipe arrangement upstream and downstream. Use a suitable strainer where debris may be present.
4. Connect the pickup to the compatible preamplifier, totalizer or flow computer.
5. Enter the applicable meter K-factor into the connected instrumentation according to the meter documentation.
6. Fill the line gradually and verify the flow reading at normal operating conditions.

Frequently Asked Questions

What flow range does the Barton 7146 turbine flow meter cover?

The Barton 7146 covers 13–130 US GPM in a 1-1/2-inch meter size.

How accurate is the Barton 7146?

Rated linearity is ±0.25% of reading over the stated flow range, with ±0.15% over limited ranges. Repeatability is ±0.02% of reading.

Can the Barton 7146 measure reverse flow?

Yes. The symmetrical, bidirectional Series 7000 design supports reverse-flow applications without reducing the stated accuracy or capacity.

What output does the Barton 7146 provide?

The pickup produces a sine-wave signal proportional to flow. It can be connected to compatible preamplifiers, totalizers, digital readouts or flow computers.

What is the Barton 7146 used for?

The listed application is hydrocarbon measurement. Typical uses include crude and refined product lines, product transfer, loading operations, chemical injection and allocation metering.

What is the difference between the Barton 7146 and 7246?

Both models are 1-1/2-inch turbine meters covering 13–130 US GPM. The Barton 7146 has a listed 1-inch end connection, while the Barton 7246 has a listed 2-inch end connection. Selection should be based on the required flow range, meter size and installation connection requirements.

What information should I provide when requesting a quote?

Provide the model number, quantity and delivery city, together with relevant application details such as fluid, required flow range and pressure requirements. This helps confirm the appropriate configuration and availability.

How much does the Barton 7146 cost?

Pricing is quote-based. Contact General Tech Services LLC for current pricing and lead-time information.
