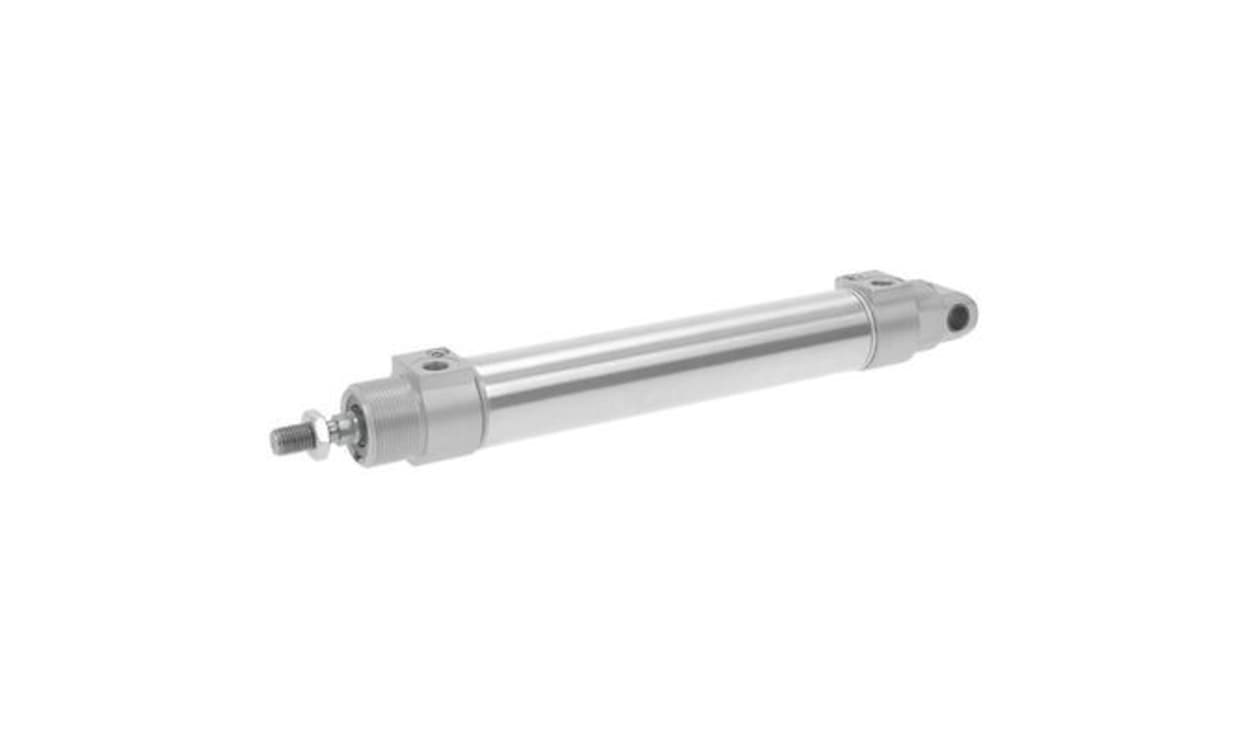

AVENTICS R481609429 Roundline Cylinder - , 32mm Bore, 500mm Stroke, RPC Series, Double Acting

Name: AVENTICS R481609429 Roundline Cylinder - , 32mm Bore, 500mm Stroke, RPC Series, Double Acting
Brand: Aventics
SKU: R481609429
Availability: OutOfStock

Part Number : R481609429

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series RPC round profile cylinder is engineered for versatility and reliability across a range of applications. Designed specifically for machine automation, this cylinder excels in both standard and demanding environments, including food industry settings, where hygiene and performance are paramount. Its range of connection options facilitates integration into diverse systems, while the food-grade lubricants ensure compliance with industry standards. With an easy-to-clean design, the Series RPC is not only practical but also optimised for efficiency. This product combines advanced technology with robust materials, resulting in a solution that meets the rigorous demands of modern industrial processes.

Compatible with various connection types to enhance installation flexibility
Double-acting design ensures efficient operation in multiple applications
Pneumatic adjustable cushioning for enhanced performance and durability
ATEX-certified options available, meeting stringent safety requirements
Stainless steel piston rod and cylinder tube for exceptional strength and corrosion resistance
Environmental standards adhered to for reliability in various industrial settings
Compact dimensions allow for installation where space is limited
Low working pressure enhances energy efficiency and reduces wear

Brand	AVENTICS
Manufacturer Series	RPC
Model Number p	R481609429
Stroke	500mm
Bore	32mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6431
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R481609429 Roundline Cylinder - , 32mm Bore, 500mm Stroke, RPC Series, Double Acting

DOWNLOAD CATALOG

R481609429 Datasheet - R481609429 A700000012575852

R481609429 Datasheet - R481609429 A700000012587720
