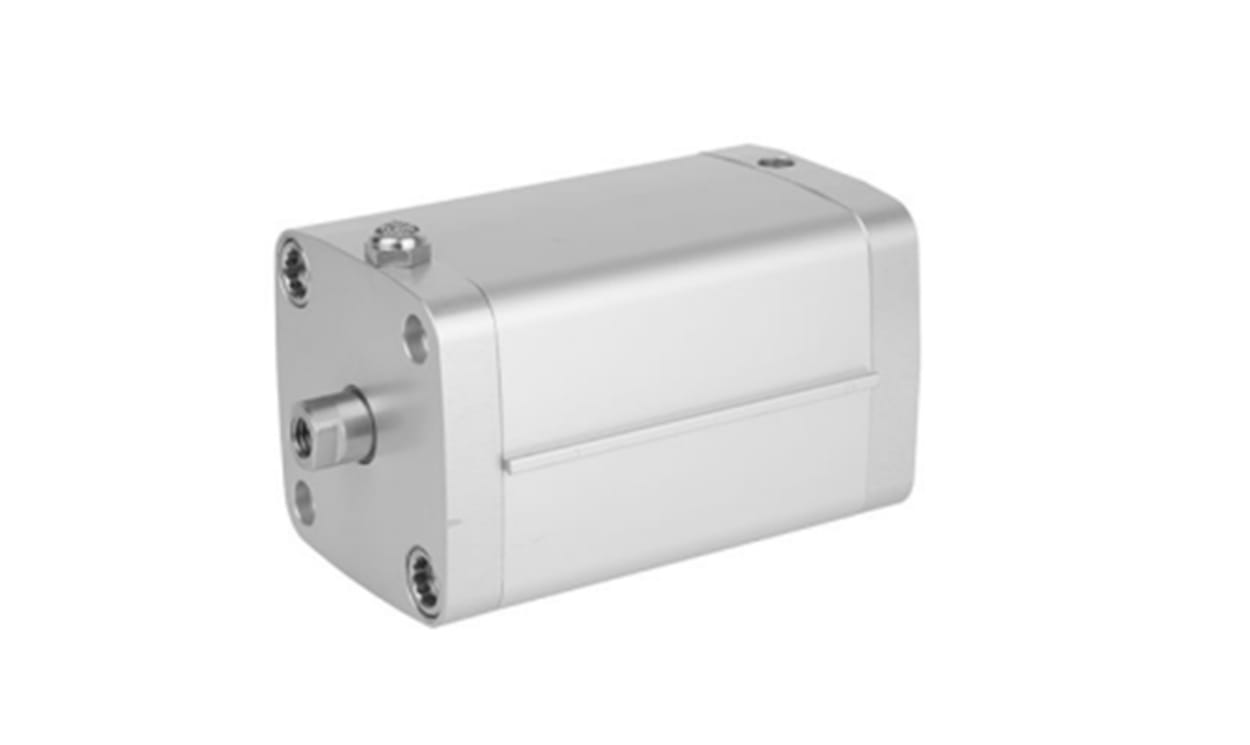

AVENTICS R480668933 Pneumatic Compact Cylinder - , 20mm Bore, 15mm Stroke, CCL-IC Series, Single Acting

Name: AVENTICS R480668933 Pneumatic Compact Cylinder - , 20mm Bore, 15mm Stroke, CCL-IC Series, Single Acting
Brand: Aventics
SKU: R480668933
Availability: OutOfStock

Part Number : R480668933

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IC Series Cylinders with their compact and clean design can be used in a wide range of applications. Their smooth surface together with their materials, such as anodized aluminium, stainless steel, and NSF-H1 lubricants, make the cylinder ideal for the demanding requirements in the food and beverage industry. It offers an universal mounting concept for easy assembly, without the need for additional mounting elements.

Easy to clean anodized surfaces
Scrapers and lubricants are approved for food applications
Hygienic protective caps for unused mounting holes

Brand	AVENTICS
Manufacturer Series	CCL-IC
Model Number p	R480668933
Bore	20mm
Action	Single
Stroke	15mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
