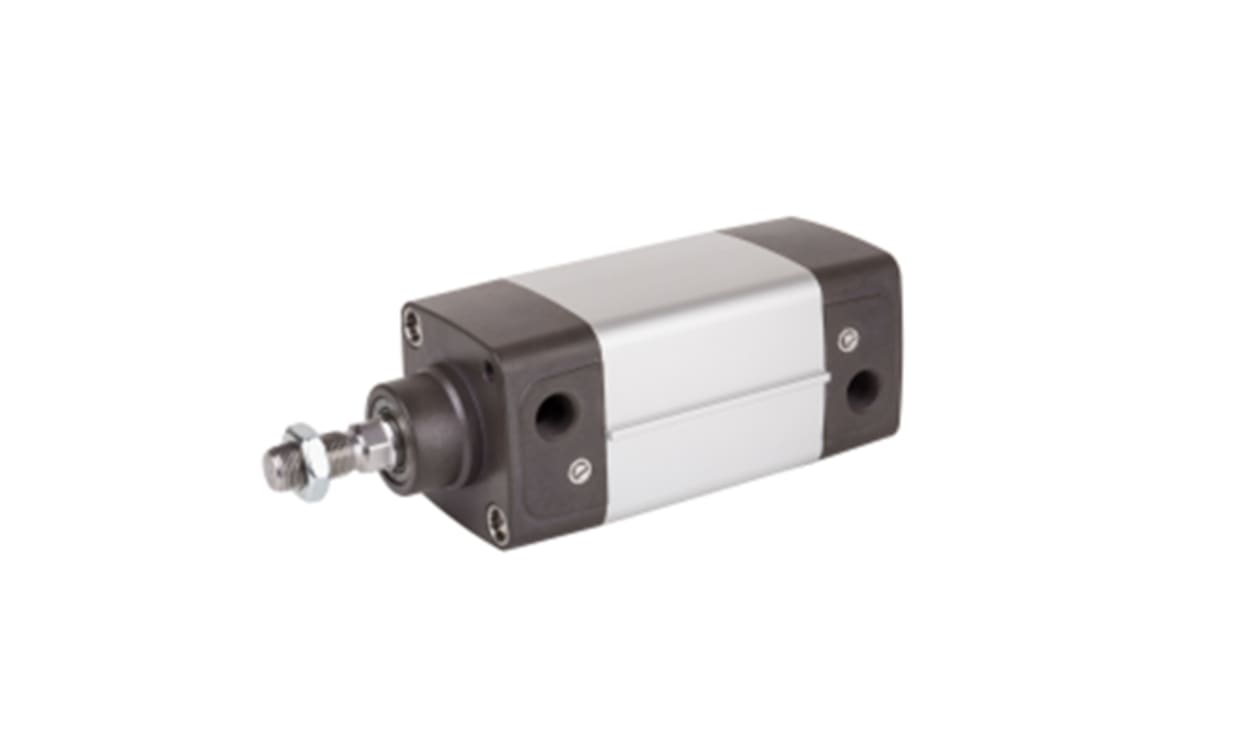

AVENTICS R480668881 Pneumatic Compact Cylinder - , 100mm Bore, 20mm Stroke, CCL-IC Series, Double Acting

Name: AVENTICS R480668881 Pneumatic Compact Cylinder - , 100mm Bore, 20mm Stroke, CCL-IC Series, Double Acting
Brand: Aventics
SKU: R480668881
Availability: OutOfStock

Part Number : R480668881

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IC Series Cylinders with their compact and clean design can be used in a wide range of applications. Their smooth surface together with their materials, such as anodized aluminium, stainless steel, and NSF-H1 lubricants, make the cylinder ideal for the demanding requirements in the food and beverage industry. It offers an universal mounting concept for easy assembly, without the need for additional mounting elements.

Easy to clean anodized surfaces
Scrapers and lubricants are approved for food applications
Hygienic protective caps for unused mounting holes

Brand	AVENTICS
Manufacturer Series	CCL-IC
Model Number p	R480668881
Action	Double
Stroke	20mm
Bore	100mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
