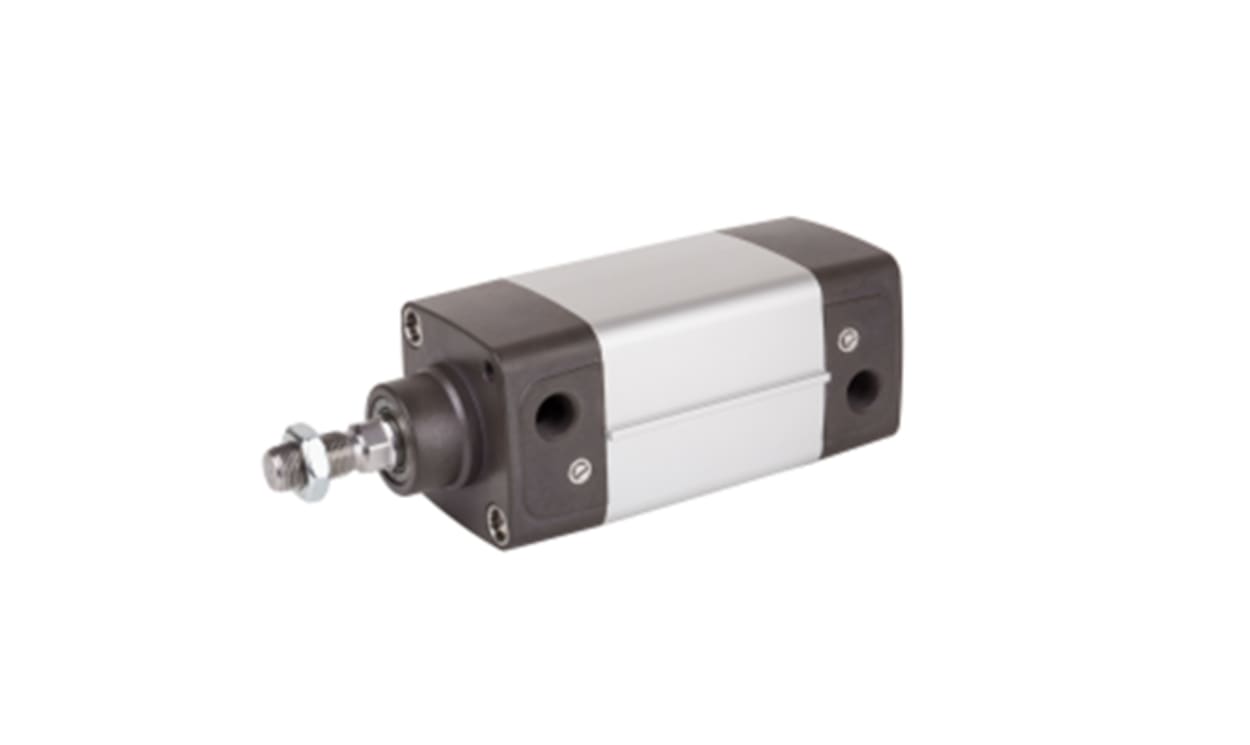

AVENTICS R480668857 | CCL-IC Compact Cylinder | 63 mm Bore, 25 mm Stroke, Double Acting

Name: AVENTICS R480668857 | CCL-IC Compact Cylinder | 63 mm Bore, 25 mm Stroke, Double Acting
Brand: Aventics
SKU: R480668857
Availability: OutOfStock

Part Number : R480668857

Stroke 25 mm, bore 63 mm, double acting: the AVENTICS R480668857 belongs to the CCL-IC compact cylinder range and uses G 1/8 ports. The 63 x 25 mm model has a female piston rod thread and elastic cushioning.

Size 63 mm bore x 25 mm stroke, R480668857
Air connection G 1/8 on the R480668857
End-position cushioning: elastic (63 mm bore, 25 mm stroke)
Female piston rod thread for the 63 x 25 mm CCL-IC
Max. pressure 10 bar; temperature range -20 °C to +80 °C for R480668857

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CCL-IC Series Cylinders with their compact and clean design can be used in a wide range of applications. Their smooth surface together with their materials, such as anodized aluminium, stainless steel, and NSF-H1 lubricants, make the cylinder ideal for the demanding requirements in the food and beverage industry. It offers an universal mounting concept for easy assembly, without the need for additional mounting elements.

Easy to clean anodized surfaces
Scrapers and lubricants are approved for food applications
Hygienic protective caps for unused mounting holes

Brand	AVENTICS
Manufacturer Series	CCL-IC
Model Number p	R480668857
Bore	63mm
Action	Double
Stroke	25mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R480668857 | CCL-IC Compact Cylinder | 63 mm Bore, 25 mm Stroke, Double Acting

DOWNLOAD CATALOG

R480668857 Datasheet - R480668857 A700000012666772
