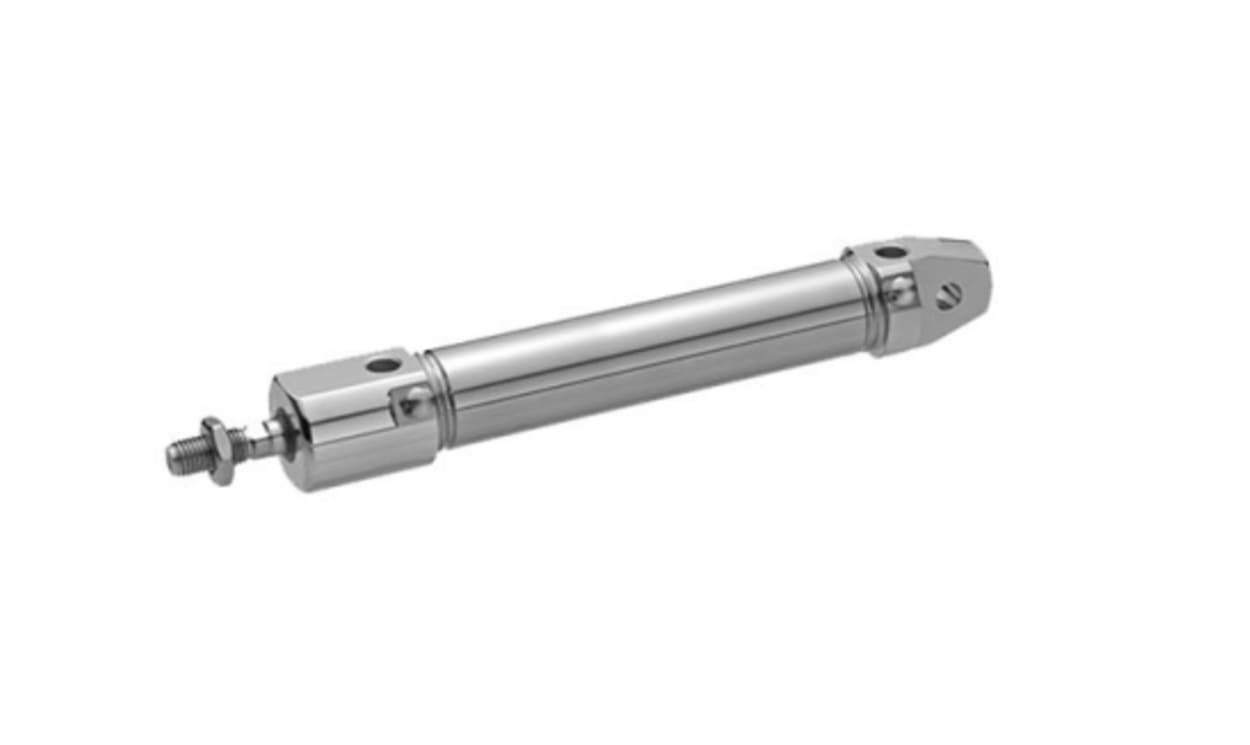

AVENTICS R480651405 | CSL-RD Roundline Pneumatic Cylinder | 16 mm Bore, 200 mm Stroke, M5 Ports

Name: AVENTICS R480651405 | CSL-RD Roundline Pneumatic Cylinder | 16 mm Bore, 200 mm Stroke, M5 Ports
Brand: Aventics
SKU: R480651405
Availability: OutOfStock

Part Number : R480651405

Part R480651405 from AVENTICS is a double-acting CSL-RD roundline cylinder sized at 16 mm bore, 200 mm stroke. ISO 6432 conformity and a 10 bar pressure limit apply to R480651405.

R480651405: 16 mm bore, 200 mm stroke
Port size M5 on part R480651405
Piston rod thread: male (R480651405)
Pneumatic adjustable cushioning for the 200 mm stroke
Rated ambient -20 to +80 °C for part R480651405
Belongs to the CSL-RD series (double acting), R480651405

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651405
Bore	16mm
Stroke	200mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R480651405 | CSL-RD Roundline Pneumatic Cylinder | 16 mm Bore, 200 mm Stroke, M5 Ports

DOWNLOAD CATALOG

R480651405 Datasheet - R480651405 A700000012670292

R480651405 Datasheet - R480651405 A700000012670475
