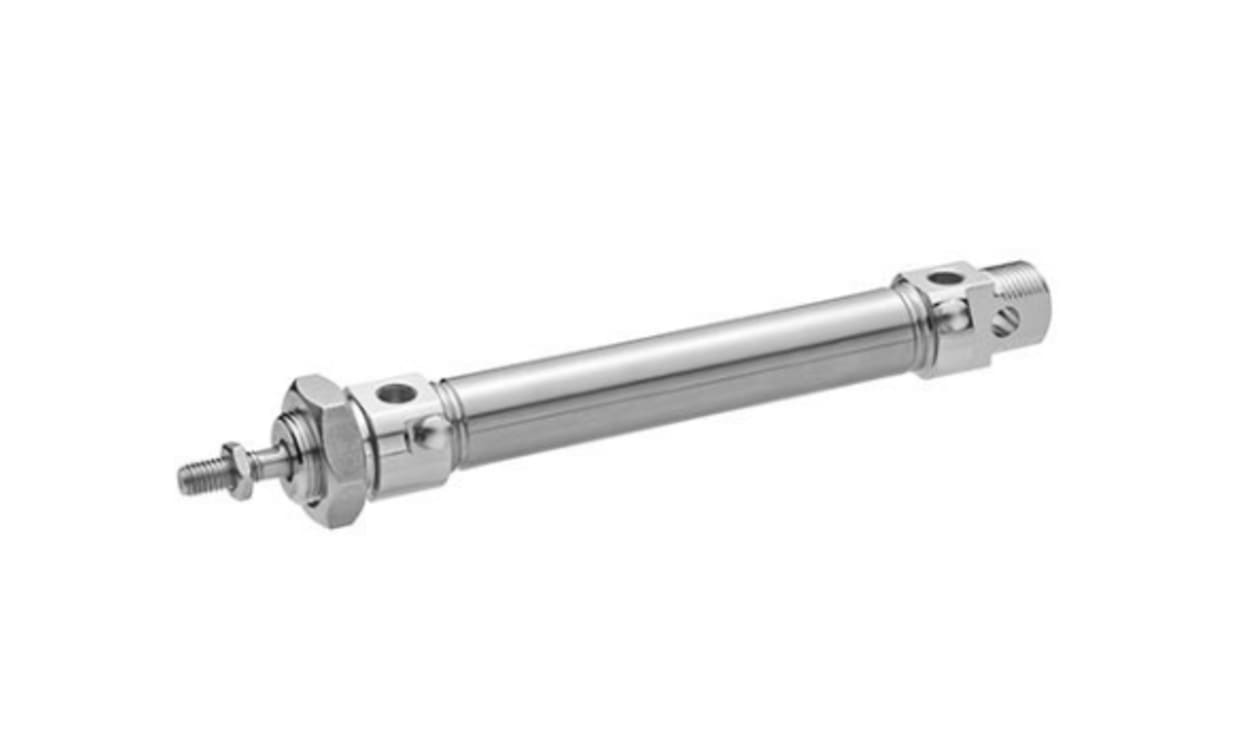

AVENTICS R480651384 | CSL-RD Roundline Pneumatic Cylinder | 20 mm Bore, 250 mm Stroke, G 1/8 Ports

Name: AVENTICS R480651384 | CSL-RD Roundline Pneumatic Cylinder | 20 mm Bore, 250 mm Stroke, G 1/8 Ports
Brand: Aventics
SKU: R480651384
Availability: OutOfStock

Part Number : R480651384

This 20 mm x 250 mm (bore x stroke) unit, part number R480651384, is a double-acting AVENTICS CSL-RD roundline cylinder. Designed to ISO 6432, this 250 mm stroke model accepts a maximum of 10 bar.

R480651384: 20 mm bore, 250 mm stroke
Port size G 1/8 on part R480651384
Piston rod thread: male (R480651384)
Cushioning: pneumatic adjustable, 20 x 250 mm
Rated ambient -20 to +80 °C for part R480651384
Belongs to the CSL-RD series (double acting), R480651384

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651384
Stroke	250mm
Bore	20mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R480651384 | CSL-RD Roundline Pneumatic Cylinder | 20 mm Bore, 250 mm Stroke, G 1/8 Ports

DOWNLOAD CATALOG

R480651384 Datasheet - R480651384 A700000012669895

R480651384 Datasheet - R480651384 A700000012670105
