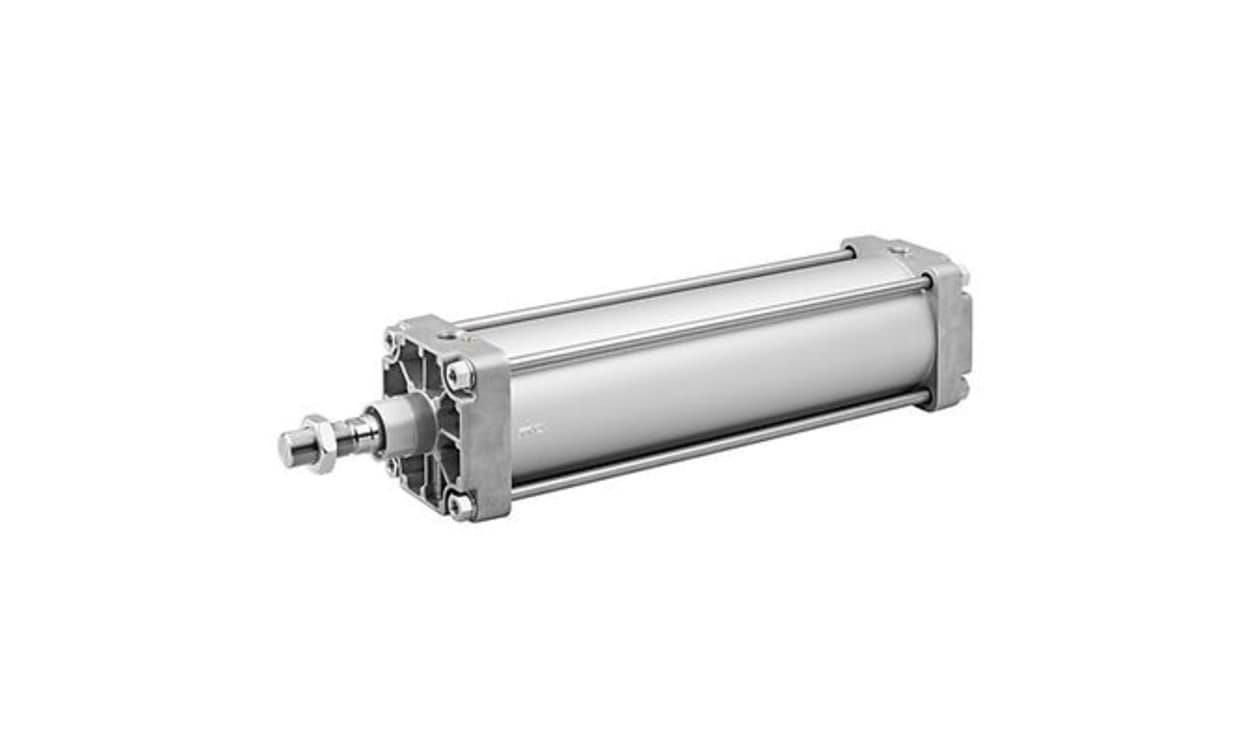

AVENTICS R480627301 Pneumatic Piston Rod Cylinder - , 160mm Bore, 200mm Stroke, ITS Series, Double Acting

Name: AVENTICS R480627301 Pneumatic Piston Rod Cylinder - , 160mm Bore, 200mm Stroke, ITS Series, Double Acting
Brand: Aventics
SKU: R480627301
Availability: OutOfStock

Part Number : R480627301

Availability: Sold out

Detailed Description
Specifications

The Aventics tie rod cylinder ISO 15552, Series ITS, is expertly engineered to handle extremely large loads while ensuring efficient movement and precise control. Designed to meet the demanding needs of industrial applications, this cylinder is highly adaptable, providing exceptional performance in a variety of environments. The double-acting functional principle guarantees reliable operation, coupled with pneumatic adjustable cushioning that enhances comfort and safety. With a robust construction, including a stainless steel piston rod and die-cast aluminium components, this cylinder promises durability alongside optimised operational efficiency. The series ITS also allows for a wide range of configuration options, enabling seamless integration into existing systems and a customised solution tailored to meet specific requirements. Whether used in heavy-duty processes or precision tasks, this cylinder is a dependable choice for maximizing productivity and efficacy.

Pneumatic adjustable cushioning for improved comfort and safety
Configured to meet diverse application requirements
Durable construction with stainless steel and die-cast aluminium materials
Double-acting principle for consistent and reliable performance
Operable within a wide ambient and medium temperature range
Options for ATEX-certified configurations for hazardous environments
Lightweight design facilitates easier installation and handling
Optimised for efficient movement of large loads with minimal effort

Brand	AVENTICS
Manufacturer Series	ITS
Model Number p	R480627301
Action	Double
Stroke	200mm
Bore	160mm
Port Connection	G 3/4
Pneumatic Connection	G 3/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
