AVENTICS R480627300 Pneumatic Piston Rod Cylinder - , 160mm Bore, 160mm Stroke, ITS Series, Double Acting

Name: AVENTICS R480627300 Pneumatic Piston Rod Cylinder - , 160mm Bore, 160mm Stroke, ITS Series, Double Acting
Brand: Aventics
SKU: R480627300
Availability: OutOfStock

Part Number : R480627300

Availability: Sold out

Detailed Description
Specifications

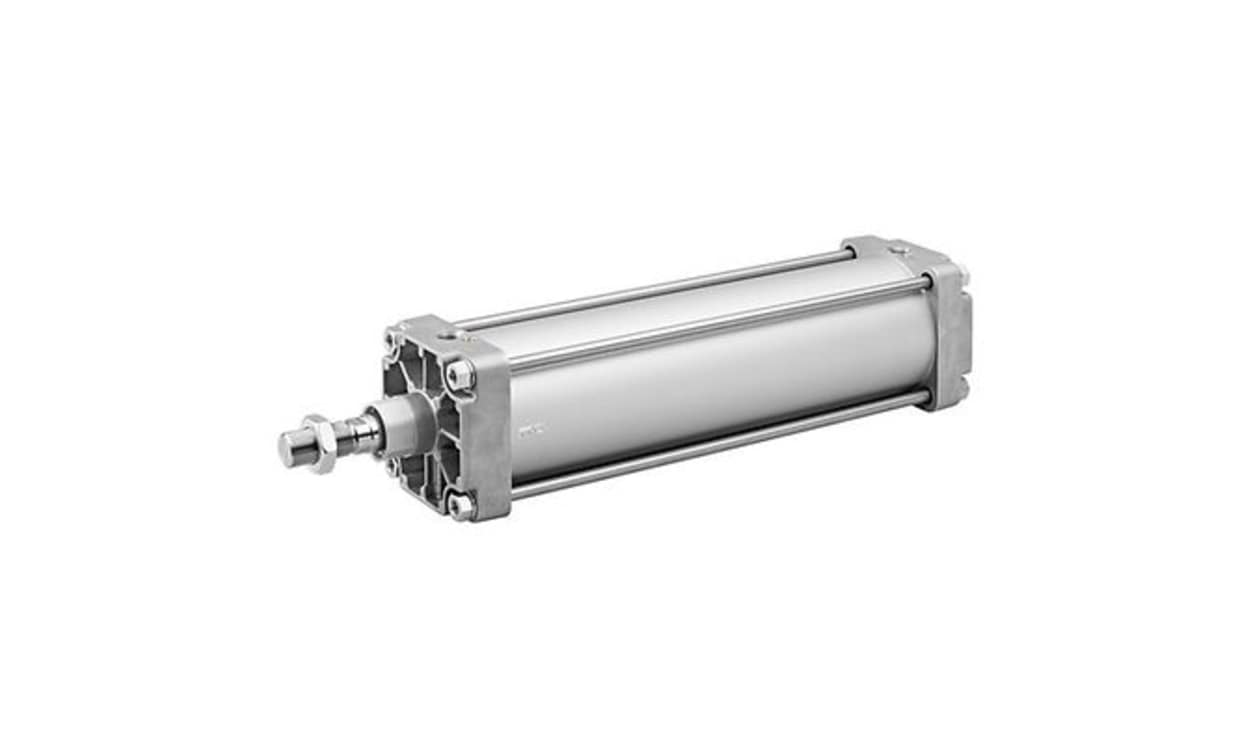

The Aventics tie rod cylinder from the series ITS conforms to the ISO 15552 standard, demonstrating exceptional capability in managing substantial loads with precision and efficiency. Designed for industrial applications, the cylinder features a robust double-acting mechanism and is easily configurable to suit diverse operational needs. With pneumatic adjustable cushioning and a magnetic piston, it ensures smooth operation under demanding conditions, while its ATEX-certification offers additional safety in potentially explosive environments. This cylinder not only meets high-performance standards but also presents a range of temperature and pressure tolerances that make it a versatile choice for various applications. The combination of durable materials, including stainless steel and die-cast aluminium, guarantees longevity and reliability, making it an invaluable asset in any industrial setting.

Offers a reliable double-acting functional principle
Configurable design tailored to specific application requirements
Provides excellent cushioning control for reduced impact and noise
Constructed with high-quality materials for durability and longevity
Wide operational temperature range enhances environmental adaptability
Low maintenance requirements contribute to cost efficiency
Optional ATEX certification ensures compliance in hazardous environments
Lightweight design aids in easy installation and transport

Brand	AVENTICS
Manufacturer Series	ITS
Model Number p	R480627300
Stroke	160mm
Bore	160mm
Action	Double
Pneumatic Connection	G 3/4
Port Connection	G 3/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
