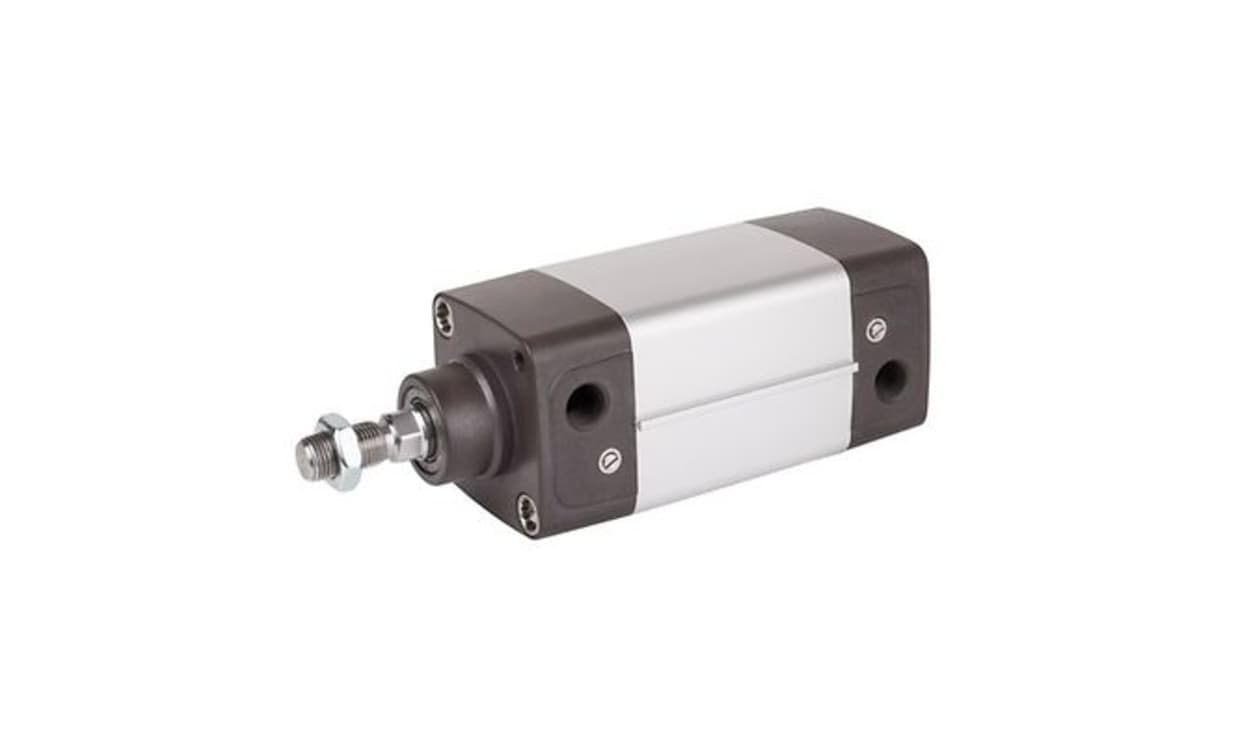

AVENTICS R480060082 | CCL-IS ISO 15552 Pneumatic Cylinder | 125 mm Bore, 80 mm Stroke, Double Acting
AVENTICS R480060082 | CCL-IS ISO 15552 Pneumatic Cylinder | 125 mm Bore, 80 mm Stroke, Double Acting
Part Number : R480060082
For applications needing 80 mm of stroke from a 125 mm bore, AVENTICS offers the R480060082, a double-acting CCL-IS cylinder built to ISO 15552. The R480060082 is ported G 1/2 and rated to 10 bar maximum.
- Size 125/80 mm (bore/stroke), CCL-IS series
- R480060082 ported G 1/2
- Uses pneumatic cushioning - R480060082
- Male thread on the piston rod of the R480060082
- -20 °C to +80 °C at up to 10 bar (R480060082)
- Built to ISO 15552 in the CCL-IS line, 125/80 mm
For pricing, please contact our experts.
