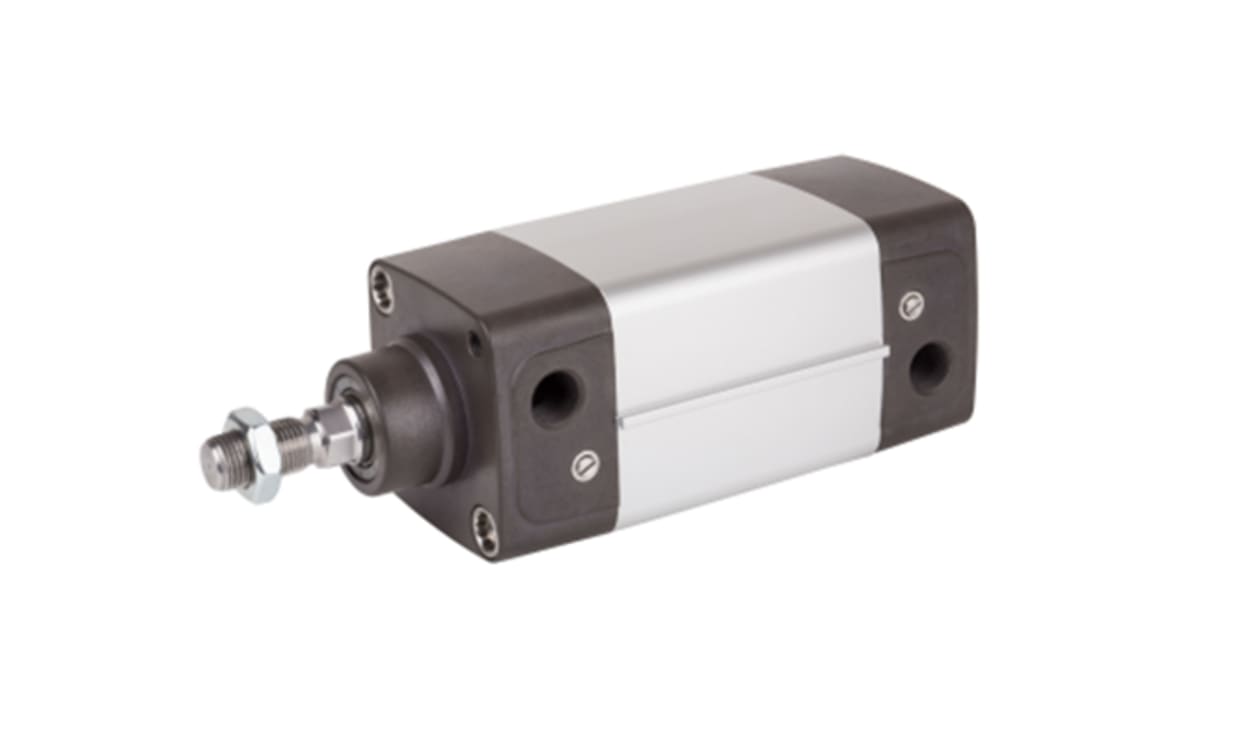

AVENTICS R480060078 | CCL-IS ISO 15552 Pneumatic Cylinder | 100 mm Bore, 400 mm Stroke, Double Acting
Part Number : R480060078
With a 100 mm bore and a 400 mm stroke, the AVENTICS R480060078 is a double-acting CCL-IS series cylinder to ISO 15552. On the 100 x 400 mm R480060078, air is supplied through G 1/2 ports and the cylinder uses adjustable pneumatic cushioning.
- 100 mm bore x 400 mm stroke (R480060078)
- G 1/2 pneumatic and port connections on the R480060078
- Adjustable pneumatic cushioning on the R480060078
- Male piston rod thread, R480060078
- Max. operating pressure 10 bar; -20 °C to +80 °C for the R480060078
- ISO 15552, CCL-IS series - 100 x 400 mm
For pricing, please contact our experts.
