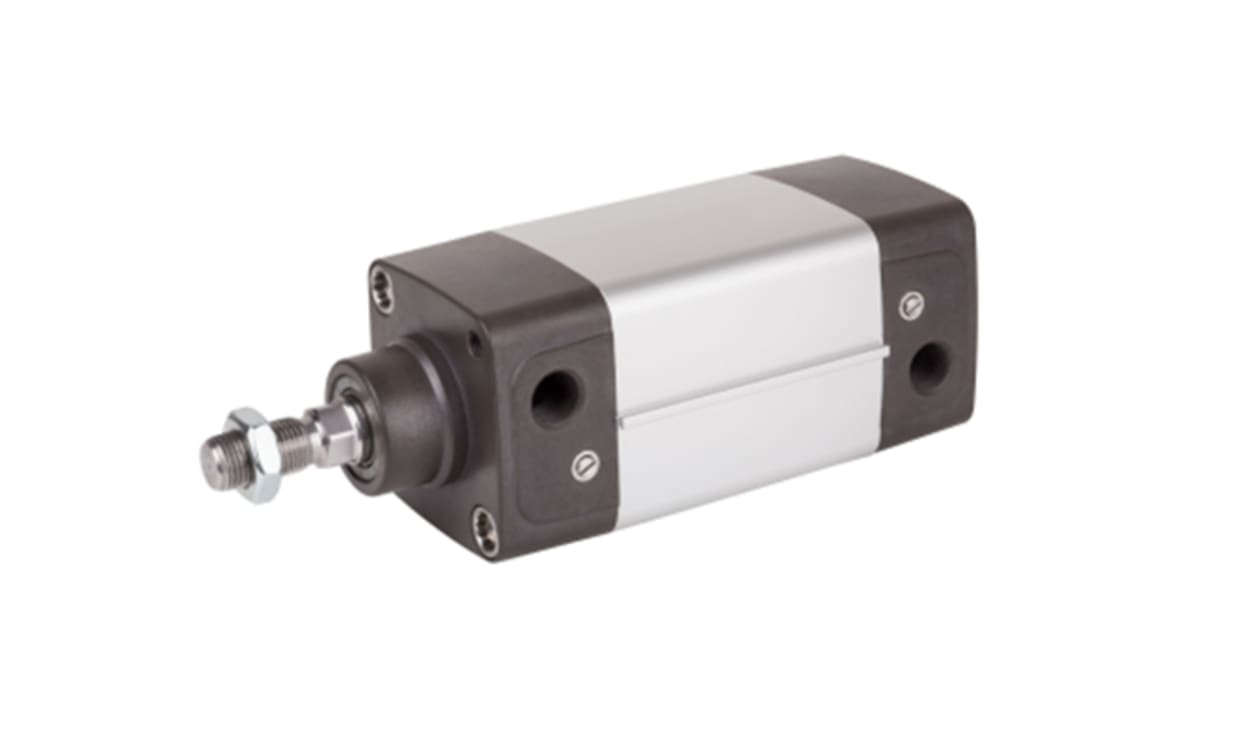

AVENTICS R480060069 Pneumatic Piston Rod Cylinder - , 80mm Bore, 500mm Stroke, CCL-IS Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R480060069 Pneumatic Piston Rod Cylinder - , 80mm Bore, 500mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480060069 Pneumatic Piston Rod Cylinder - , 80mm Bore, 500mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060069
Availability: OutOfStock

Part Number : R480060069

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IS Series Cylinders complement the PRA series in the area of hygienic design and meet all requirements for use in the food sector. A special feature is the option to configure the air connections for supply and exhaust on just the base, which increases flexibility when designing the system's tubing concept.

Easy to clean anodized surfaces
Scrapers and lubricants are approved for food applications
Hygienic protective caps for unused mounting holes
Selection from elastic or pneumatic cushioning possible

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060069
Stroke	500mm
Action	Double
Bore	80mm
Port Connection	G 3/8
Pneumatic Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
