AVENTICS R480060019 Pneumatic Piston Rod Cylinder - , 40mm Bore, 80mm Stroke, CCL-IS Series, Double Acting

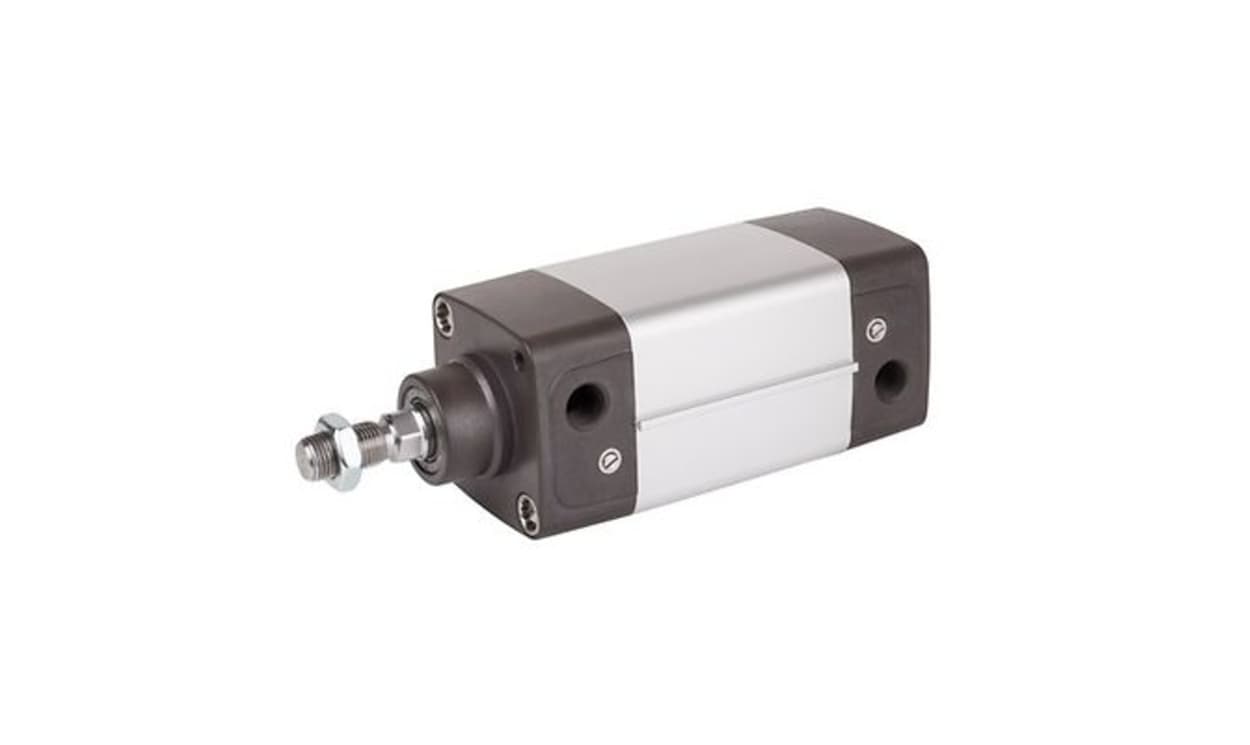

Name: AVENTICS R480060019 Pneumatic Piston Rod Cylinder - , 40mm Bore, 80mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060019
Availability: OutOfStock

Part Number : R480060019

Availability: Sold out

Detailed Description
Specifications

The Aventics Cylinders complement the PRA series in the area of hygienic design and meet all requirements for use in the food sector. A special feature is the option to configure the air connections for supply and exhaust on just the base, which increases flexibility when designing the system's tubing concept.

Stainless steel piston rod
Polyester scraper
Stainless steel tie rod
Aluminium front cover

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060019
Action	Double
Stroke	80mm
Bore	40mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
