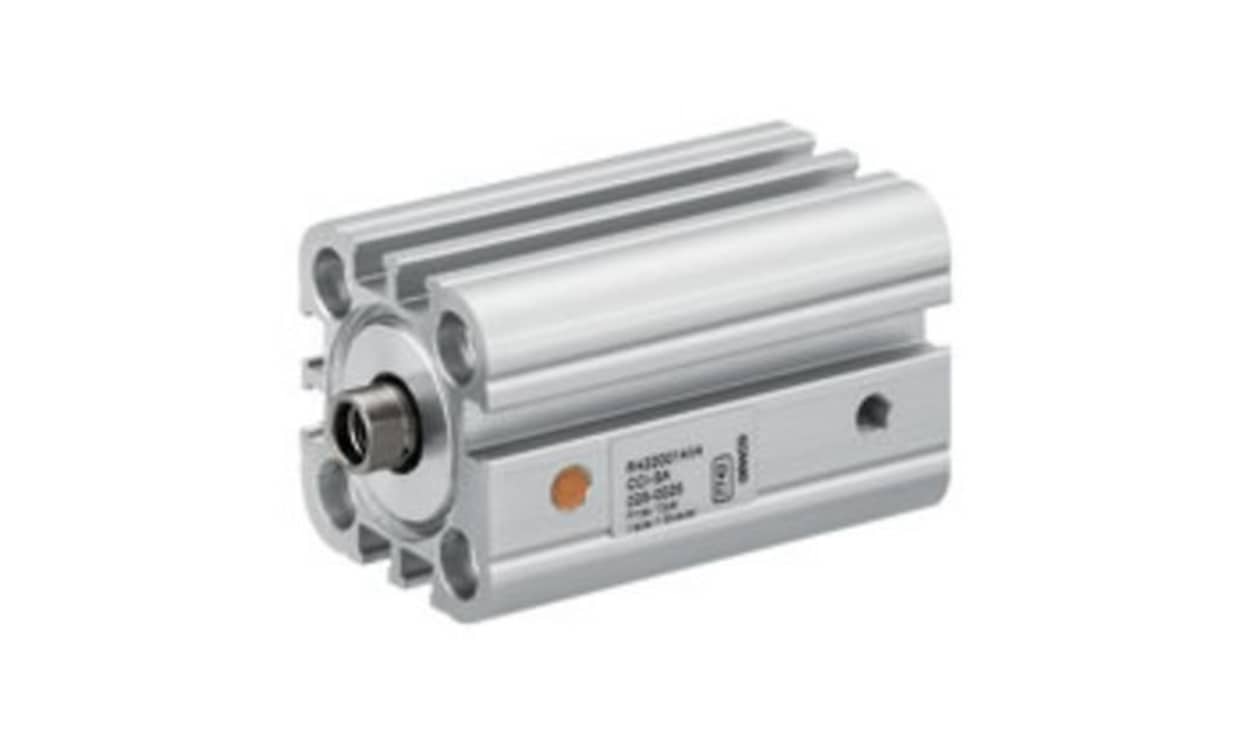

AVENTICS R422001432 Pneumatic Compact Cylinder - , 16mm Bore, 25mm Stroke, CCI Series, Single Acting

Name: AVENTICS R422001432 Pneumatic Compact Cylinder - , 16mm Bore, 25mm Stroke, CCI Series, Single Acting
Brand: Aventics
SKU: R422001432
Availability: OutOfStock

Part Number : R422001432

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder series CCI, compliant with ISO 21287, epitomises innovative engineering, offering a combination of efficient performance and a user-friendly design. Built for demanding applications, it excels in environments requiring minimal maintenance and optimised cycle times. Suitable for industries that need reliable components for automation and control, this cylinder is engineered to accommodate longer strokes while maintaining a compact size. Its design integrates seamlessly with sensors placed along the cylinder’s length, facilitating rapid installation and operation. With materials selected for durability and resilience, the series CCI is prepared to meet the rigorous demands of industrial environments, ensuring reliable performance over time.

The cylinder features an easy-to-clean design that enhances its practicality
It supports quick sensor installation from multiple angles, boosting versatility
Designed for enhanced cycle time efficiency, this cylinder caters to high-speed applications
Environmental reliability is ensured through robust construction meeting industry standards
It boasts elastic cushioning for smooth operation and reduced wear
The cylinder’s magnetic piston allows for precise control and feedback
Optimally engineered for a wide temperature range, ensuring consistent performance
Lightweight materials contribute to reduced energy consumption

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001432
Stroke	25mm
Action	Single
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
