AVENTICS R422001400 | 100 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread

Name: AVENTICS R422001400 | 100 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread
Brand: Aventics
SKU: R422001400
Availability: OutOfStock

Part Number : R422001400

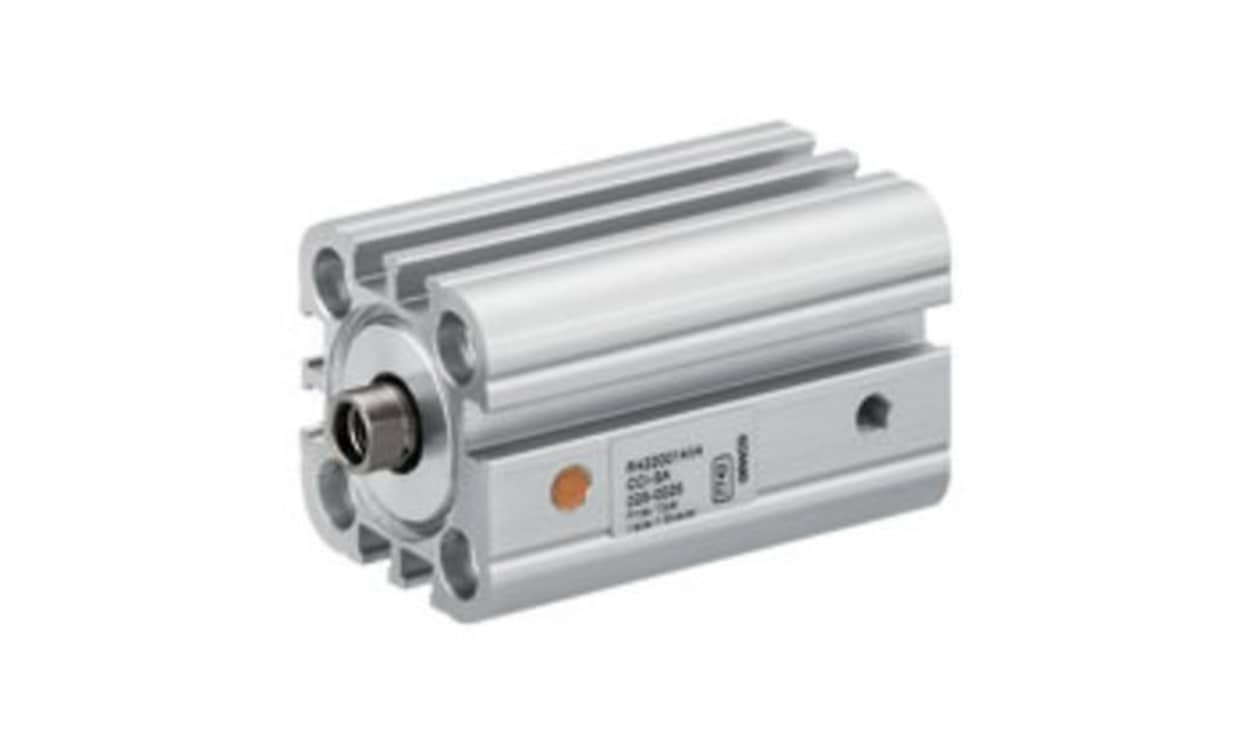

This single-acting CCI compact cylinder, AVENTICS R422001400, pairs a 5 mm stroke with a 100 mm bore. A female piston rod thread, G 1/8 pneumatic ports and elastic cushioning are specified for R422001400.

Bore x stroke: 100 x 5 mm, single acting
Rating: up to 10 bar, -20 °C to +80 °C (R422001400)
Standard of the R422001400: ISO 21287
Piston rod thread on R422001400: female
R422001400 air connection: G 1/8
Cushioning: elastic (R422001400)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CCI Compact Cylinder (ISO 21287) exemplifies cutting-edge design, merging efficiency with functionality. This innovative cylinder is tailored for industrial applications where precision and reliability are paramount. Built with a robust yet compact framework, it allows for easy installation of sensors on all sides along the full cylinder length, enhancing versatility in various operational settings. With its single-acting mechanism and elastic cushioning, it operates smoothly while meeting stringent industry standards, ensuring optimal performance even in challenging environments. The cylinder's lightweight yet durable construction further enhances its applicability across diverse manufacturing processes, making it a preferred choice among engineers and technicians alike. Its adaptability to long strokes and high-cycle demands positions it as a leader in pneumatic solutions.

Innovative design optimises space without compromising performance
Single-acting operation ensures effective retraction
Elastic cushioning protects against mechanical shocks and wear
Sensors can be fitted easily on all sides for flexible monitoring
Durable materials extend the product's lifespan in industrial settings
Suitable for a wide temperature range, accommodating various environments
Lightweight structure facilitates quicker installation and handling
Meets ISO 21287 standards, ensuring superior compliance and quality
Designed for minimal maintenance, reducing downtime in production
Conforms to stringent environmental requirements, supporting eco-friendly practices

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001400
Action	Single
Bore	100mm
Stroke	5mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001400 | 100 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread

DOWNLOAD CATALOG

R422001400 Datasheet - R422001400 A700000012575276

R422001400 Datasheet - R422001400 A700000012581272
