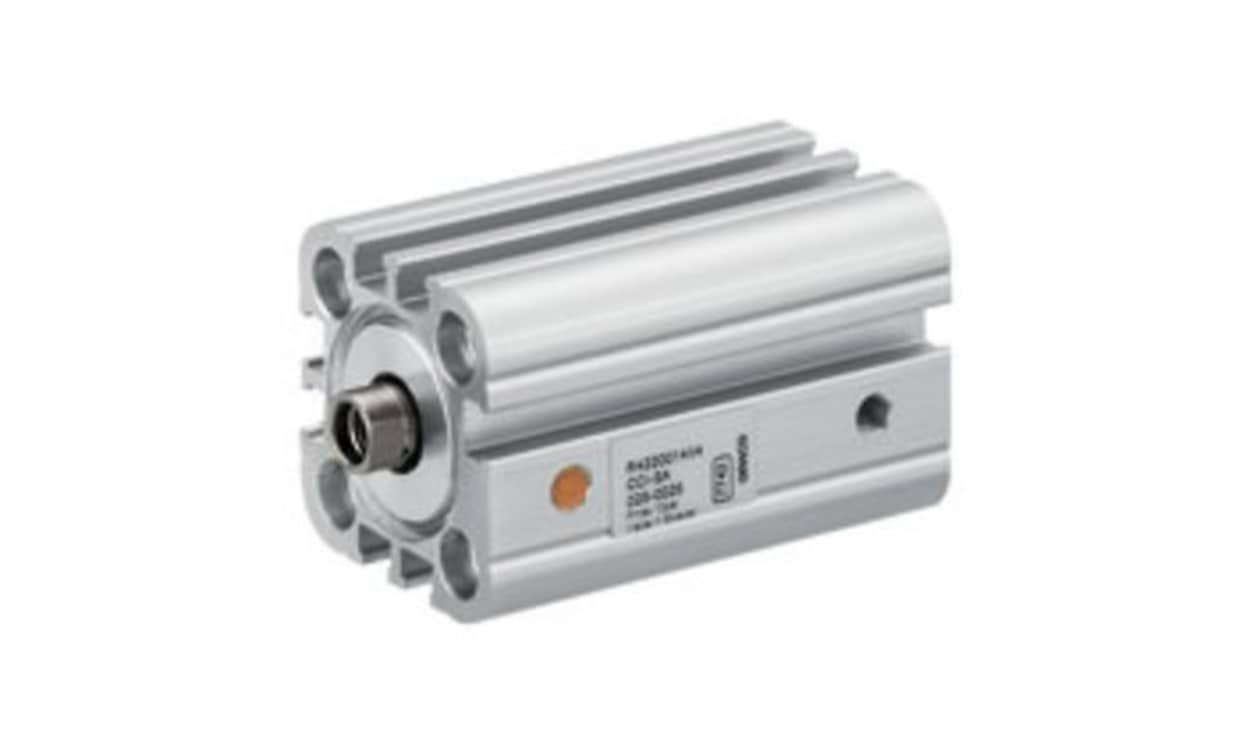

AVENTICS R422001392 | 16 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread

Name: AVENTICS R422001392 | 16 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread
Brand: Aventics
SKU: R422001392
Availability: OutOfStock

Part Number : R422001392

This single-acting CCI compact cylinder, AVENTICS R422001392, pairs a 5 mm stroke with a 16 mm bore. The 16/5 mm R422001392 has M5 air ports, a female piston rod thread and elastic cushioning, and is rated to 10 bar.

Bore x stroke of the R422001392: 16 x 5 mm, single acting
Air connection on R422001392: M5
R422001392 cushioning: elastic
Rating: up to 10 bar, -20 °C to +80 °C (R422001392)
Standard of the R422001392: ISO 21287
Piston rod thread on R422001392: female

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CCI series compact cylinder is designed with innovative engineering that prioritises both efficiency and cleanliness. This ISO 21287 compliant product excels in applications requiring long strokes and optimised cycle times, making it ideal for various industrial environments. Its unique construction not only allows for easy installation of sensors along the entire length of the cylinder, but also enhances its usability for diverse operations. With robust performance characteristics in extreme temperatures and pressures, the CCI series stands as a reliable solution, ensuring smooth functioning even under demanding conditions. This sophisticated cylinder provides a blend of functionality, versatility, and high-quality materials, meeting the essential needs of modern automation systems.

Compact design allows for efficient space utilisation
Single-acting functional principle ensures straightforward operation
Elastic cushioning offers enhanced protection against shock and wear
Magnetic piston enables quick sensor attachment
Constructed from durable materials for long-lasting performance
Broad temperature range supports varied operational environments
Lightweight composition facilitates easier handling and installation
Meets industry standards, ensuring compatibility with numerous applications
Low oil content requirements assist in maintaining hygiene standards

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001392
Stroke	5mm
Action	Single
Bore	16mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001392 | 16 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread

DOWNLOAD CATALOG

R422001392 Datasheet - R422001392 A700000012577364

R422001392 Datasheet - R422001392 A700000012580925
