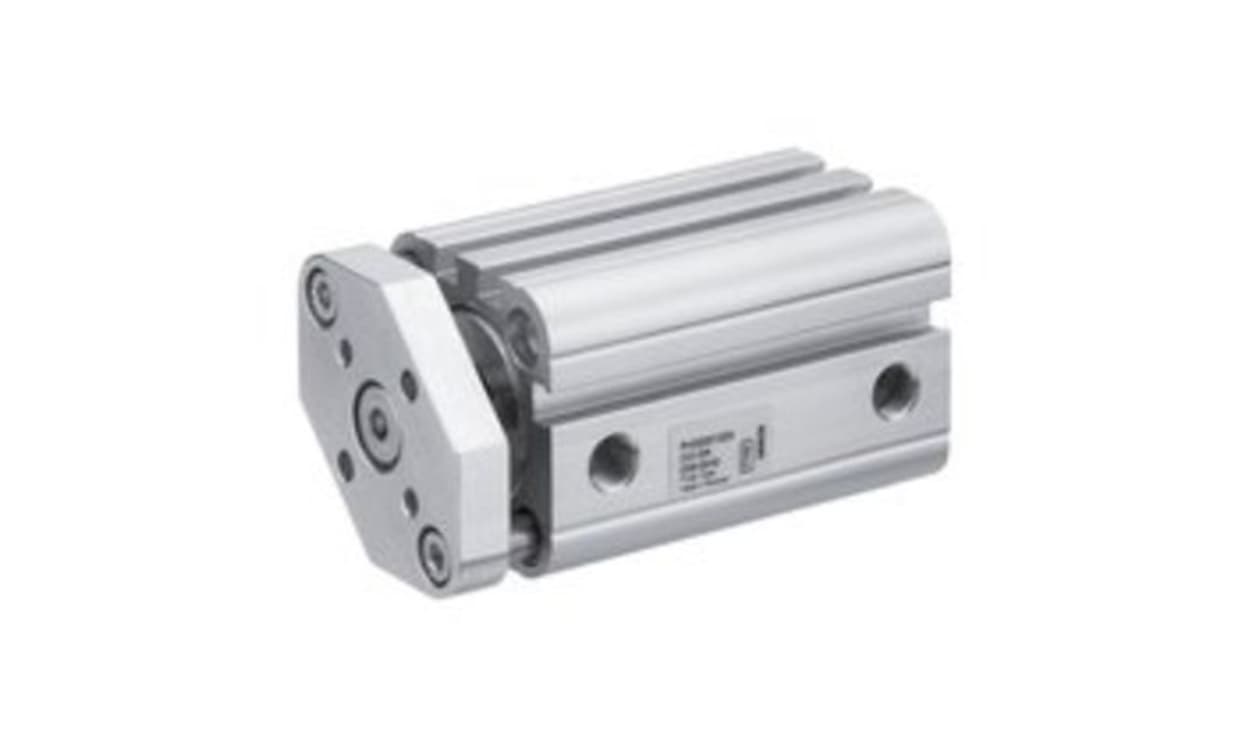

AVENTICS R422001386 Pneumatic Compact Cylinder - , 40mm Bore, 150mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001386 Pneumatic Compact Cylinder - , 40mm Bore, 150mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001386
Availability: OutOfStock

Part Number : R422001386

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder represents the pinnacle of innovative engineering, designed to meet the demanding standards of ISO 21287. With its remarkably space-efficient construction, it enhances both performance and ease of maintenance, making it ideal for applications requiring long strokes and rapid cycle times. The series CCI compact cylinder excels in handling increased mass movements with a sophisticated magnetic piston design that allows for swift sensor installation. Optimal for industrial environments, this cylinder ensures a high degree of reliability and efficiency, making it a preferred choice for professionals seeking advanced pneumatic solutions.

Offers a double-acting functional principle for versatile application
Constructed with elastic cushioning for smooth and controlled operation
Designed for ease of cleaning, supporting hygienic environments
Features a non-rotating piston rod for consistent performance during operation
Equipped with standard industry scrapers to enhance durability and longevity
Provides an optional ATEX rating for use in potentially explosive environments
Utilises high-quality materials such as aluminium and stainless steel, ensuring robustness
Accommodates a wide working temperature range for diverse industrial settings
Maximises operational efficiency with a low minimum working pressure

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001386
Stroke	150mm
Bore	40mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
