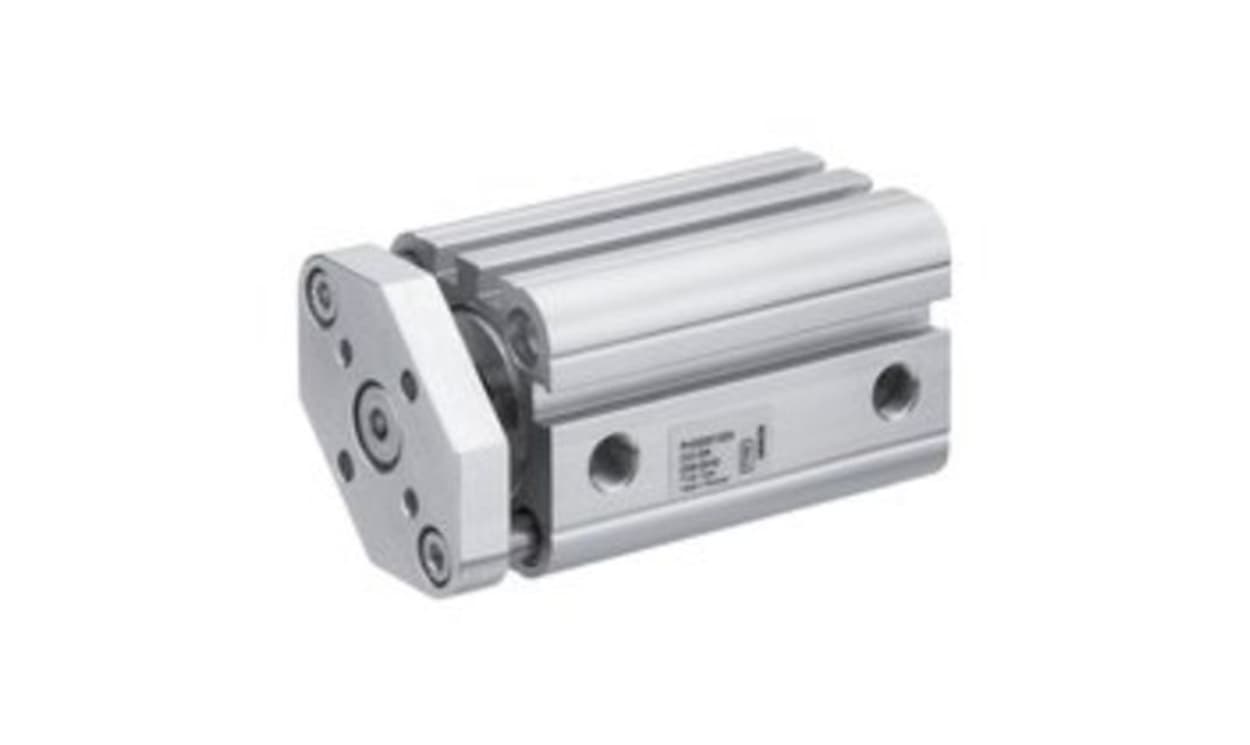

AVENTICS R422001385 Pneumatic Compact Cylinder - , 32mm Bore, 150mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001385 Pneumatic Compact Cylinder - , 32mm Bore, 150mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001385
Availability: OutOfStock

Part Number : R422001385

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder is engineered to deliver high performance within limited spaces, ideal for applications requiring precision and efficiency. With its ISO 21287 compliance, this product provides innovative design that simplifies cleaning and maintenance, making it a perfect choice for industrial environments. The versatile installation of sensors along the entire length enhances operational flexibility, ensuring optimal cycle times and minimal moving mass. Its robust construction, featuring materials such as stainless steel and aluminium, guarantees durability while meeting stringent environmental and operational standards. This cylinder is specifically designed to operate effectively under a wide range of temperatures and pressures, catering to diverse industrial needs.

Compact design allows integration into tight spaces for various applications
Double-acting mechanism enhances operational efficiency
Elastic cushioning provides smooth operation and reduces wear
Integrated magnetic piston supports reliable sensor installation
Robust aluminium and stainless steel construction maximises longevity
Wide operating temperature range ensures versatility in different environments
Easy maintenance simplifies upkeep and reduces downtime
ATEX certification option available for use in potentially explosive atmospheres

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001385
Stroke	150mm
Action	Double
Bore	32mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001385 Pneumatic Compact Cylinder - , 32mm Bore, 150mm Stroke, CCI Series, Double Acting

DOWNLOAD CATALOG

R422001385 Datasheet - R422001385 A700000012577281

R422001385 Datasheet - R422001385 A700000012580831
