AVENTICS R422001378 Pneumatic Compact Cylinder - , 63mm Bore, 125mm Stroke, CCI Series, Double Acting

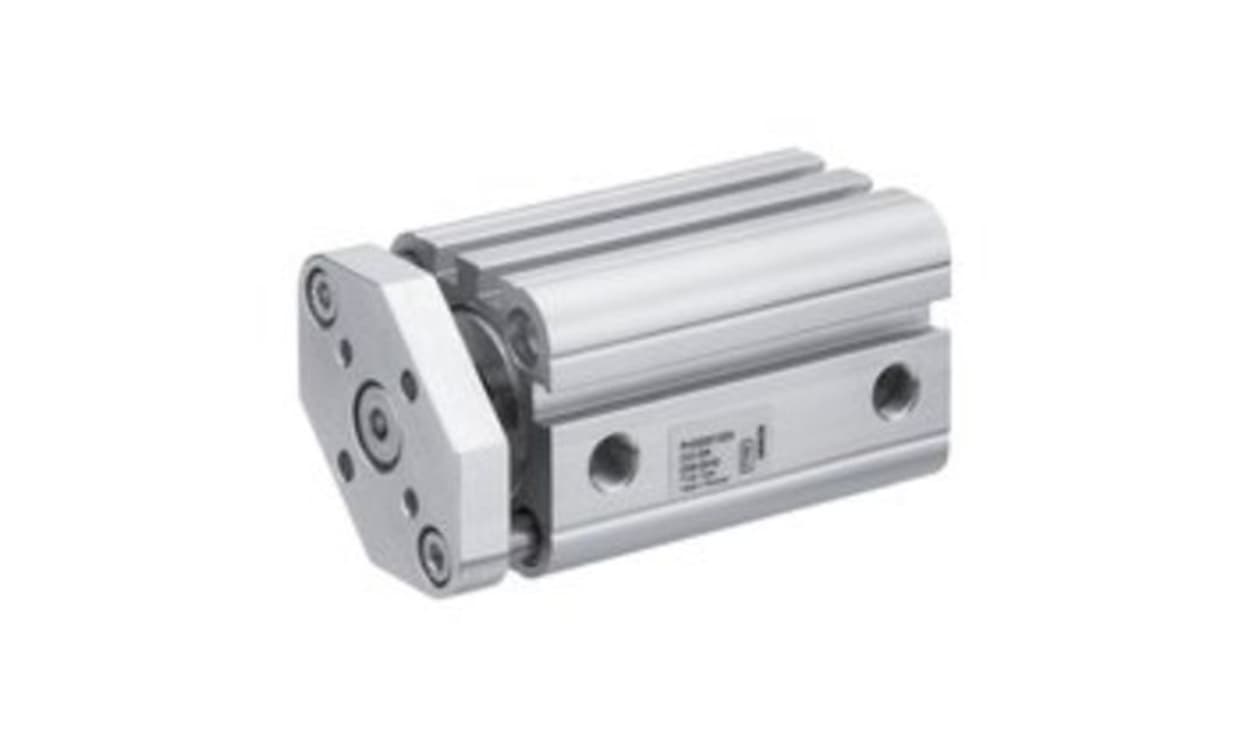

Name: AVENTICS R422001378 Pneumatic Compact Cylinder - , 63mm Bore, 125mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001378
Availability: OutOfStock

Part Number : R422001378

Availability: Sold out

Detailed Description
Specifications

The Aventics series CCI compact cylinder combines innovative design with high functionality, tailored to meet the demands of industrial applications. With its ISO 21287 certification, this cylinder ensures reliable performance and durability, making it an ideal choice for settings requiring precise and efficient motion control. Designed for quick and easy sensor installation along its length, the cylinder supports optimised cycle times, accommodates long strokes, and enhances operational efficiency. The series CCI is not only compact but also easy to clean, ensuring its suitability for various environments, including those with stringent hygiene requirements. With an extensive range of technical specifications, this cylinder provides unmatched versatility, successfully addressing a variety of motion requirements in industrial automation.

Innovative compact construction for space-saving installations
ISO 21287 compliant for guaranteed international standards
Designed for both long strokes and improved cycle times
Sensors can be installed quickly on any side of the cylinder
Double-acting functional principle enhances effectiveness
Elastic cushioning for smooth operation and gentle stops
Integrated magnetic piston for reliable sensor feedback
Robust materials ensure longevity and reliability
Operating temperature range supports diverse working environments
Minimised maintenance needs due to optimal design features

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001378
Action	Double
Bore	63mm
Stroke	125mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
