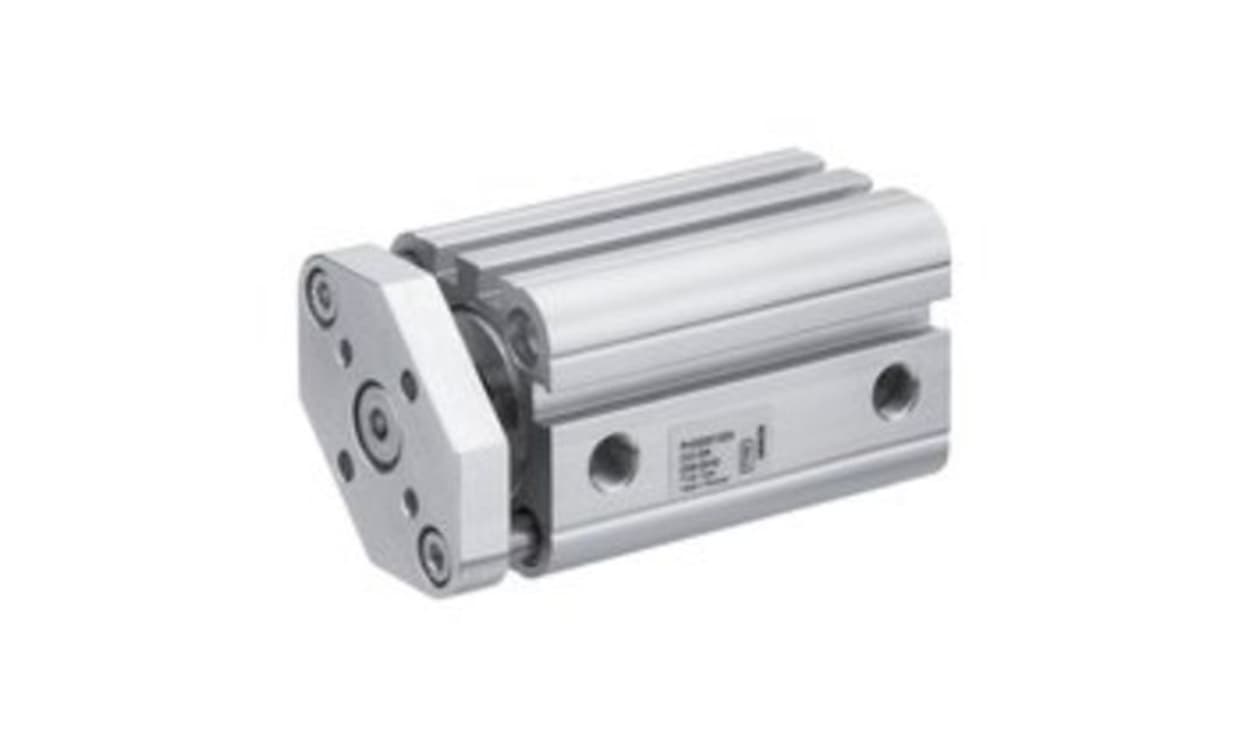

AVENTICS R422001376 Pneumatic Compact Cylinder - , 40mm Bore, 125mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001376 Pneumatic Compact Cylinder - , 40mm Bore, 125mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001376
Availability: OutOfStock

Part Number : R422001376

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder, designed in accordance with ISO 21287 standards, exemplifies innovative engineering and streamlined design, making it an ideal choice for demanding industrial applications. The Series CCI cylinders are built to support long strokes, optimised cycle times, and the management of significant moving masses. Its easy-to-clean construction is complemented by user-friendly sensor installation throughout the entire cylinder length, resulting in enhanced operational efficiency. The Series CCI is engineered to perform reliably in various atmospheric conditions, thereby meeting both industrial and ATEX requirements.

Innovative, compact construction optimises space utilisation
Designed for easy maintenance, enhancing operational efficiency
Handles increased demands for stroke and speed, ideal for high-performance applications
Accommodates dual-acting functionality for versatile operations
Manufactured with robust materials for durability and longevity
Non-rotating piston rod ensures precise motion control
Cylinders are suitable for a wide temperature range, from -20 °C to 80 °C
Optional ATEX certification for applications in explosive environments
Elastic cushioning technology for smoother operations and reduced wear
Multiple diameter options available to cater to varied industrial needs

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001376
Stroke	125mm
Action	Double
Bore	40mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001376 Pneumatic Compact Cylinder - , 40mm Bore, 125mm Stroke, CCI Series, Double Acting

DOWNLOAD CATALOG

R422001376 Datasheet - R422001376 A700000012577226

R422001376 Datasheet - R422001376 A700000012580767
