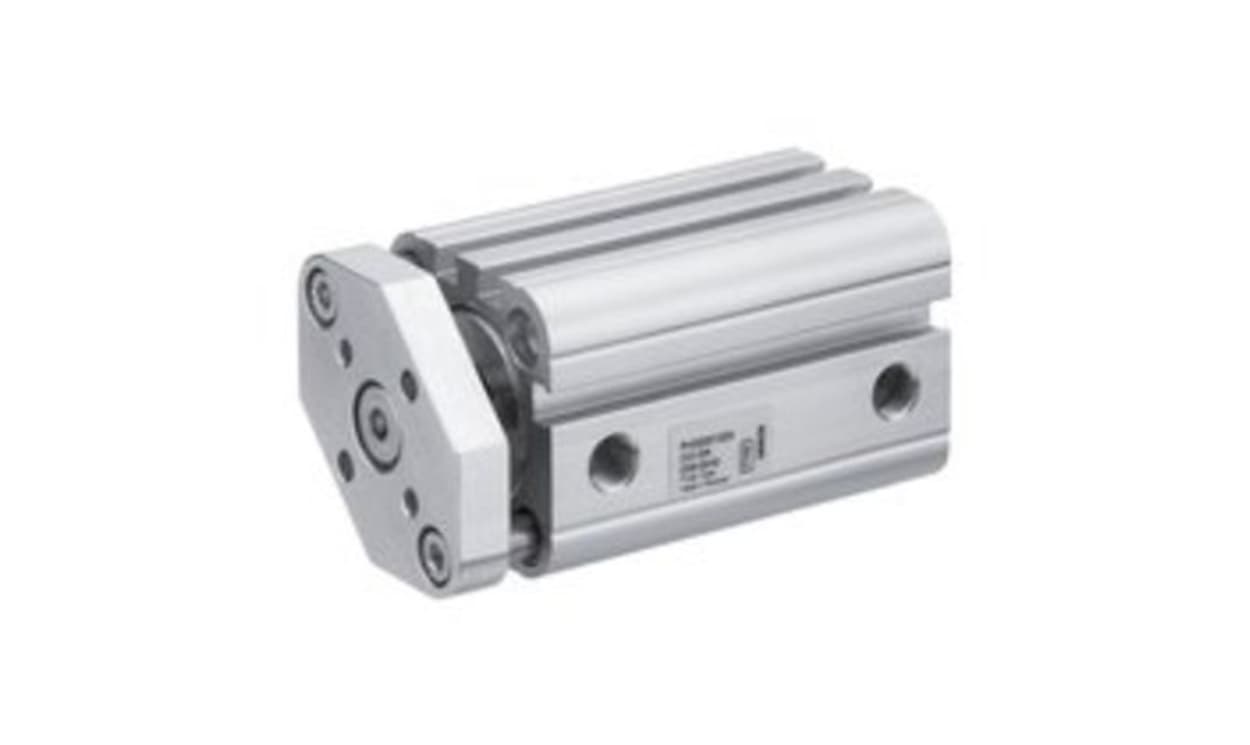

AVENTICS R422001359 Pneumatic Compact Cylinder - , 80mm Bore, 80mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001359 Pneumatic Compact Cylinder - , 80mm Bore, 80mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001359
Availability: OutOfStock

Part Number : R422001359

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder, designed in accordance with ISO 21287, epitomises innovation and efficiency in automation applications. This meticulously crafted cylinder boasts a compact design, making it ideal for installations with space constraints. Its robust construction not only enhances durability but also ensures easy maintenance, owing to a design that facilitates effortless cleaning. With its ability to deliver optimal cycle times and accommodate long strokes, the Series CCI excels in performance while meeting increased demands. The versatility in sensor installation allows for custom configurations along the entire cylinder length, providing unmatched adaptability for various industrial environments.

Compact design enhances installation flexibility in constrained spaces
Robust construction ensures longevity and reduces maintenance costs
Effortless cleaning design supports hygienic operation
Optimised for extended strokes, improving efficiency in dynamic applications
Easy sensor installation provides flexibility for future modifications
Double-acting functionality enhances performance versatility
Elastic cushioning enhances operational smoothness and noise reduction
Optional ATEX certification for use in explosive atmospheres
Standardised components streamline replacement and service procedures
Built to withstand extreme temperatures, accommodating a wide operational range

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001359
Action	Double
Stroke	80mm
Bore	80mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
