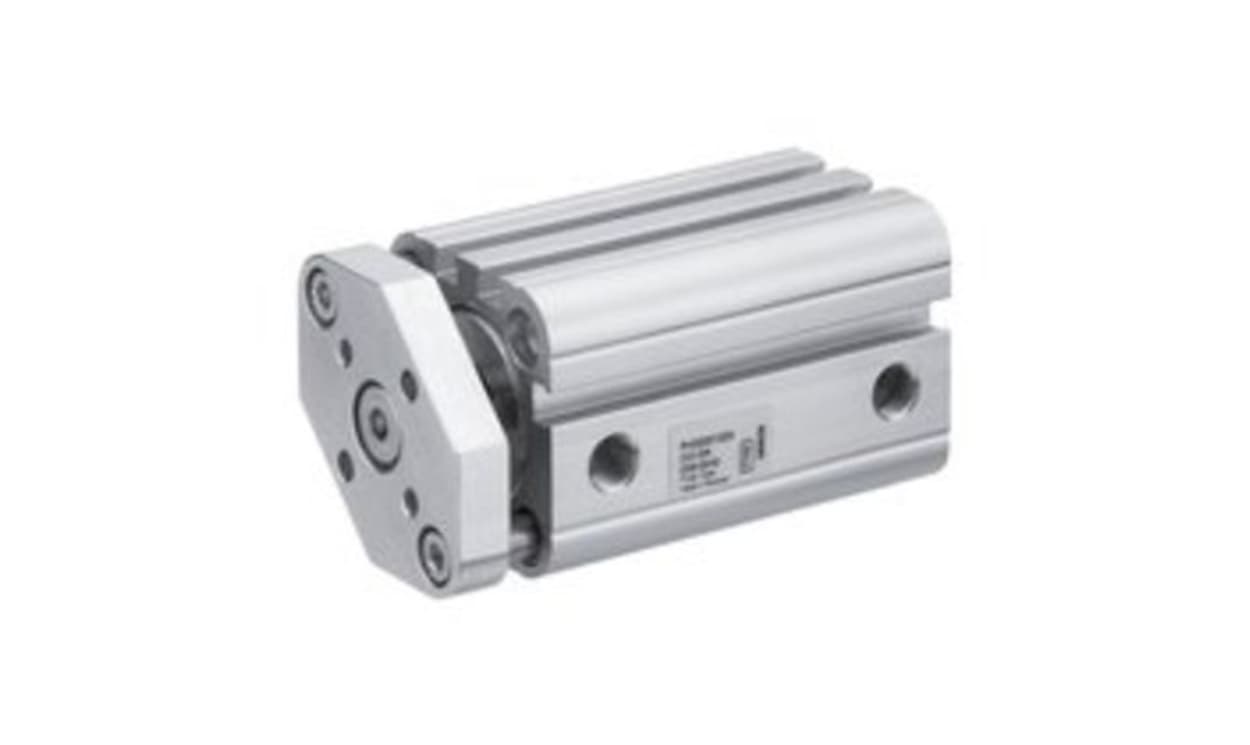

AVENTICS R422001324 Pneumatic Compact Cylinder - , 25mm Bore, 40mm Stroke, CCI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R422001324 Pneumatic Compact Cylinder - , 25mm Bore, 40mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001324 Pneumatic Compact Cylinder - , 25mm Bore, 40mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001324
Availability: OutOfStock

Part Number : R422001324

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder (ISO 21287) represents the pinnacle of innovation and design in the realm of actuators. Renowned for its compact yet robust construction, this cylinder effortlessly meets the demands of diverse industrial applications. Its easy-to-clean features enhance hygiene and efficiency, making it an ideal choice for environments with stringent cleanliness requirements. The Series CCI is tailored for long stroke lengths and optimised cycle times, ensuring that performance is never compromised. With sensors that can be swiftly installed along the entire length of the cylinder, reliability and adaptability come standard. Designed for double-acting functionality, this cylinder not only boasts an elastic cushioning mechanism for smooth operation but is also available with ATEX certification, making it suitable for hazardous environments.

Compact design ideal for applications with space constraints
Easy-to-clean construction that promotes operational efficiency
Suitable for long strokes, addressing increased operational demands
Sensors can be fitted quickly and easily for enhanced adaptability
Double-acting operation ensures powerful performance
Elastic cushioning enables smooth and controlled movements
Optional ATEX certification allows use in challenging environments
Wide range of temperature tolerances for diverse industrial applications
Quality materials like stainless steel and aluminium ensure durability
Designed to maintain optimal air quality for operational effectiveness

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001324
Bore	25mm
Stroke	40mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
